AXW40 INA

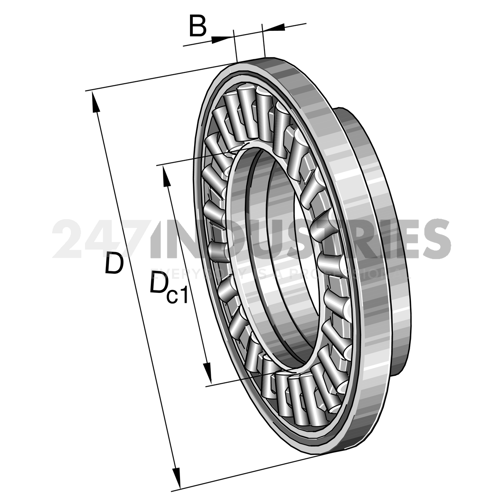

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 63
3. Width (B) MM 4,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4803
6. Width (B) Inch 0.1654
7. Outside diameter bearing washer (D) mm 63
8. Height bearing (B) mm 4,2

Technical details

1. Availability 254 pcs
2. Brand INA
3. Item number AXW40 INA
4. Also known as 0001621240000

5. EAN 4012802432442
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.03

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C) 28000
2. Axial Static Load Rating C0a (N) 114000
3. Axial Dynamic Load Rating Ca (N) 28000
4. Limiting speed (n G) 5800
5. Reference speed (n ϑr) 2800
6. ECLASS number 23-05-11-02
7. ECLASS2 number 23-05-11-02

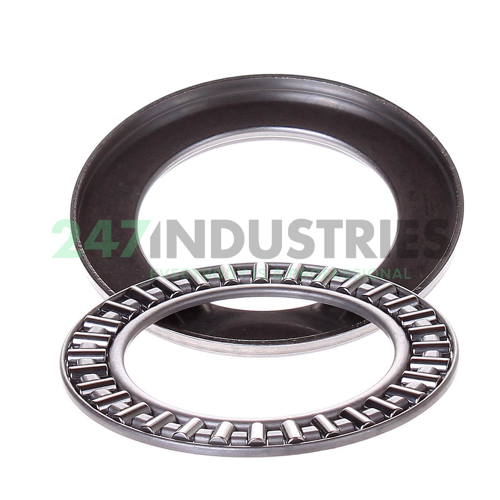

8. Medias description Axial needle roller bearings, single direction, AXK with axial bearing washer

Downloads and links

1. Link to manufacturer Link to manufacturer
