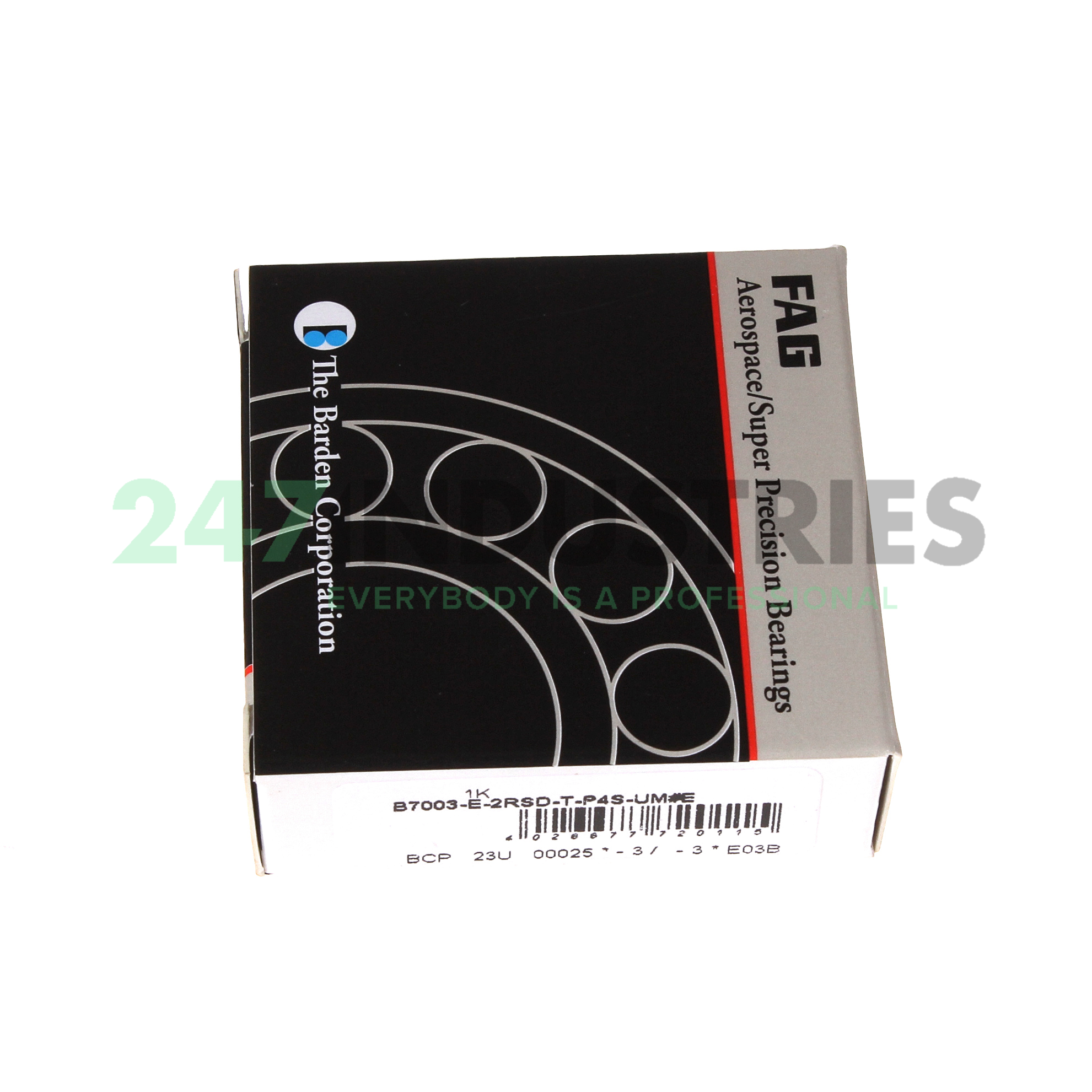

B7003-E-2RSD-T-P4S-UM FAG

B spindle bearing with large steel balls

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number B7003-E-2RSD-T-P4S-UM FAG
Inside diameter 17mm
Outside diameter 35mm
Width 10mm
Product description

The B7003-E-2RSD-T-P4S-UM FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.

FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.

Read more Show less
Help with this product

Downloads and links

Similar to: B7003-E-2RSD-T-P4S-UM FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 35
  3. Width (B) MM 10
  4. Inner (d) Inch 0.6693
  5. Outer (D) Inch 1.378
  6. Width (B) Inch 0.3937
  7. Width (b) mm 10

Suffix description

  1. E 25° Contact Angle
  2. 2RSD Lip Seals On Both Sides, Non-Contact
  3. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  4. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  5. UM Single Bearing, Universal, Medium Preload

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number B7003-E-2RSD-T-P4S-UM FAG
  4. Also known as 0386154100000
  5. EAN 4026677720115
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.04

Product Properties

  1. Seal 2RU - Two Seals / Non Contact Type
  2. Cage Type TB - Hard Fiber Cage
  3. Precision P4S Precision (Higher than P4)
  4. Contact Angle 25 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UM - Universal design for fitting in pairs, bearing pair has medium preload in O and X arrangements
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 3350
  2. Limiting speed for grease lubrication (n G Grease) 43000
  3. ECLASS number 23-05-08-03
  4. ECLASS2 number 23-05-08-03
