Name: B7017-C-T-P4S-K5-UL FAG
Brand: FAG

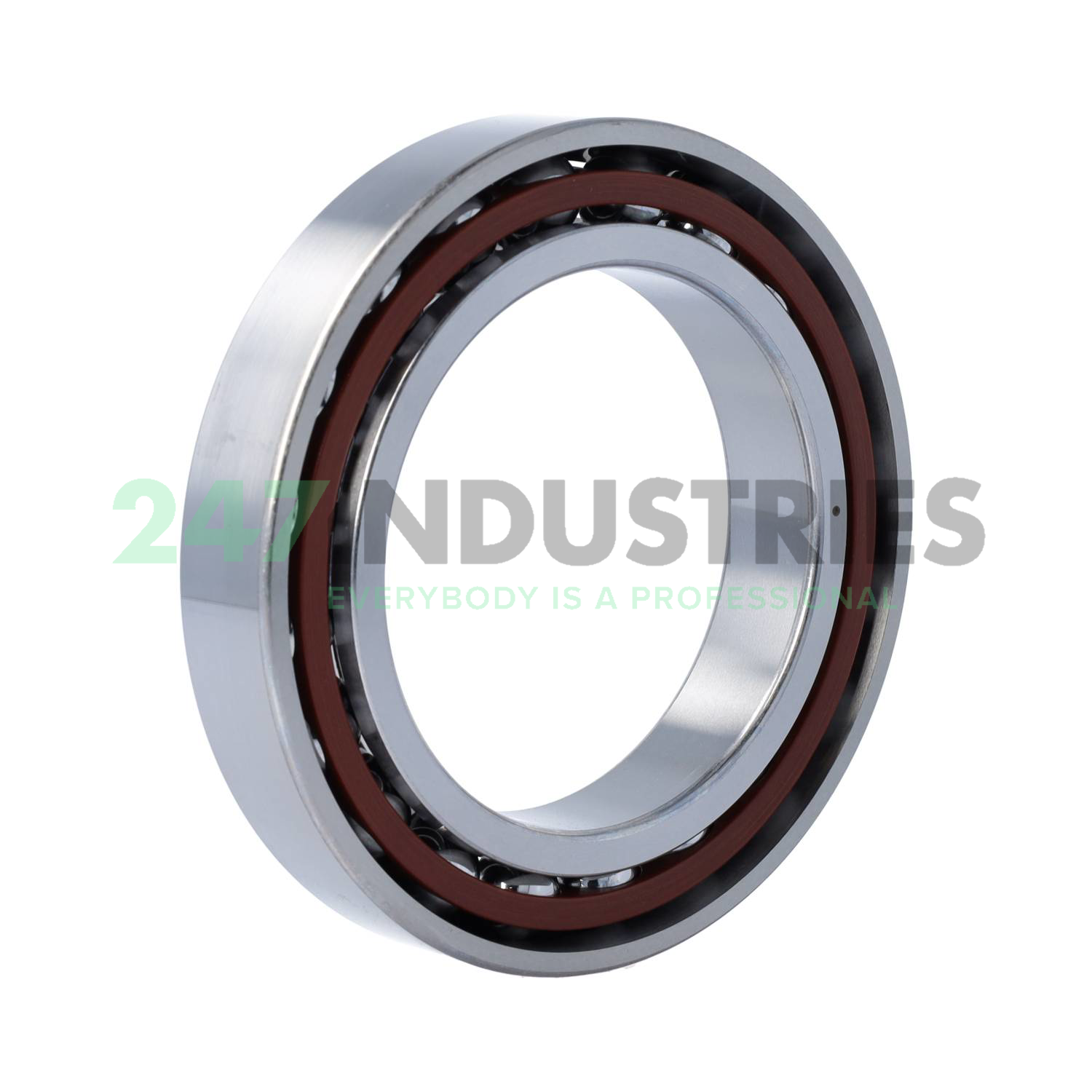

B7017-C-T-P4S-K5-UL FAG

B spindle bearing with large steel balls

Stock

4 pcs available

Brand

FAG

Article number

B7017-C-T-P4S-K5-UL FAG

Outside diameter

130mm

Width

22mm

Product description

The B7017-C-T-P4S-K5-UL FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.

FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.

Product specifications

Outside diameter 130mm
Width 22mm

All dimensions

Outer (D) MM 130
Width (B) MM 22
Width (B) Inch 0.8661

Suffix description

C 15° Or 17° Contact Angle
T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4S-K5 Combination Of P4S (Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9) And K5 (Same as P4S But With Mean Sorting Of Bore And Outside Diameter)
UL Single Bearing, Universal, Light Preload

Technical details

Availability 4 pcs
Brand FAG
Item number B7017-C-T-P4S-K5-UL FAG
Also known as 0191519930000
EAN 4012801451444
Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

Weight (kg) 0.88

Product Properties

Seal No Seal
Cage Type TB - Hard Fiber Cage
Precision K5 - P4S + K5
Contact Angle 15 degrees
Pairing G - Universal Pairing
Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
Lubrication Standard Lubrication

Data from Schaeffler (medias)

Medias description Spindle bearings B70..-C, adjusted, in pairs or sets, contact angle a = 15°, restricted tolerances

Show all details
