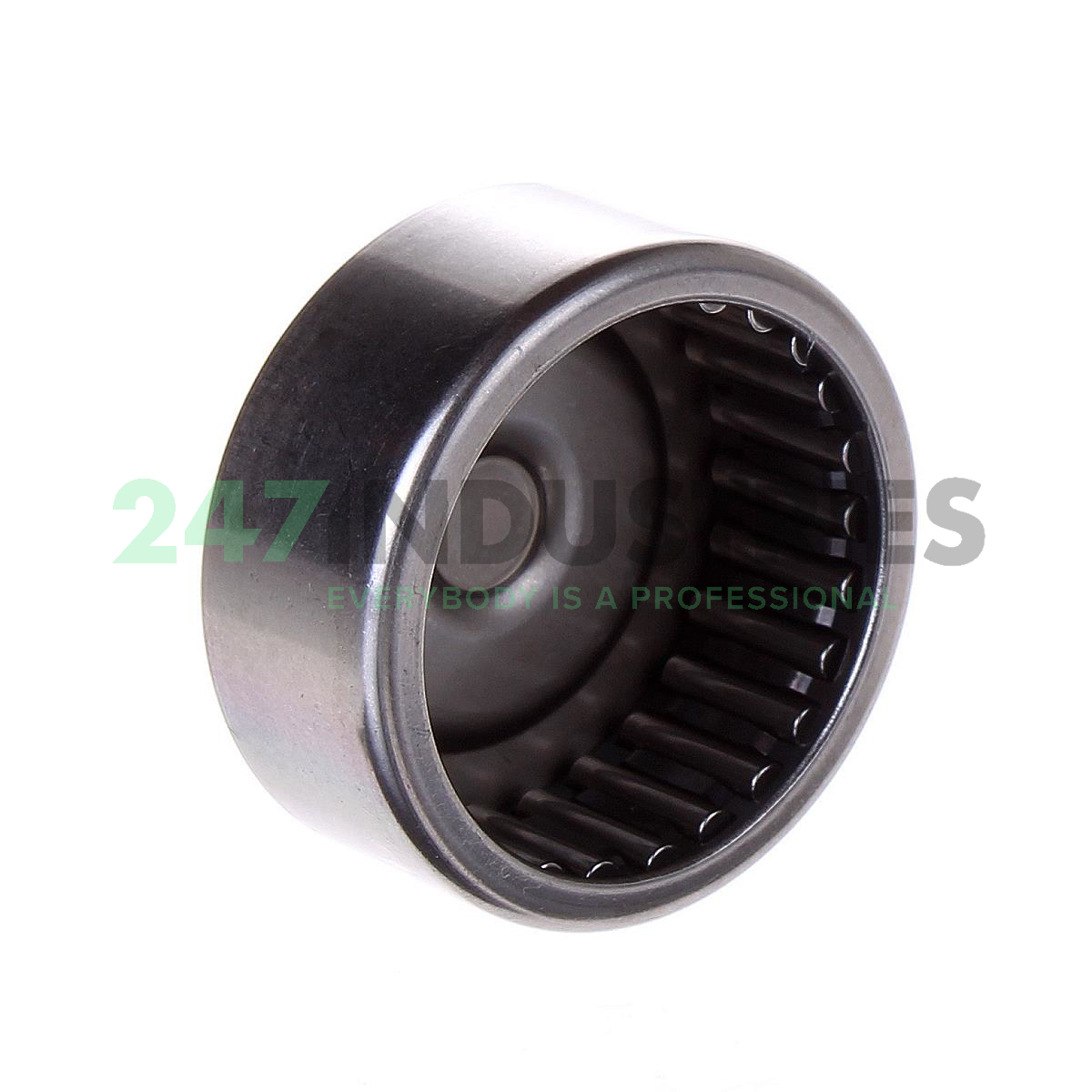

BK3016 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 37
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 30

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 78 pcs
2. Brand INA
3. Item number BK3016 INA
4. Also known as 0001771720000

5. EAN 4012802424935
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.041

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 17200
3. Basic static load rating, radial (C 0r) "29000.0000"
4. Limiting speed (n G) 8600
5. Limiting speed for grease lubrication (n G Grease) 5200
6. Reference speed (n ϑr) 6400
7. ECLASS number 23-05-09-06
8. ECLASS2 number 23-05-09-06
9. Medias description Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
