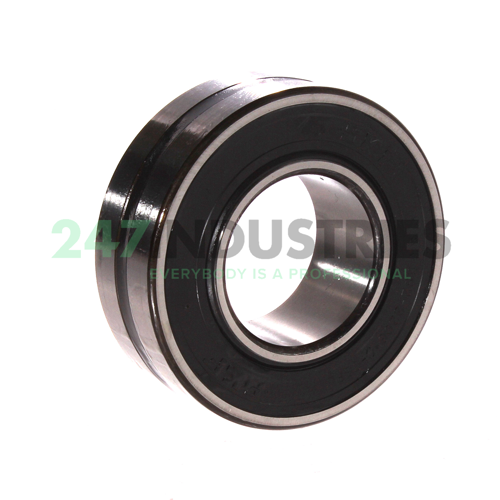

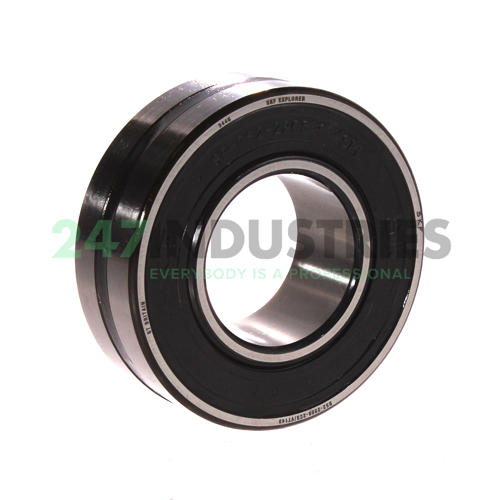

BS2-2208-2CS/VT143 SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 28
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.1024

Suffix description

1. 2CS Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing. Annular Groove And Three Lubrication Holes In The Outer Ring Covered With A Polymer Band. Lubricated With An Extreme Pressure Bearing Grease According To Temperature Range -20 ~ 110℃, Grease Fill 25% To 35%
2. VT143 Extreme Pressure Grease. Grease Fill 25 to 35% With SKF LGEP2 Grease

Technical details

1. Availability 10 pcs
2. Brand SKF
3. Item number BS2-2208-2CS/VT143 SKF
4. Also known as BS2-2208-2RS/VT143
   WS22208-E1-2RSR
   WS22208-E1-XL-2RSR

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.57

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision VT - Extreme Pressure Grease, LGEP2
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
