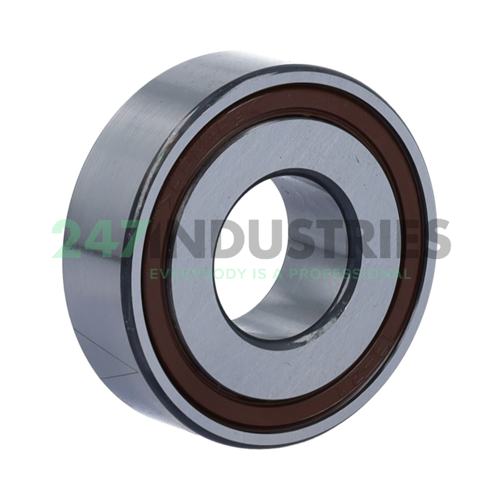

BSB2047-2Z-SU-XL FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. 2Z Sealed On Both Sides With Friction-Free Minimal Gaps Seals Made From FKM, Greased
2. SU Single Bearing
3. XL X-Life

Technical details

1. Availability 41 pcs
2. Brand FAG
3. Item number BSB2047-2Z-SU-XL FAG
4. Also known as 0952303940000

5. EAN 4054372598852
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) 28500
2. Basic static load rating, axial (C 0a) 47000
3. Limiting speed for grease lubrication (n G Grease) 8700
4. Thermally safe operating speed (n ϑ) 6200
