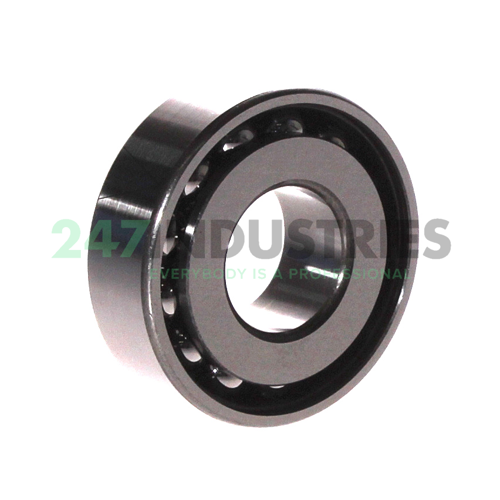

BSB2047-SU-XL FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. SU Universal Bearing; Single Bearings Can Be Used In Sets In Any Combination Required
2. XL X-Life

Technical details

1. Availability 30 pcs
2. Brand FAG
3. Item number BSB2047-SU-XL FAG
4. Also known as 0952303780000
   BSB2047-SU

5. EAN 4054372598845
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) 28500
2. Basic static load rating, axial (C 0a) 47000
3. Limiting speed for grease lubrication (n G Grease) 8700
4. Thermally safe operating speed (n ϑ) 6200
