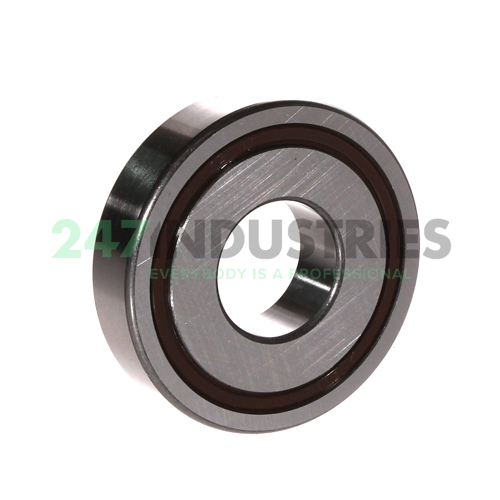

BSB2562-2Z-SU FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. 2Z Sealed On Both Sides With Friction-Free Minimal Gaps Seals Made From FKM, Greased
2. SU Single Bearing

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number BSB2562-2Z-SU FAG
4. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.24

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 64000
2. Axial Dynamic Load Rating Ca (N) 29000
3. Limiting speed for grease lubrication (n G Grease) 6700
4. Thermally safe operating speed (n ϑ) 5400
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Axial angular contact ball bearing BSB..-2Z-SU, single direction, no screw mounting
