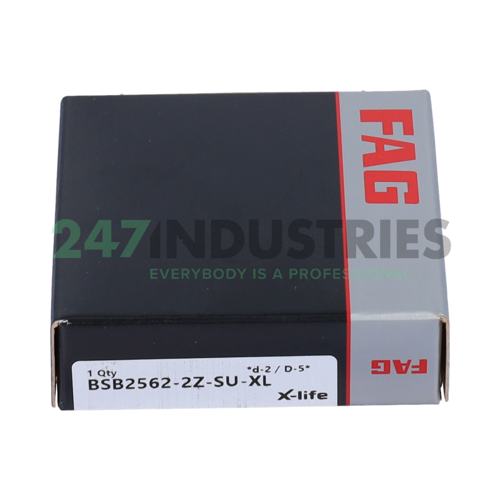

BSB2562-2Z-SU-XL FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. 2Z Sealed On Both Sides With Friction-Free Minimal Gaps Seals Made From FKM, Greased
2. SU Single Bearing
3. XL X-Life

Technical details

1. Availability 39 pcs
2. Brand FAG
3. Item number BSB2562-2Z-SU-XL FAG
4. Also known as 0952306100000

5. EAN 4054372597947
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.24

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) 32000
2. Basic static load rating, axial (C 0a) 64000
3. Limiting speed for grease lubrication (n G Grease) 6700
4. Thermally safe operating speed (n ϑ) 5400
