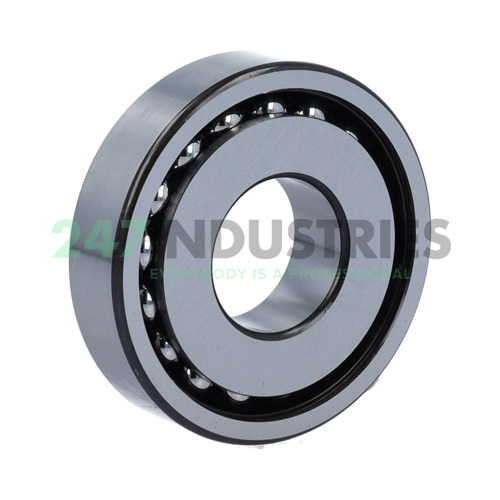

BSB2562-SU-XL FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. SU Universal Bearing; Single Bearings Can Be Used In Sets In Any Combination Required
2. XL X-Life

Technical details

1. Availability 25 pcs
2. Brand FAG
3. Item number BSB2562-SU-XL FAG
4. Also known as 0952304080000
   BSB2562-SU

5. EAN 4054372597930
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.24

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) 32000
2. Basic static load rating, axial (C 0a) 64000
3. Limiting speed for grease lubrication (n G Grease) 6700
4. Thermally safe operating speed (n ϑ) 5400

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
