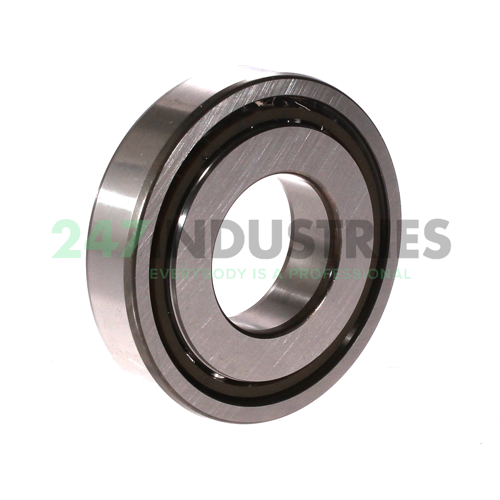

BSD4090CGA SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874

Suffix description

1. C Improved Internal Design
2. G Bearing For Universal Matching
3. A Light Preload

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number BSD4090CGA SKF
4. Also known as BSB040090-T

5. EAN 7316570515176
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.625

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Standard Precision
