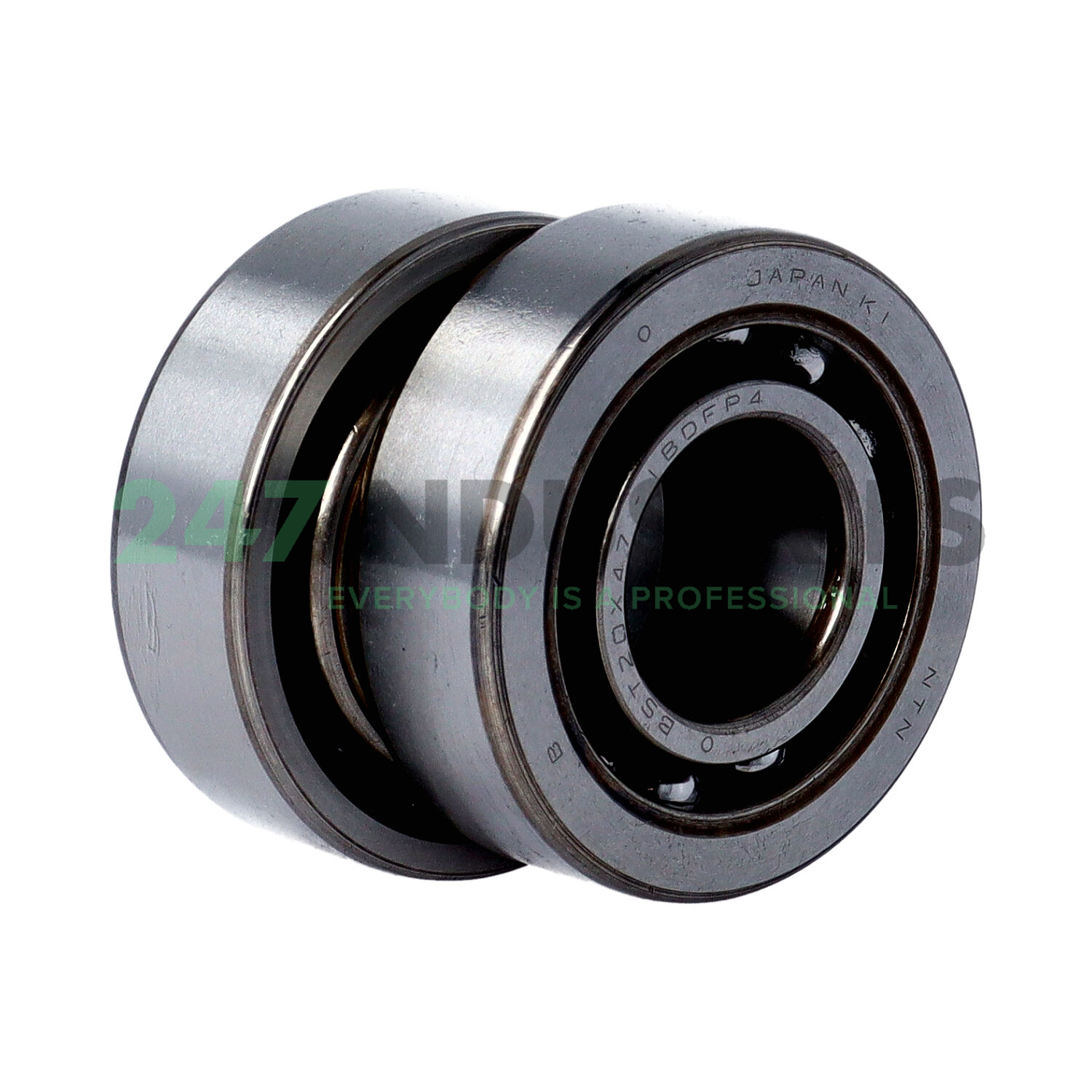

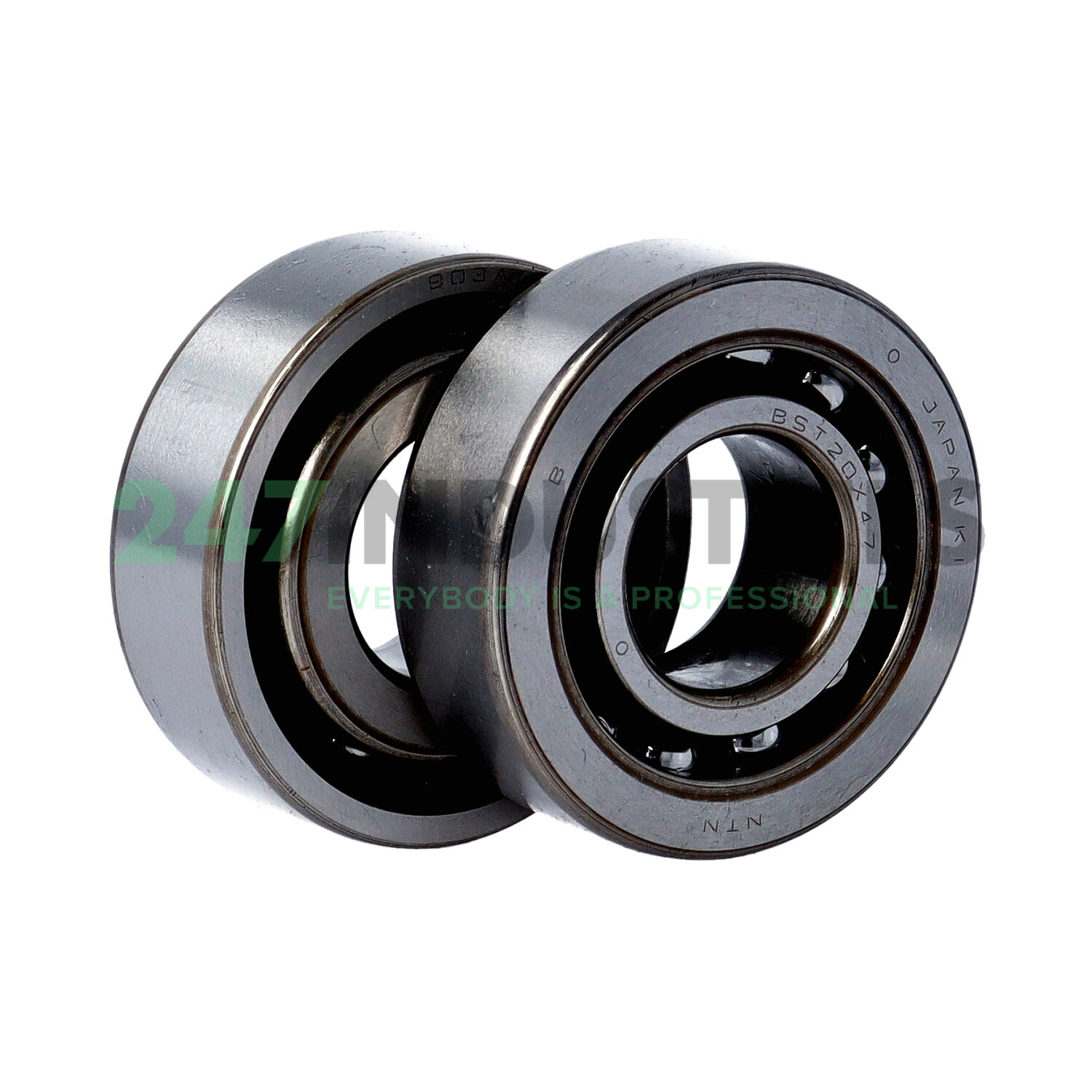

BST20X47-1BDFP4 NTN

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 30
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811

Suffix description

1. 1B Identification Code, Standard Preload
2. DF Two Single Row Angular Contact Ball Bearings Matched For Mounting In A Face-To-Face Arrangement
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7

Technical details

1. Availability 1 pc
2. Brand NTN
3. Item number BST20X47-1BDFP4 NTN
4. EAN 4547359032796
5. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.243

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P4 Precision (Higher than P5)
