CSCB040-HLE INA

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 117,48
3. Width (B) MM 7,94
4. Inner (d) Inch 4
5. Outer (D) Inch 4.625
6. Width (B) Inch 0.3125
7. Width (b) mm 7,938

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number CSCB040-HLE INA
4. Also known as 0047764290000
   6000046

5. EAN 4054362037200
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.124

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6900
2. Radial Dynamic Load Rating Cr (N) 6100
3. Basic static load rating, radial (C 0r) "6900.0000"
4. Limiting speed (n G) 5300
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01

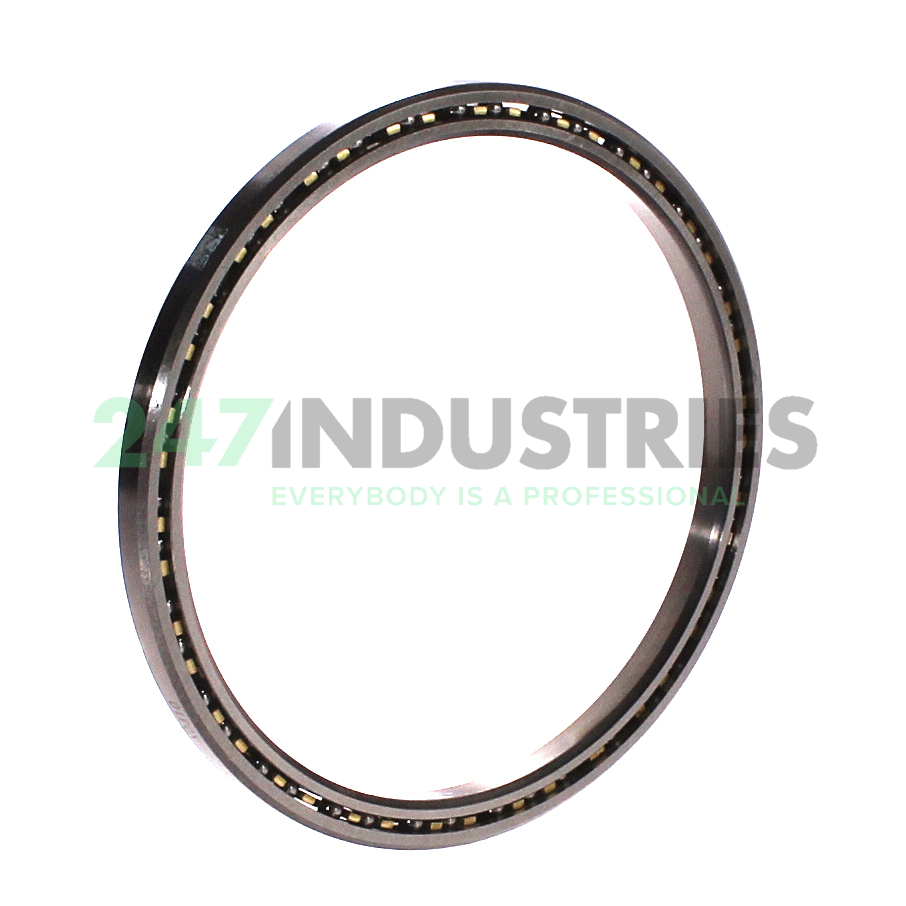

7. Medias description Thin Section Bearing CSCB, deep groove ball bearing
