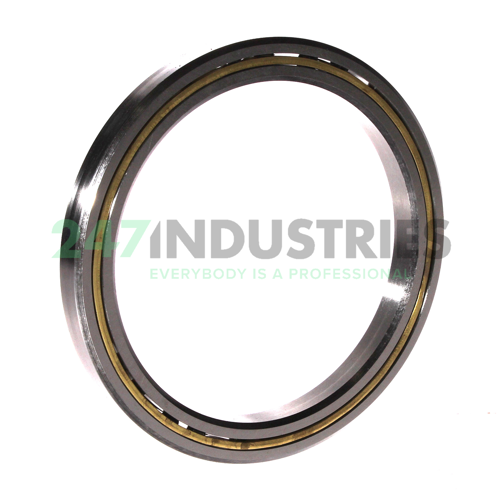

CSCD040-HLE INA

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 127
3. Width (B) MM 12,7
4. Inner (d) Inch 4
5. Outer (D) Inch 5
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSCD040-HLE INA
4. Also known as 0833076800000
   FPCD400
   KD040CP0
   KD040CPO
   L10TA400
   NBC10112

5. EAN 4054364931520
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.327

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 11900
2. Limiting speed (n G) 4900
