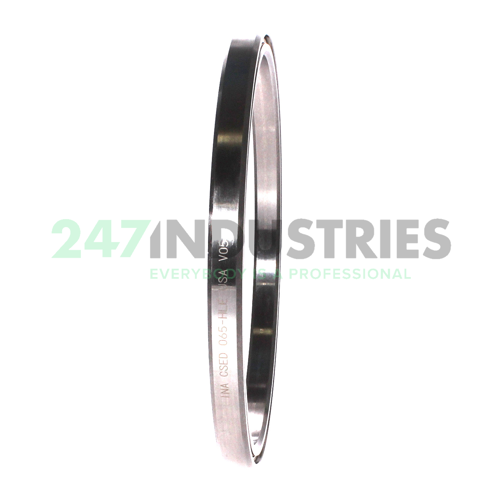

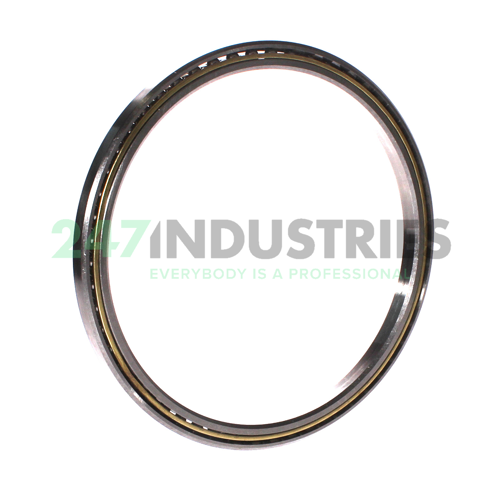

CSED065-HLE INA

All dimensions

1. Inner (d) MM 165,1
2. Outer (D) MM 190,5
3. Width (B) MM 12,7
4. Inner (d) Inch 6.5
5. Outer (D) Inch 7.5
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSED065-HLE INA
4. Also known as 0038028500000
   6000046
   FPAD608
   KD065ARO
   L15TA608
   NBA16512

5. EAN 4012802127379
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.55

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 22100
2. Radial Dynamic Load Rating Cr (N) 14500
3. Basic static load rating, radial (C 0r) "22100.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSED, angular contact ball bearing
