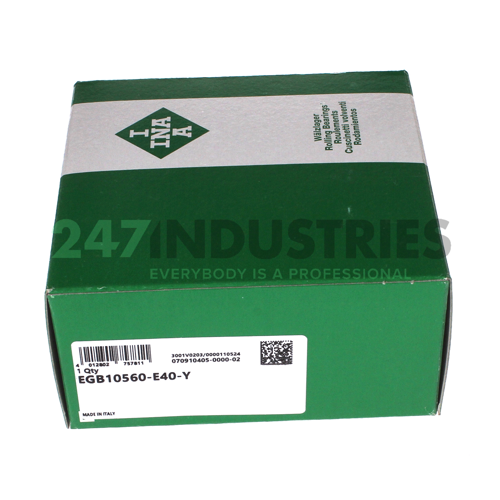

EGB10560-E40-Y INA

Bushing

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number EGB10560-E40-Y INA
Inside diameter 105mm
Outside diameter 110mm
Width 60mm
Product description

The EGB10560-E40-Y INA is a bushing. Bushings have a very simple, one-piece cylindrical design without rolling elements. Instead, they have a sliding contact where the shaft slides into the bore. This construction makes these bushings a cost-effective and reliable solution. Additionally, they are easy to install and require little installation space. The direct contact between the bushing and the shaft results in greater friction between the surfaces. Compared to roller bearings, they have lower speed and load capacities. Bushings are primarily used for rotating, oscillating, and linear movements.

The EGB10560-E40-Y INA features a maintenance-free PTFE sliding contact. PTFE is a special plastic. During the initial running-in period of the bushing, particles from the PTFE sliding layer are transferred to the opposing mating surface. This fills in small imperfections, creating a smooth surface. Thanks to this maintenance-free sliding contact, the bushing does not need to be lubricated at any point during its entire lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: EGB10560-E40-Y INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 105
  2. Outer (D) MM 110
  3. Width (B) MM 60
  4. Inner (d) Inch 4.1339
  5. Outer (D) Inch 4.3307
  6. Width (B) Inch 2.3622
  7. Outer diameter (D o) mm 110
  8. Width (b) mm 60

Suffix description

  1. E40 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (5 To 30µm) Of PTFE With Friction-Reduction Additives
  2. Y Schaeffler Factory Code

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number EGB10560-E40-Y INA
  4. Also known as 0709104050000
    GLY.PG10511060F
    PAP10560-P10
    PAP10560-P14
  5. EAN 4012802757811
  6. Category Bushing

Weight and Dimensions

  1. Weight (kg) 0.392

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 1580000
  2. Radial Dynamic Load Rating Cr (N) 882000
  3. Basic static load rating, radial (C 0r) "1580000.0000"
  4. ECLASS number 23-05-01-91
  5. ECLASS2 number 23-05-01-91
  6. Medias description Metal/polymer composite plain bush, maintenance-free, ISO 3547, with steel backing
