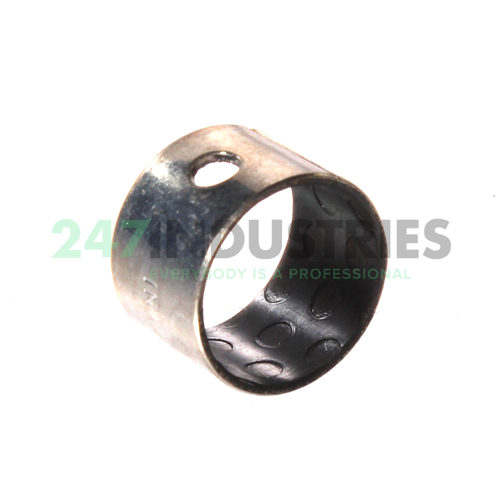

EGB1612-E50-Y INA

Bushing

Stock
2,160 pcs in stock and ready for shipment
Brand INA
Article number EGB1612-E50-Y INA
Inside diameter 16mm
Outside diameter 18mm
Width 12mm
Product description

The EGB1612-E50-Y INA is a bushing. Bushings have a very simple, one-piece cylindrical design without rolling elements. Instead, they have a sliding contact where the shaft slides into the bore. This construction makes these bushings a cost-effective and reliable solution. Additionally, they are easy to install and require little installation space. The direct contact between the bushing and the shaft results in greater friction between the surfaces. Compared to roller bearings, they have lower speed and load capacities. Bushings are primarily used for rotating, oscillating, and linear movements.

Read more Show less
Help with this product

Downloads and links

Similar to: EGB1612-E50-Y INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Outer (D) MM 18
  3. Width (B) MM 12
  4. Inner (d) Inch 0.6299
  5. Outer (D) Inch 0.7087
  6. Width (B) Inch 0.4724
  7. Outer diameter (D o) mm 18
  8. Width (b) mm 12

Suffix description

  1. E50 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (0,3 And 0,4mm, Resp.) Of PTFE With Friction-Reducing Additives
  2. Y Schaeffler Factory Code

Technical details

  1. Availability 2,160 pcs
  2. Brand INA
  3. Item number EGB1612-E50-Y INA
  4. Also known as 0711109500000
    GLY.PG161812A
    PAP1612P20
  5. EAN 4012802757644
  6. Category Bushing

Weight and Dimensions

  1. Weight (kg) 0.0033

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 26900
  2. Radial Dynamic Load Rating Cr (N) 13400
  3. Basic static load rating, radial (C 0r) "26900.0000"
  4. ECLASS number 23-05-01-91
  5. ECLASS2 number 23-05-01-91
  6. Medias description Metal/polymer composite plain bush, low-maintenance, ISO 3547, with steel backing
