EGB2015-E50-Y INA

Bushing

Stock
2,363 pcs in stock and ready for shipment
Brand INA
Article number EGB2015-E50-Y INA
Inside diameter 20mm
Outside diameter 23mm
Width 15mm
Product description

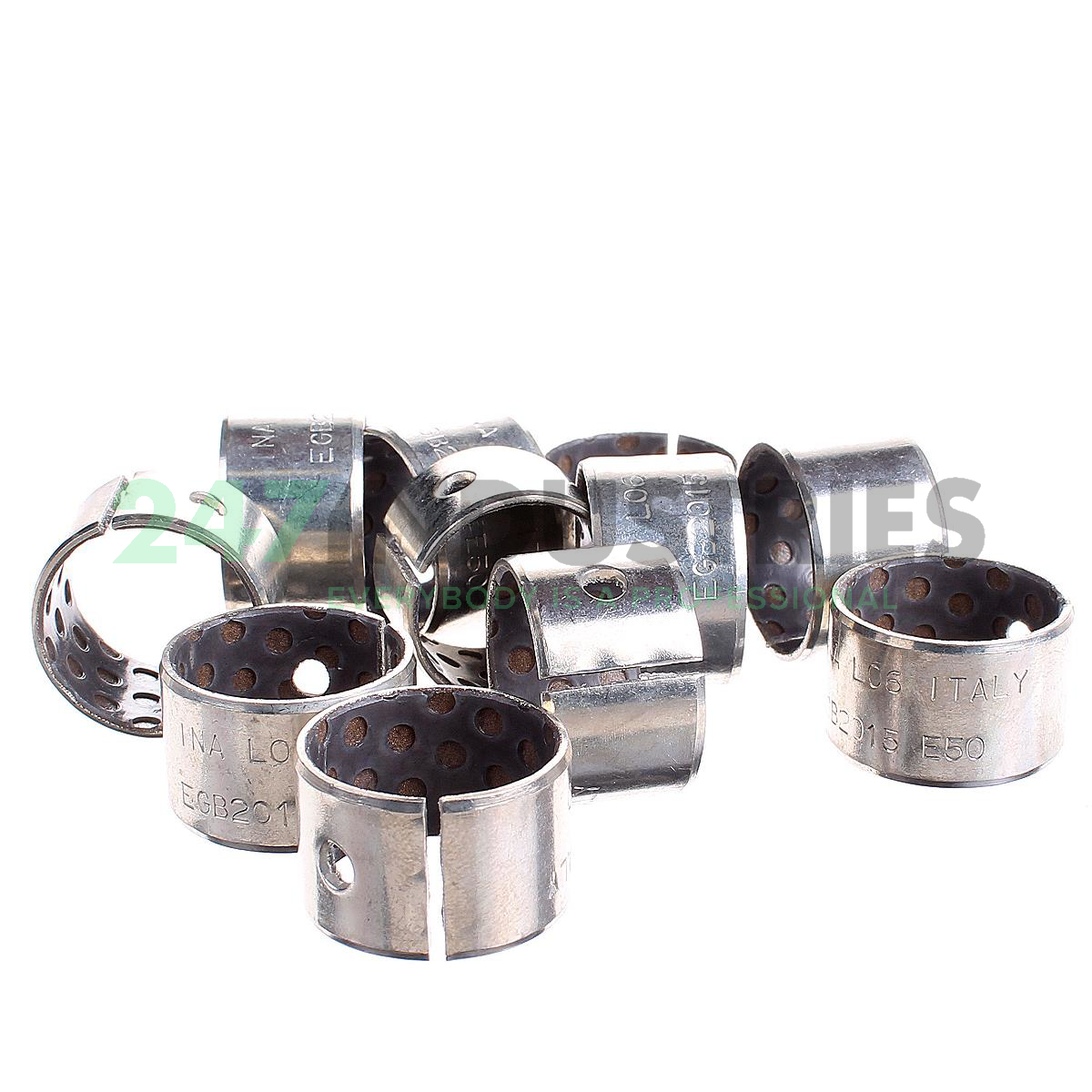

The EGB2015-E50-Y INA is a bushing. Bushings have a very simple, one-piece cylindrical design without rolling elements. Instead, they have a sliding contact where the shaft slides into the bore. This construction makes these bushings a cost-effective and reliable solution. Additionally, they are easy to install and require little installation space. The direct contact between the bushing and the shaft results in greater friction between the surfaces. Compared to roller bearings, they have lower speed and load capacities. Bushings are primarily used for rotating, oscillating, and linear movements.

Read more Show less
Help with this product

Downloads and links

Similar to: EGB2015-E50-Y INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 23
  3. Width (B) MM 15
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 0.9055
  6. Width (B) Inch 0.5906
  7. Outer diameter (D o) mm 23
  8. Width (b) mm 15

Suffix description

  1. E50 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (0,3 And 0,4mm, Resp.) Of PTFE With Friction-Reducing Additives
  2. Y Schaeffler Factory Code

Technical details

  1. Availability 2,363 pcs
  2. Brand INA
  3. Item number EGB2015-E50-Y INA
  4. Also known as 0702422830000
    GLY.PG202315A
    PAP2015-P20
  5. EAN 4012802760170
  6. Category Bushing

Weight and Dimensions

  1. Weight (kg) 0.0097

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 42000
  2. Radial Dynamic Load Rating Cr (N) 21000
  3. Basic static load rating, radial (C 0r) "42000.0000"
  4. ECLASS number 23-05-01-91
  5. ECLASS2 number 23-05-01-91
  6. Medias description Metal/polymer composite plain bush, low-maintenance, ISO 3547, with steel backing
