EGB3025-E50-Y INA

€ 2,56 ex VAT
€ 3,10 incl. VAT
€ 3,10 incl. VAT
€ 2,56 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

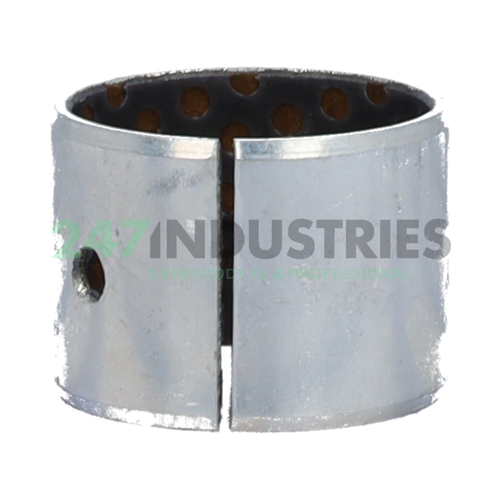

EGB3025-E50-Y INA

Bushing

Stock
1,158 pcs in stock and ready for shipment
Brand INA
Article number EGB3025-E50-Y INA
Inside diameter 30mm
Outside diameter 34mm
Width 25mm
Product description

The EGB3025-E50-Y INA is a bushing. Bushings have a very simple, one-piece cylindrical design without rolling elements. Instead, they have a sliding contact where the shaft slides into the bore. This construction makes these bushings a cost-effective and reliable solution. Additionally, they are easy to install and require little installation space. The direct contact between the bushing and the shaft results in greater friction between the surfaces. Compared to roller bearings, they have lower speed and load capacities. Bushings are primarily used for rotating, oscillating, and linear movements.

Read more Show less
Help with this product

Downloads and links

Similar to: EGB3025-E50-Y INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 34
  3. Width (B) MM 25
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 1.3386
  6. Width (B) Inch 0.9843
  7. Outer diameter (D o) mm 34
  8. Width (b) mm 25

Suffix description

  1. E50 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (0,3 And 0,4mm, Resp.) Of PTFE With Friction-Reducing Additives
  2. Y Schaeffler Factory Code

Technical details

  1. Availability 1,158 pcs
  2. Brand INA
  3. Item number EGB3025-E50-Y INA
  4. Also known as 0712442390000
    GLY.PG303425A
    PAP3025P20
  5. EAN 4012802757019
  6. Category Bushing

Weight and Dimensions

  1. Weight (kg) 0.03

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 105000
  2. Radial Dynamic Load Rating Cr (N) 52500
  3. Basic static load rating, radial (C 0r) "105000.0000"
  4. ECLASS number 23-05-01-91
  5. ECLASS2 number 23-05-01-91
  6. Medias description Metal/polymer composite plain bush, low-maintenance, ISO 3547, with steel backing
