F518-B-L FAG

Housing

Stock
21 pcs in stock and ready for shipment
Brand FAG
Article number F518-B-L FAG
Outside diameter 210mm
Width 110mm
Product description

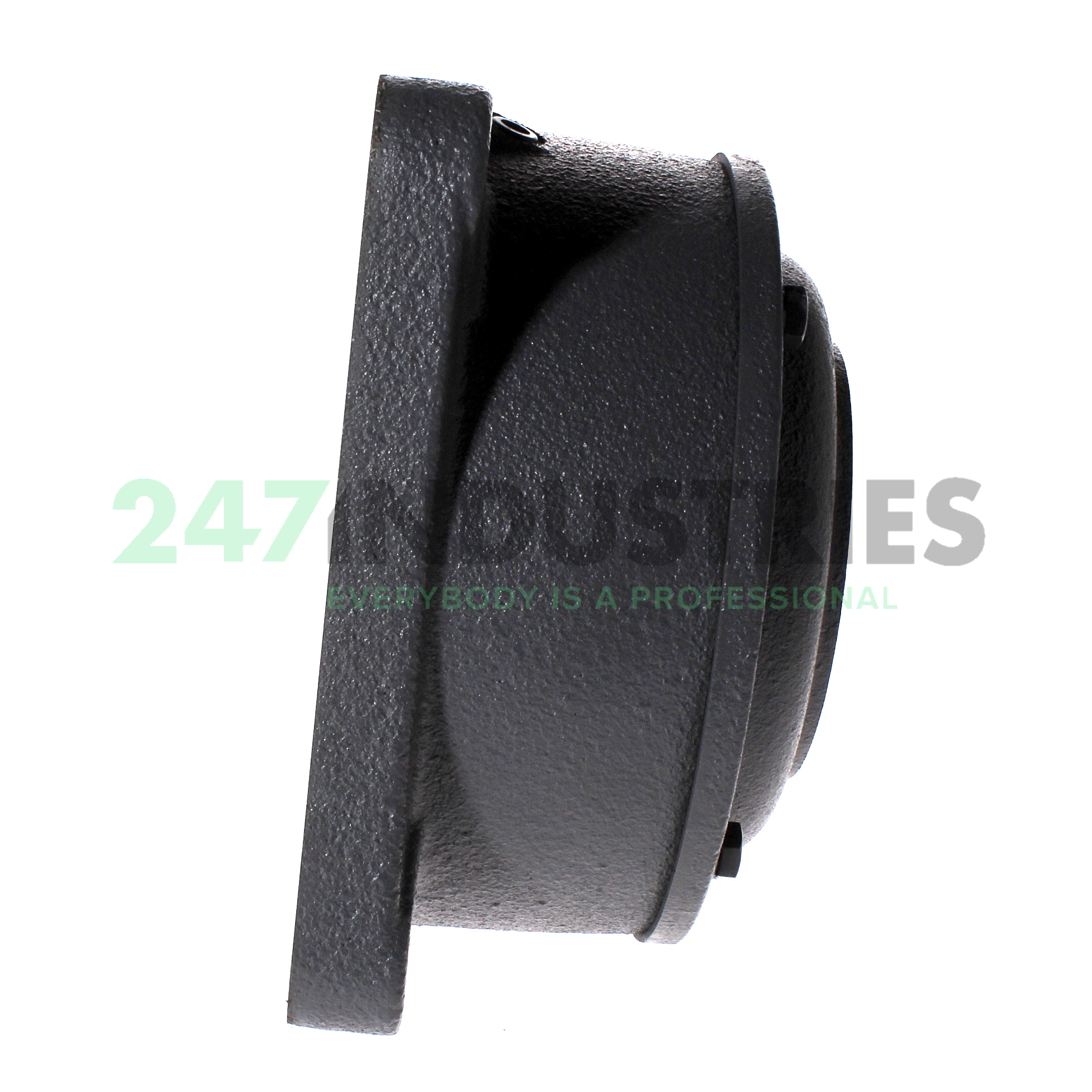

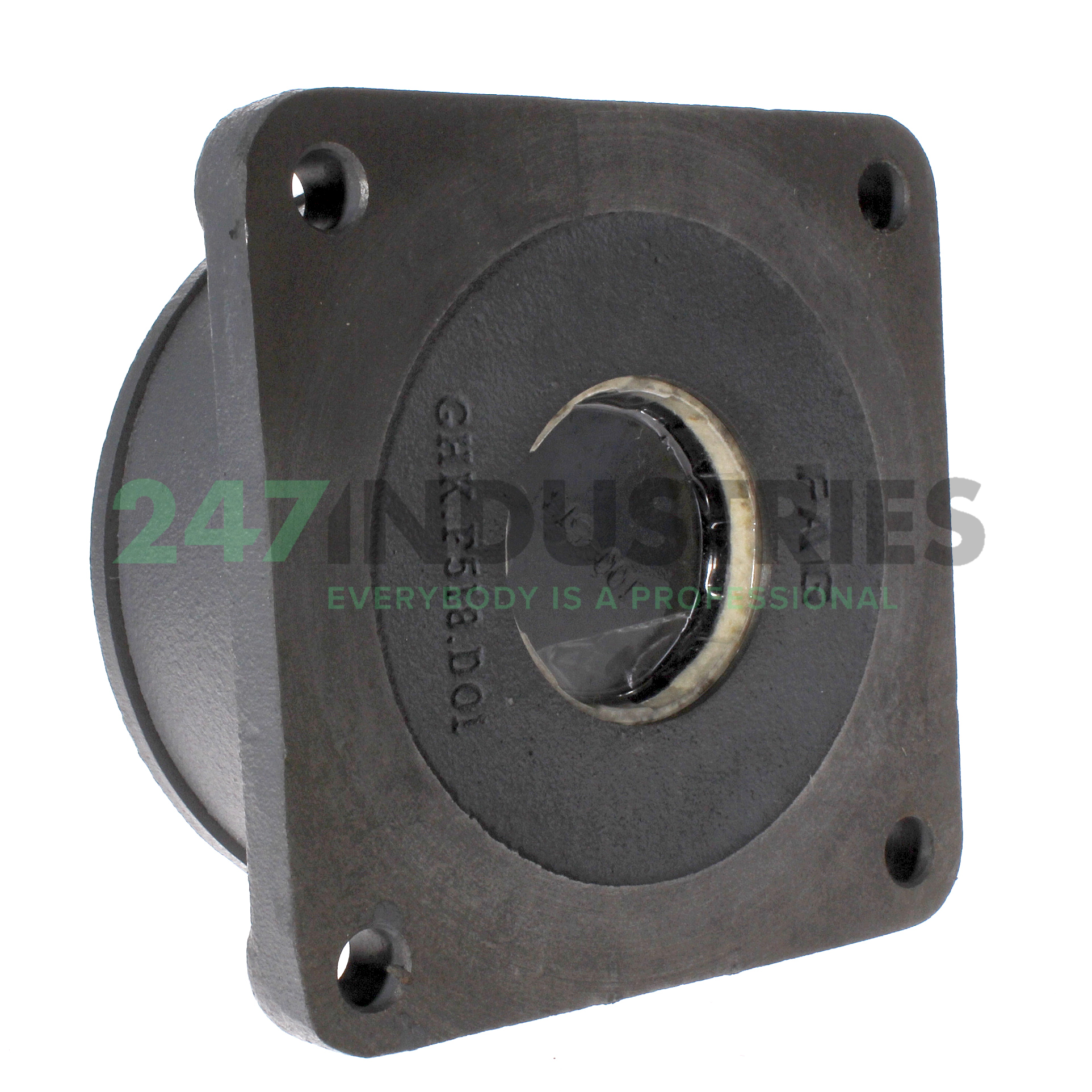

The F518-B-L FAG housing is a robust industrial solution for bearings with higher load ratings. The bearing is available separately. These housings simplify the installation of bearings and shafts, while also offering support and protection to the bearings. They improve maintenance efficiency and extend the bearing's lifespan. Consequently, the F518-B-L FAG housing provides enhanced convenience and reduced costs.

Read more Show less
Help with this product

Downloads and links

Similar to: F518-B-L FAG

Loading similair products

Product specifications

All dimensions

  1. Outer (D) MM 210
  2. Width (B) MM 110
  3. Outer (D) Inch 8.2677
  4. Width (B) Inch 4.3307
  5. Shaft diameter (d 1) mm 80
  6. Flange width (a) mm 210
  7. Height flange (h 1) mm 210
  8. Total width with cover (g 2) mm 118

Suffix description

  1. B Open Ends On Both Sides Of The Housing
  2. L Flake Graphite Cast Iron (Standard)

Technical details

  1. Availability 21 pcs
  2. Brand FAG
  3. Item number F518-B-L FAG
  4. Also known as 0383830710000
  5. EAN 4012801213202
  6. Category Housing / Y-Housing

Weight and Dimensions

  1. Weight (kg) 12.5

Data from Schaeffler (medias)

  1. Number of fastening holes 4
  2. ECLASS number 23-05-17-02
  3. ECLASS2 number 23-05-17-02
  4. Medias description Flanged housing for various bearing types, with conical bore and clamping sleeve, continuous shaft
