FLCTEY20-XL INA

Housing unit

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number FLCTEY20-XL INA
Inside diameter 20mm
Outside diameter 90,5mm
Width 27mm
Product description

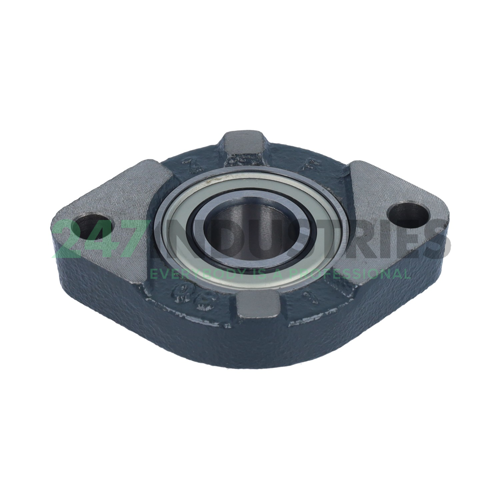

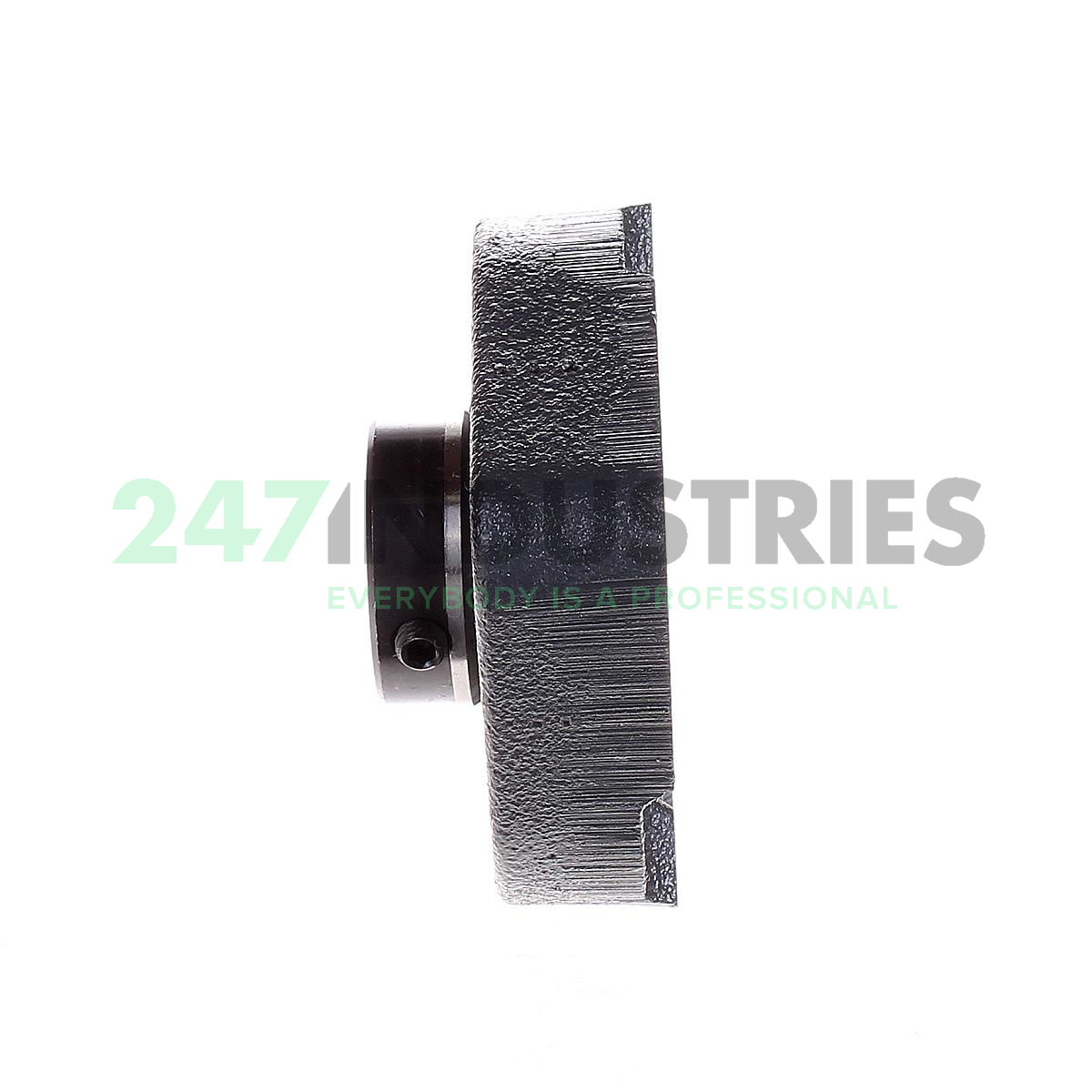

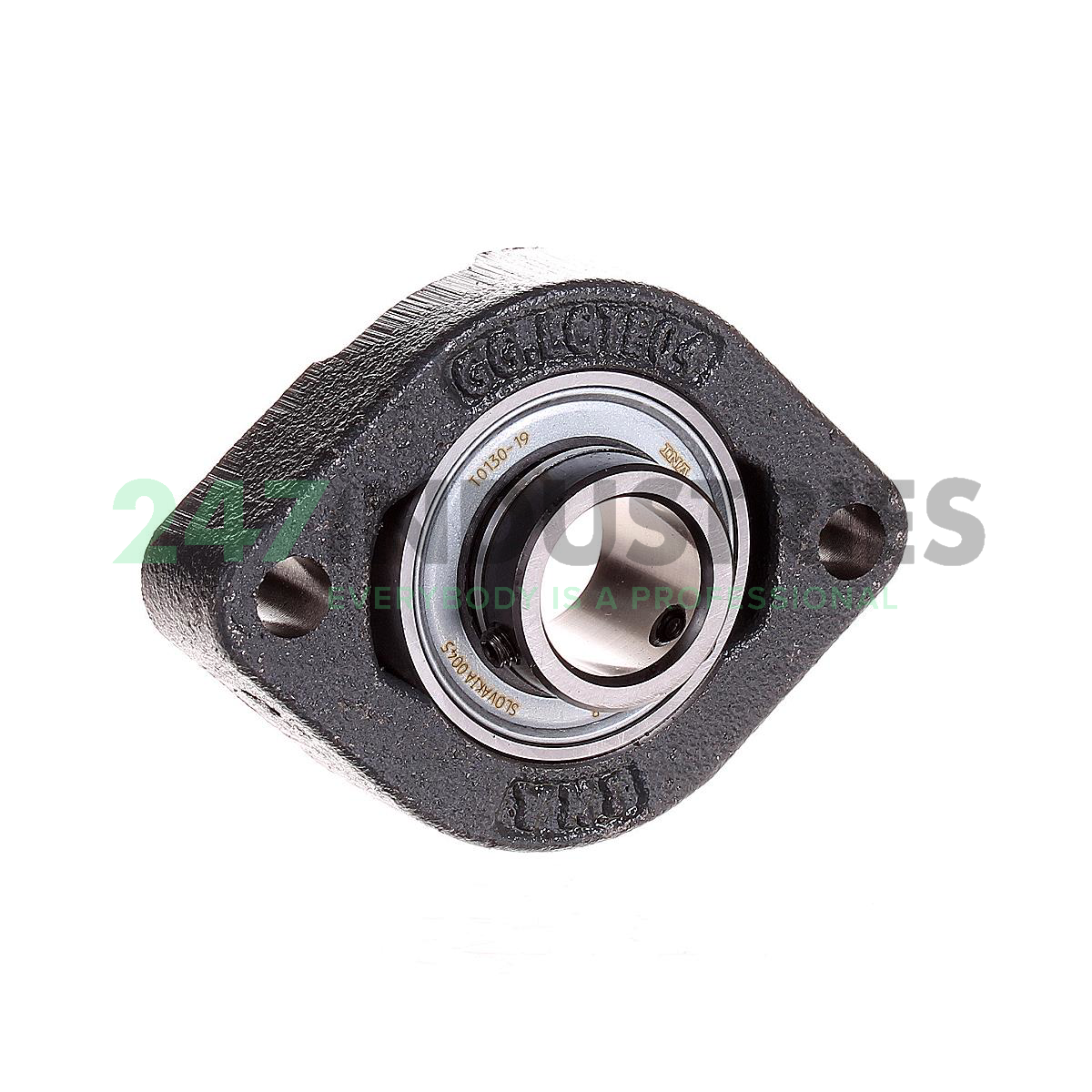

The FLCTEY20-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: FLCTEY20-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 90,5
  3. Width (B) MM 27
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.563
  6. Width (B) Inch 1.063
  7. Flange width (L) mm 66,5
  8. Height flange (H) mm 90,5
  9. Total height unit (U) mm 27

Suffix description

  1. XL X-Life

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number FLCTEY20-XL INA
  4. Also known as 0008834920000
    AY20NPPB + LCTE04
    FLCTEY20
    FYTF20RM
  5. EAN 4012802809206
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.36

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. Basic static load rating, radial (C 0r) "6600.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units FLCTEY, two-bolt flanged housing units, cast iron, grub screws in inner ring, P seals, without relubrication facility

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
