GAKL12-PB-A INA

Rod end

Stock
52 pcs in stock and ready for shipment
Brand INA
Article number GAKL12-PB-A INA
Inside diameter 12mm
Outside diameter 33mm
Width 16mm
Product description

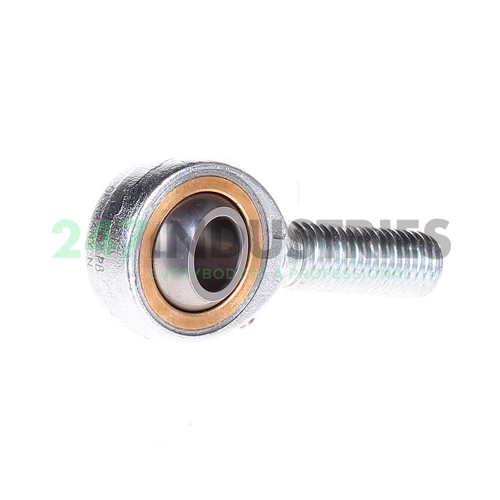

The GAKL12-PB-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAKL12-PB-A INA has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GAKL12-PB-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 33
  3. Width (B) MM 16
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2992
  6. Width (B) Inch 0.6299
  7. Outside diameter bearing (D) mm 26
  8. Width inner ring (B) mm 16

Suffix description

  1. PB Sliding Contact Surface Is Steel/Bronze
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 52 pcs
  2. Brand INA
  3. Item number GAKL12-PB-A INA
  4. Also known as 0065516610000
  5. EAN 4012802521993
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.085

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 20800
  2. Radial Dynamic Load Rating Cr (N) 13300
  3. Basic static load rating, radial (C 0r) "20800.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, left hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
