GAKL25-PB INA

Rod end

Stock
7 pcs in stock and ready for shipment
Brand INA
Article number GAKL25-PB INA
Inside diameter 25mm
Outside diameter 60mm
Width 31mm
Product description

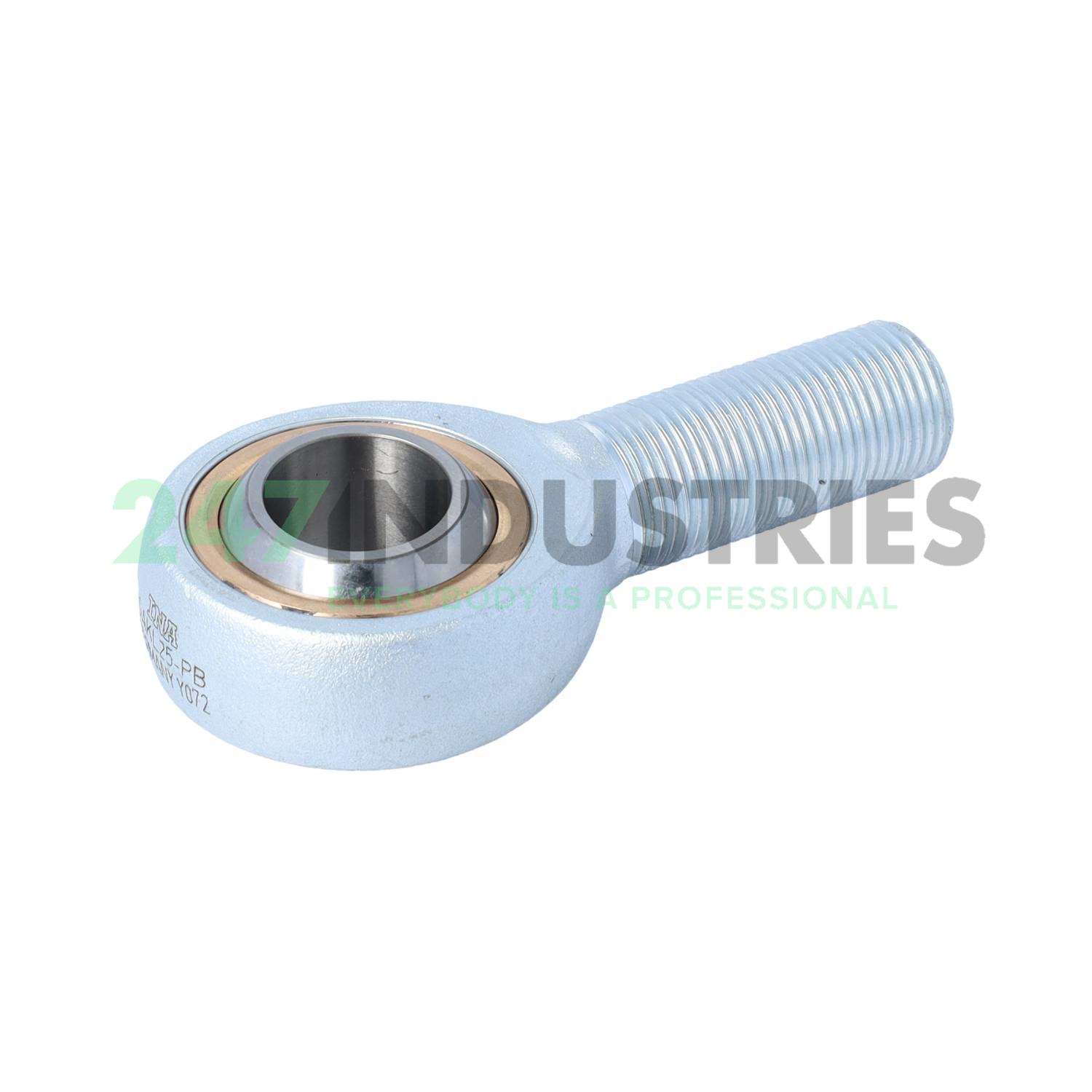

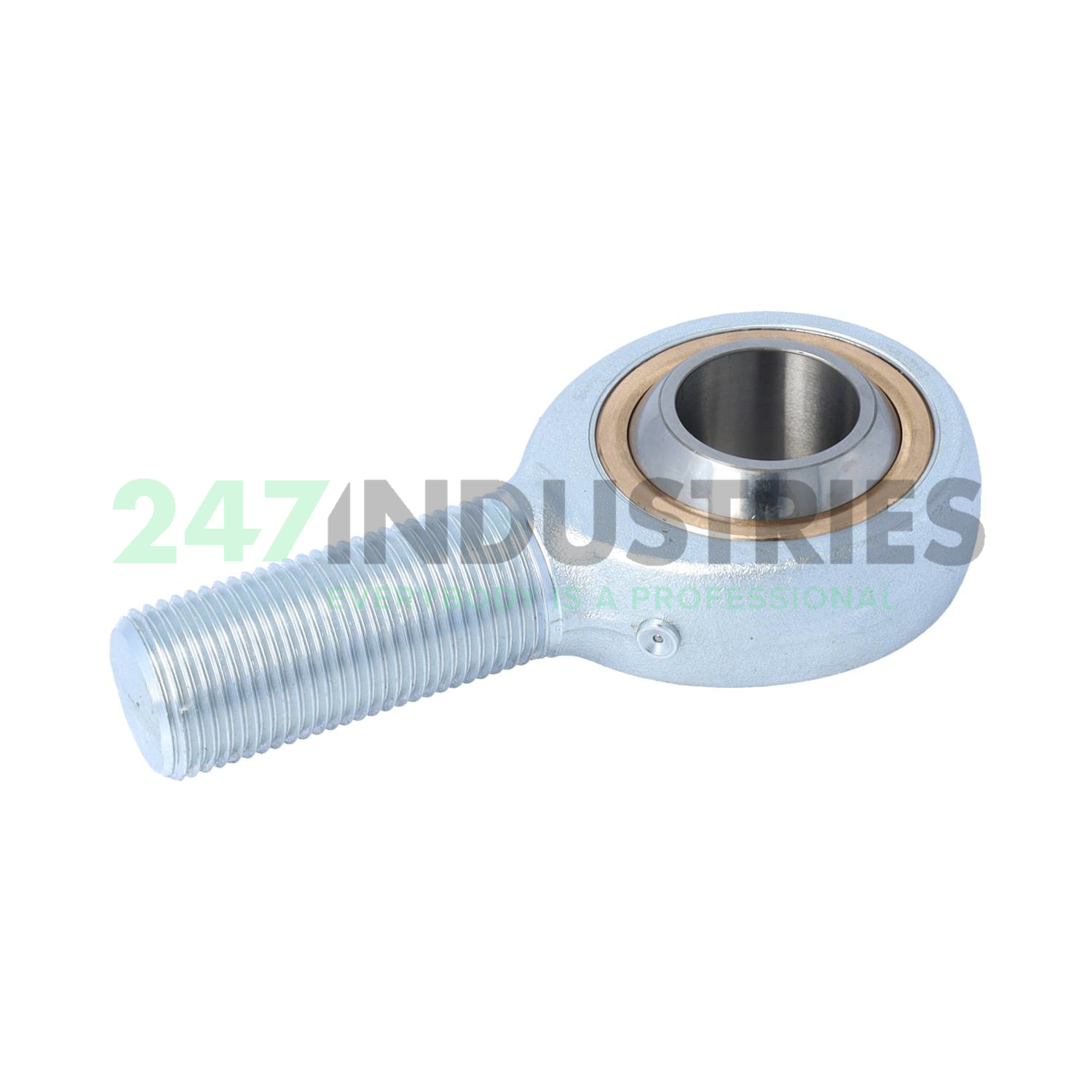

The GAKL25-PB INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAKL25-PB INA has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GAKL25-PB INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 60
  3. Width (B) MM 31
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 2.3622
  6. Width (B) Inch 1.2205
  7. Outside diameter bearing (D) mm 47
  8. Width inner ring (B) mm 31

Suffix description

  1. PB Sliding Contact Surface Is Steel/Bronze

Technical details

  1. Availability 7 pcs
  2. Brand INA
  3. Item number GAKL25-PB INA
  4. Also known as 0066333900000
  5. EAN 4012802524062
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.59

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 72900
  2. Radial Dynamic Load Rating Cr (N) 47100
  3. Basic static load rating, radial (C 0r) "72900.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, left hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
