GAKR16-PW INA

Rod end

Stock
36 pcs in stock and ready for shipment
Brand INA
Article number GAKR16-PW INA
Inside diameter 16mm
Outside diameter 42mm
Width 21mm
Product description

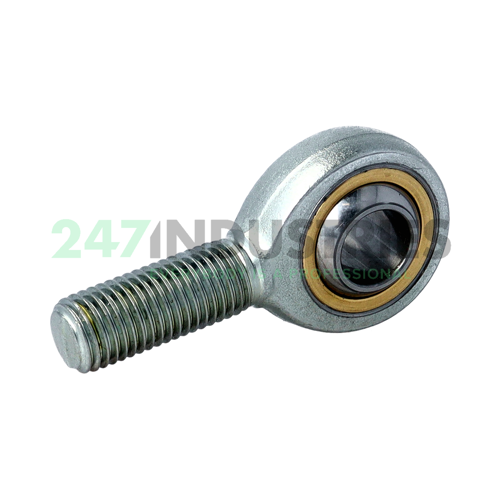

The GAKR16-PW INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAKR16-PW INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GAKR16-PW INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Outer (D) MM 42
  3. Width (B) MM 21
  4. Inner (d) Inch 0.6299
  5. Outer (D) Inch 1.6535
  6. Width (B) Inch 0.8268
  7. Outside diameter bearing (D) mm 32
  8. Outer eye diameter (d 2) mm 42
  9. Width inner ring (B) mm 21
  10. Total length external thread rod (l 2) mm 87

Suffix description

  1. PW Sliding Contact Surface Steel/PTFE (Polyetrafluoroethylene) Bronze Film

Technical details

  1. Availability 36 pcs
  2. Brand INA
  3. Item number GAKR16-PW INA
  4. Also known as 0066335280000
    SAKB16F
  5. EAN 4012802524307
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.201

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 45300
  2. Radial Dynamic Load Rating Cr (N) 38600
  3. Basic static load rating, radial (C 0r) "45300.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end GAKR..-PW, external threads, maintenance-free
