GAKSL30-PS INA

Rod end

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number GAKSL30-PS INA
Inside diameter 30mm
Outside diameter 71mm
Width 37mm
Product description

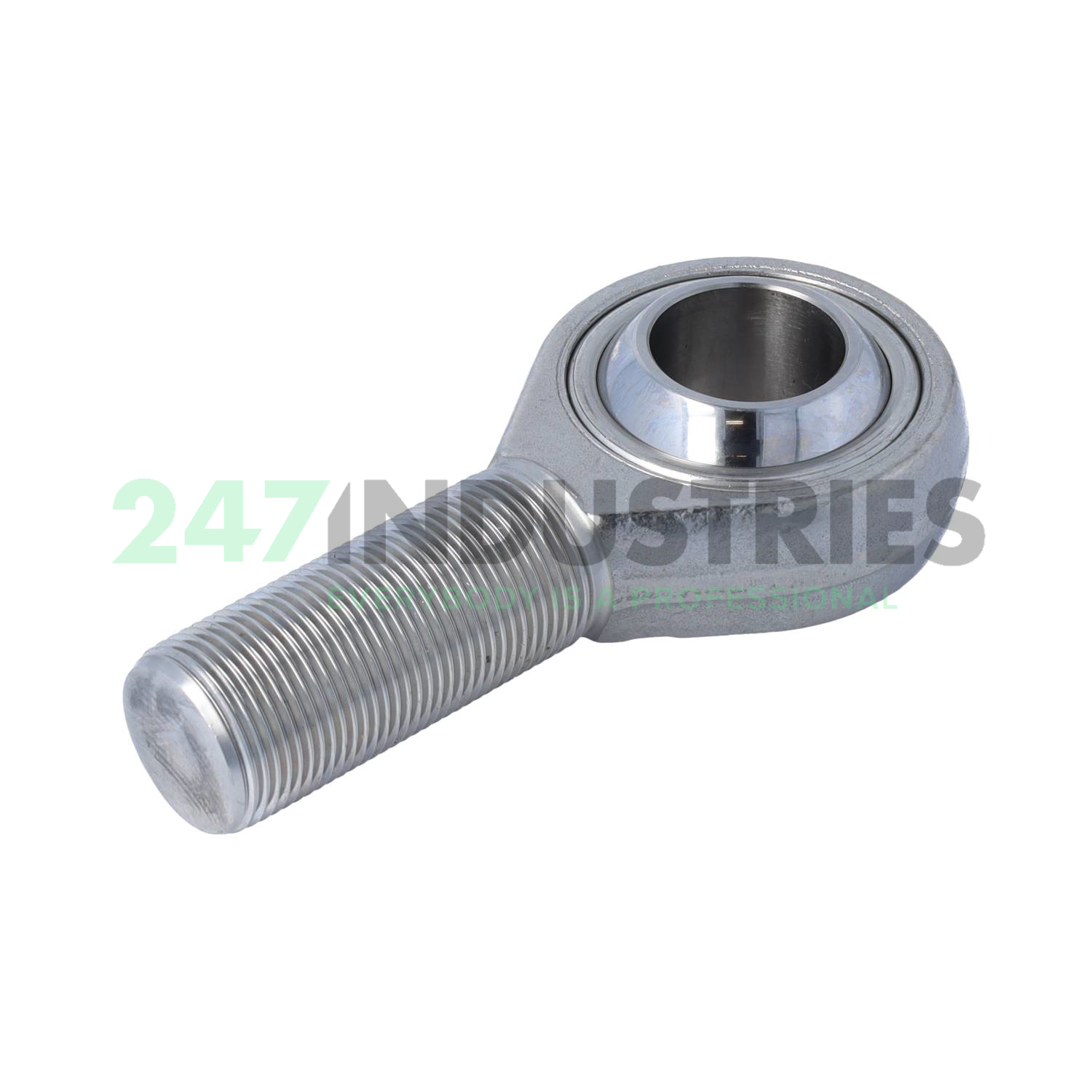

The GAKSL30-PS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAKSL30-PS INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GAKSL30-PS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 71
  3. Width (B) MM 37
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.7953
  6. Width (B) Inch 1.4567
  7. Outside diameter bearing (D) mm 55
  8. Outer eye diameter (d 2) mm 71
  9. Width inner ring (B) mm 37
  10. Total length external thread rod (l 2) mm 146

Suffix description

  1. PS Special Steel, Maintenance Free

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number GAKSL30-PS INA
  4. Also known as 0598910170000
  5. EAN 4012802545067
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 1.06

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 47500
  2. Radial Dynamic Load Rating Cr (N) 114000
  3. Basic static load rating, radial (C 0r) "47500.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Corrosion-resistant rod end, with external thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
