GAR12-DO INA

Rod end

Stock
39 pcs in stock and ready for shipment
Brand INA
Article number GAR12-DO INA
Inside diameter 12mm
Outside diameter 34mm
Width 10mm
Product description

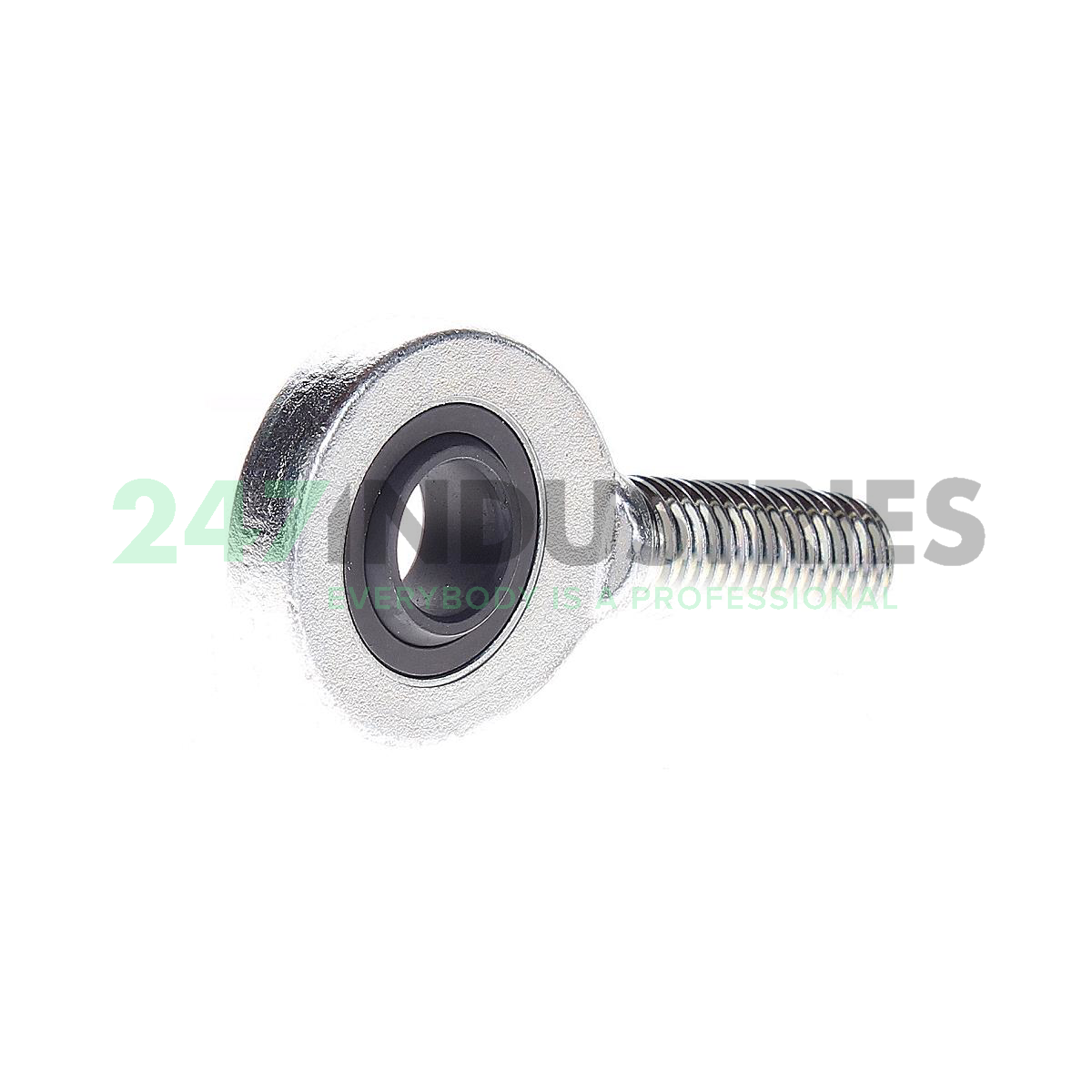

The GAR12-DO INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAR12-DO INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GAR12-DO INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 34
  3. Width (B) MM 10
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.3386
  6. Width (B) Inch 0.3937
  7. Outside diameter bearing (D) mm 22
  8. Width inner ring (B) mm 10

Suffix description

  1. DO Steel/Steel & Inner And Outer Ring Hardened

Technical details

  1. Availability 39 pcs
  2. Brand INA
  3. Item number GAR12-DO INA
  4. Also known as 0066339510000
    GAR12ES
    SA12E
    TFE12MK

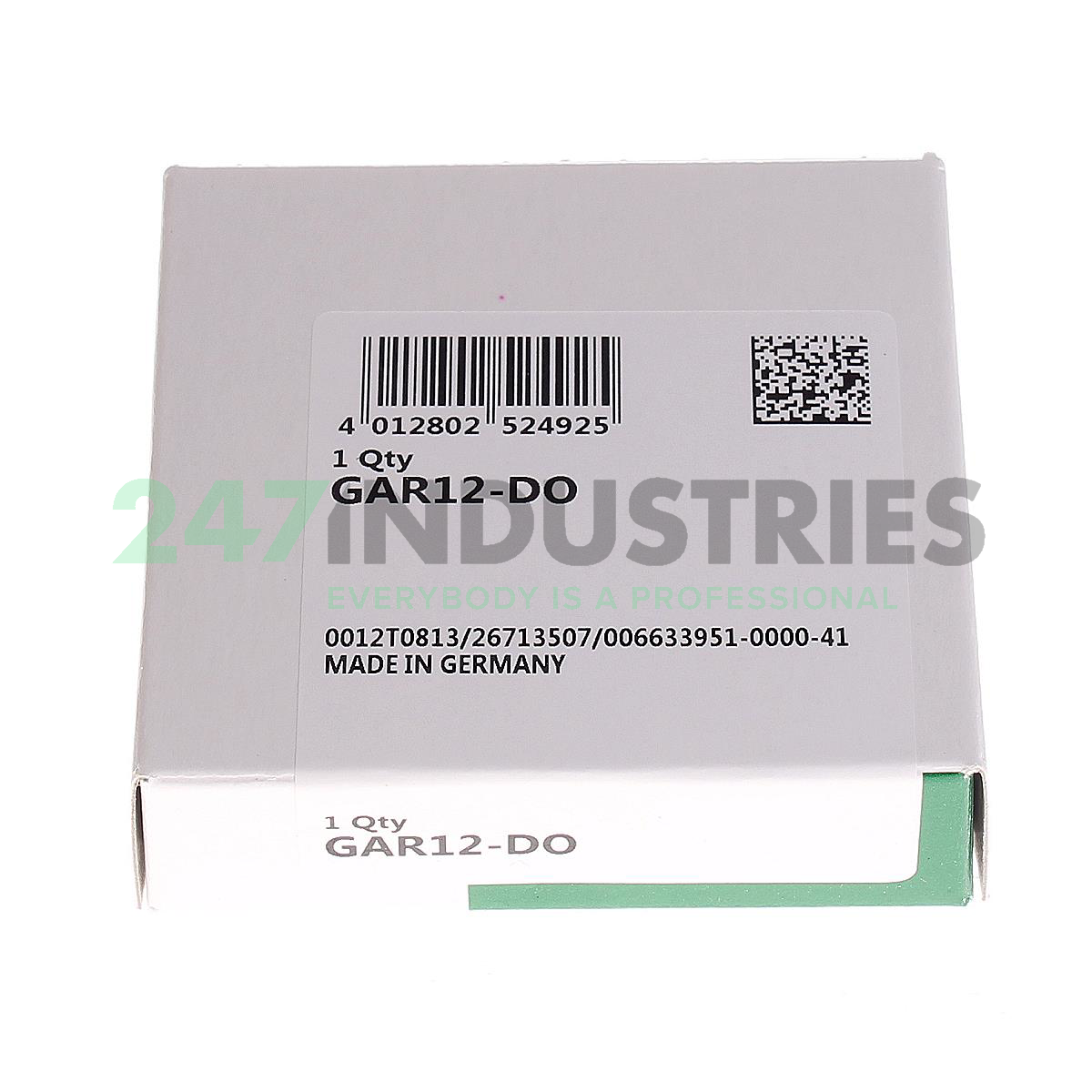

  5. EAN 4012802524925
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.0802

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 30200
  2. Radial Dynamic Load Rating Cr (N) 10800
  3. Basic static load rating, radial (C 0r) "30200.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type M, open
