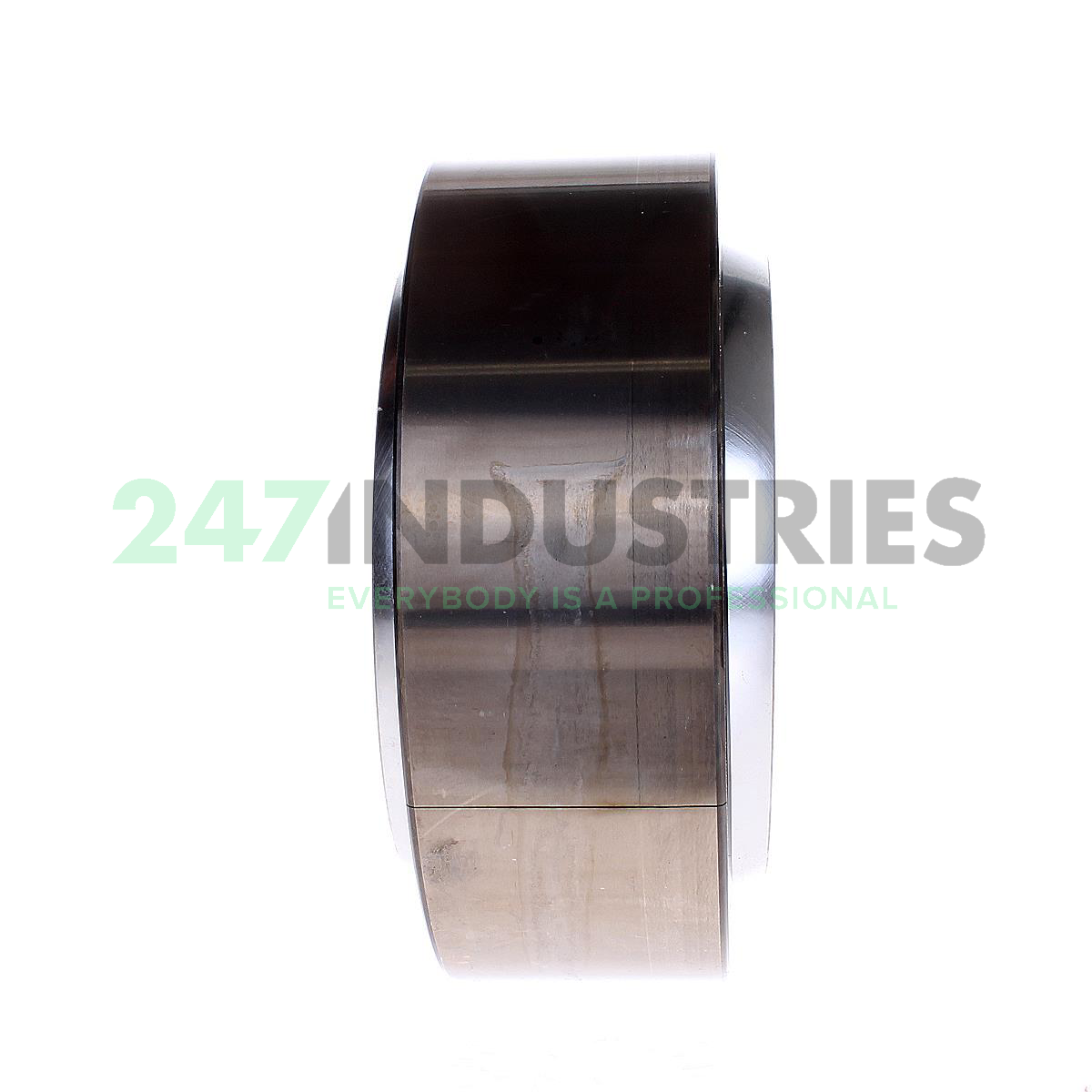

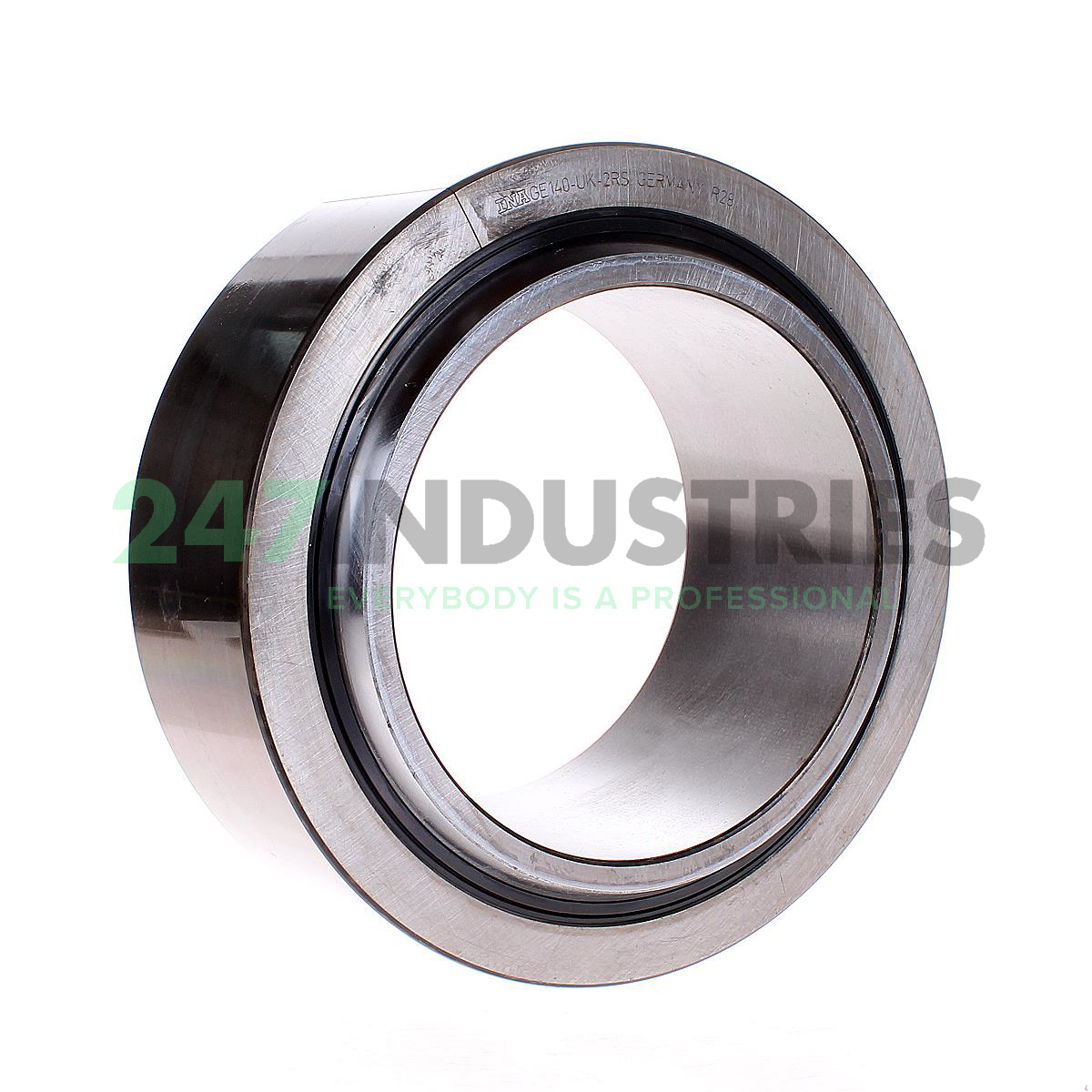

GE140-UK-2RS-C INA

Spherical plain bearing

Stock
23 pcs in stock and ready for shipment
Brand INA
Article number GE140-UK-2RS-C INA
Inside diameter 140mm
Outside diameter 210mm
Width 90mm
Product description

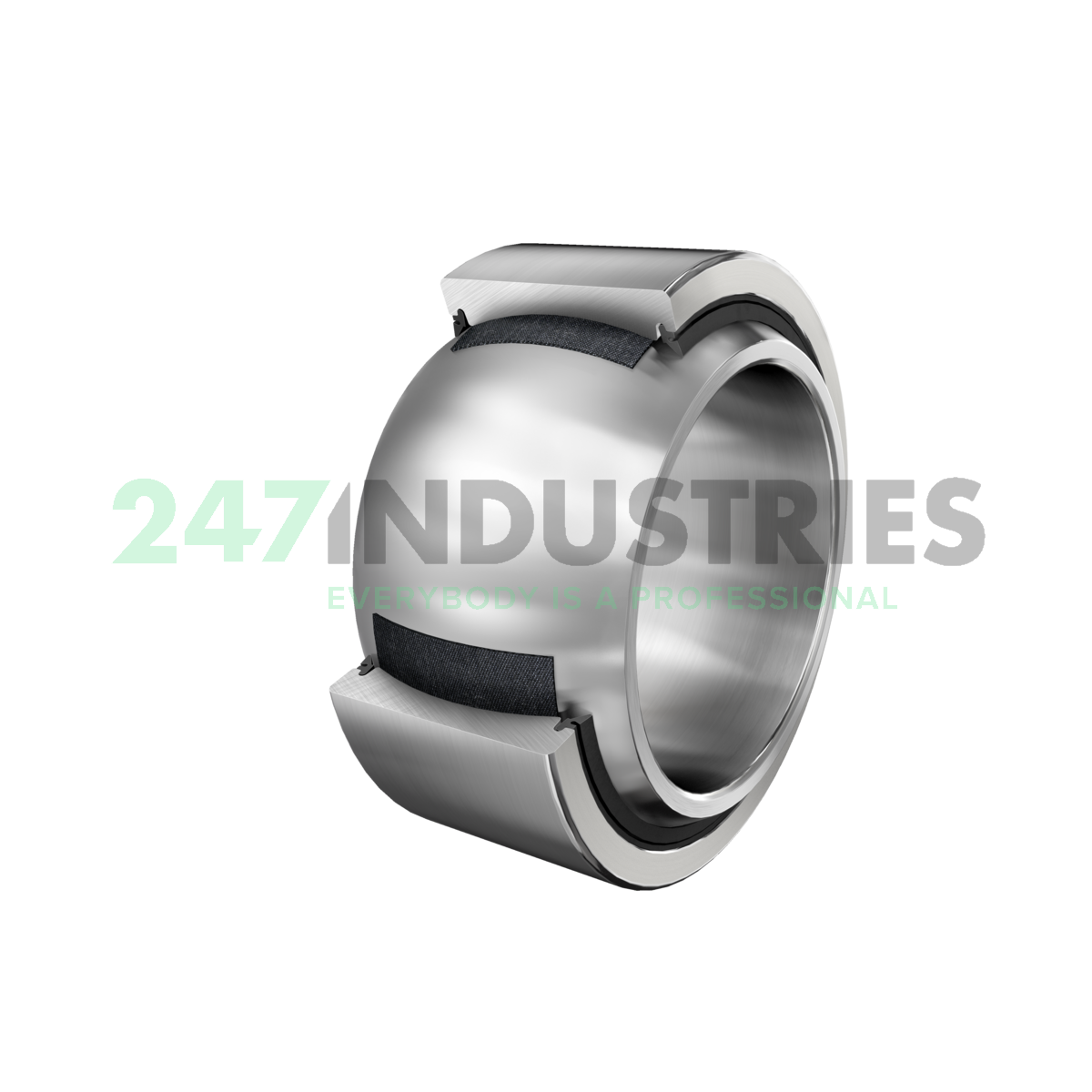

The GE140-UK-2RS-C INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE140-UK-2RS-C INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GE140-UK-2RS-C INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 140
  2. Outer (D) MM 210
  3. Width (B) MM 90
  4. Inner (d) Inch 5.5118
  5. Outer (D) Inch 8.2677
  6. Width (B) Inch 3.5433
  7. Outside diameter bearing (D) mm 210
  8. Width inner ring (B) mm 90

Suffix description

  1. UK Sliding Contact Surface Hard Chromium/PTFE Composite
  2. 2RS Lip Seals On Both Sides
  3. C Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Technical details

  1. Availability 23 pcs
  2. Brand INA
  3. Item number GE140-UK-2RS-C INA
  4. Also known as 0066507590000
    GE140TE-2RS
    GE140TXE-2RS
    GE140UA.2RS
  5. EAN 4012802532258
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 11

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 5040000
  2. Radial Dynamic Load Rating Cr (N) 3020000
  3. Basic static load rating, radial (C 0r) "5040000.0000"
  4. ECLASS number 23-05-01-06
  5. ECLASS2 number 23-05-01-06
  6. Medias description Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
