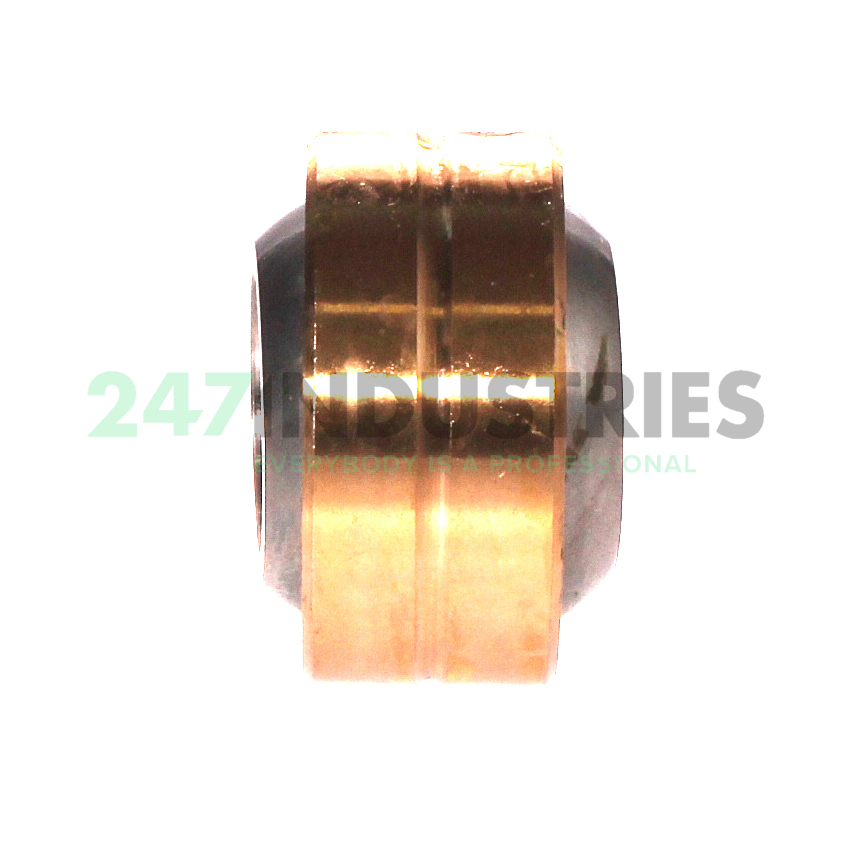

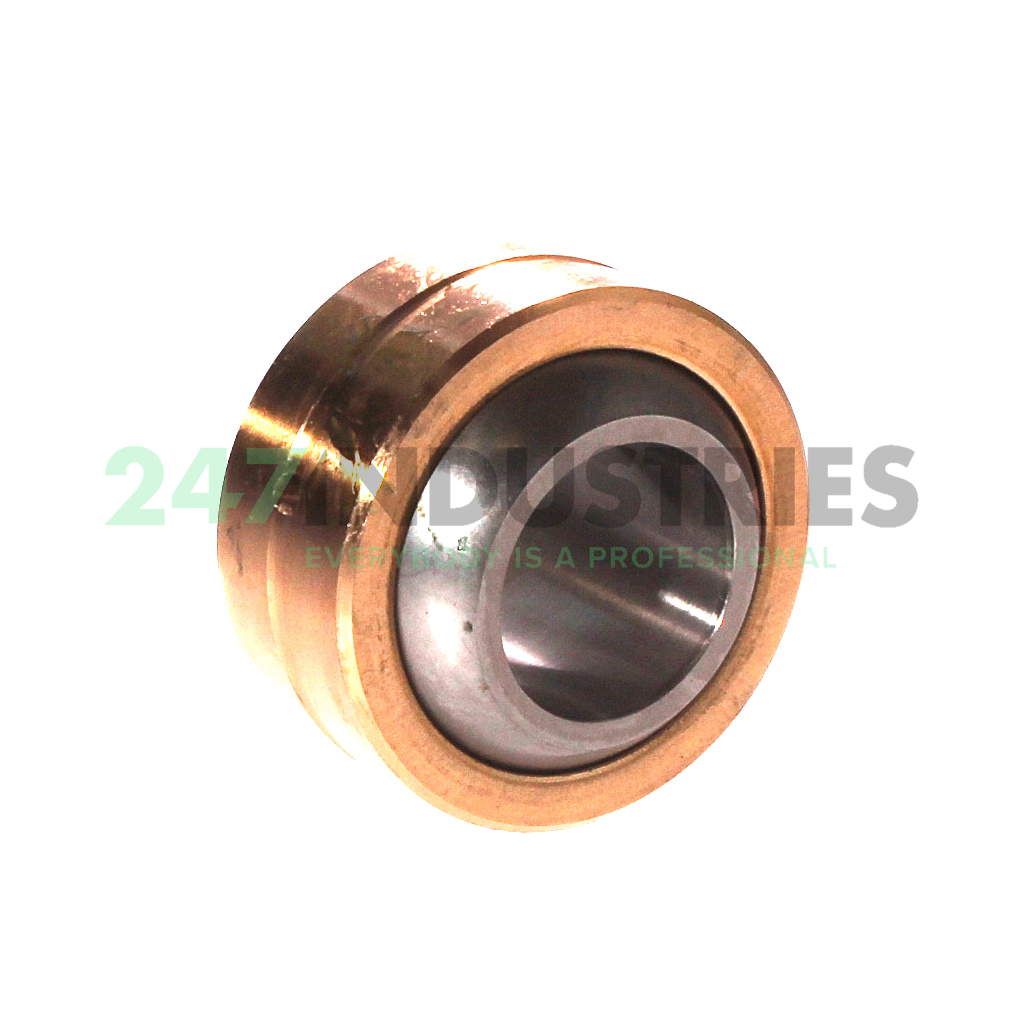

GE20-PB INA

Spherical plain bearing

Stock
8 pcs in stock and ready for shipment
Brand INA
Article number GE20-PB INA
Inside diameter 20mm
Outside diameter 40mm
Width 25mm
Product description

The GE20-PB INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE20-PB INA has a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GE20-PB INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 40
  3. Width (B) MM 25
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 0.9843
  7. Outside diameter bearing (D) mm 40
  8. Width inner ring (B) mm 25

Suffix description

  1. PB Sliding Contact Surface Steel/Bronze

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number GE20-PB INA
  4. Also known as 0066527510000
    GE20ES
  5. EAN 4012802533378
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 0.25

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 78600
  2. Radial Dynamic Load Rating Cr (N) 31400
  3. Basic static load rating, radial (C 0r) "78600.0000"
  4. ECLASS number 23-05-01-06
  5. ECLASS2 number 23-05-01-06
  6. Medias description Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
