GE35-FW-2RS-A INA

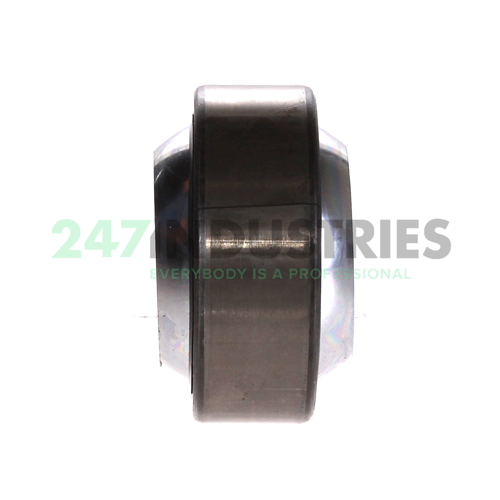

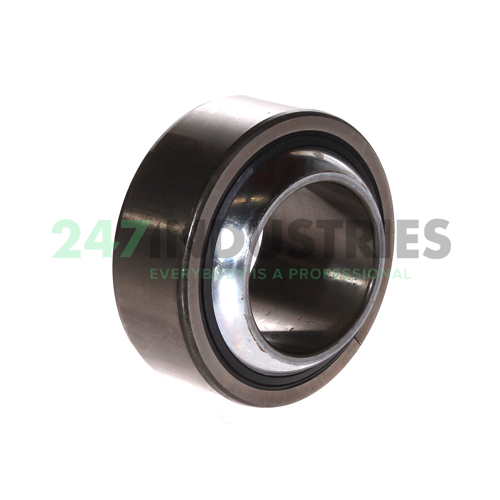

Spherical plain bearing

Stock
25 pcs in stock and ready for shipment
Brand INA
Article number GE35-FW-2RS-A INA
Width 35mm
Product description

The GE35-FW-2RS-A INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE35-FW-2RS-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Similar to: GE35-FW-2RS-A INA

Loading similair products

Product specifications

All dimensions

  1. Width (B) MM 35
  2. Width (B) Inch 1.378

Suffix description

  1. FW Sliding Contact Surface Hard Chromium/PTFE (Polyetrafluoroethylene) Composite, Wide Inner Ring
  2. 2RS Lip Seals On Both Sides
  3. A Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Technical details

  1. Availability 25 pcs
  2. Brand INA
  3. Item number GE35-FW-2RS-A INA
  4. Also known as 0066501980000
    GEH35TXE-2RS
  5. EAN 4012802531770
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 0.39

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Medias description Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
