GE80-FW-2RS-A INA

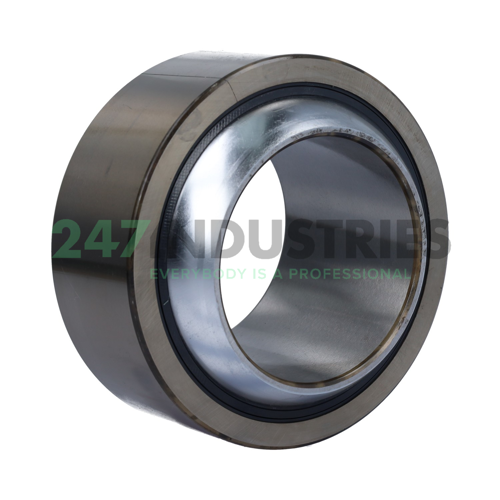

Spherical plain bearing

Stock
5 pcs in stock and ready for shipment
Brand INA
Article number GE80-FW-2RS-A INA
Inside diameter 80mm
Outside diameter 130mm
Width 75mm
Product description

The GE80-FW-2RS-A INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE80-FW-2RS-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GE80-FW-2RS-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 80
  2. Outer (D) MM 130
  3. Width (B) MM 75
  4. Inner (d) Inch 3.1496
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 2.9528
  7. Outside diameter bearing (D) mm 130
  8. Width inner ring (B) mm 75

Suffix description

  1. FW Sliding Contact Surface Hard Chromium/PTFE (Polyetrafluoroethylene) Composite, Wide Inner Ring
  2. 2RS Lip Seals On Both Sides
  3. A Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Technical details

  1. Availability 5 pcs
  2. Brand INA
  3. Item number GE80-FW-2RS-A INA
  4. Also known as 0066504570000
    GEH80TXE-2RS
  5. EAN 4012802532050
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 3.481

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 2300000
  2. Radial Dynamic Load Rating Cr (N) 1380000
  3. Basic static load rating, radial (C 0r) "2300000.0000"
  4. ECLASS number 23-05-01-06
  5. ECLASS2 number 23-05-01-06
  6. Medias description Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
