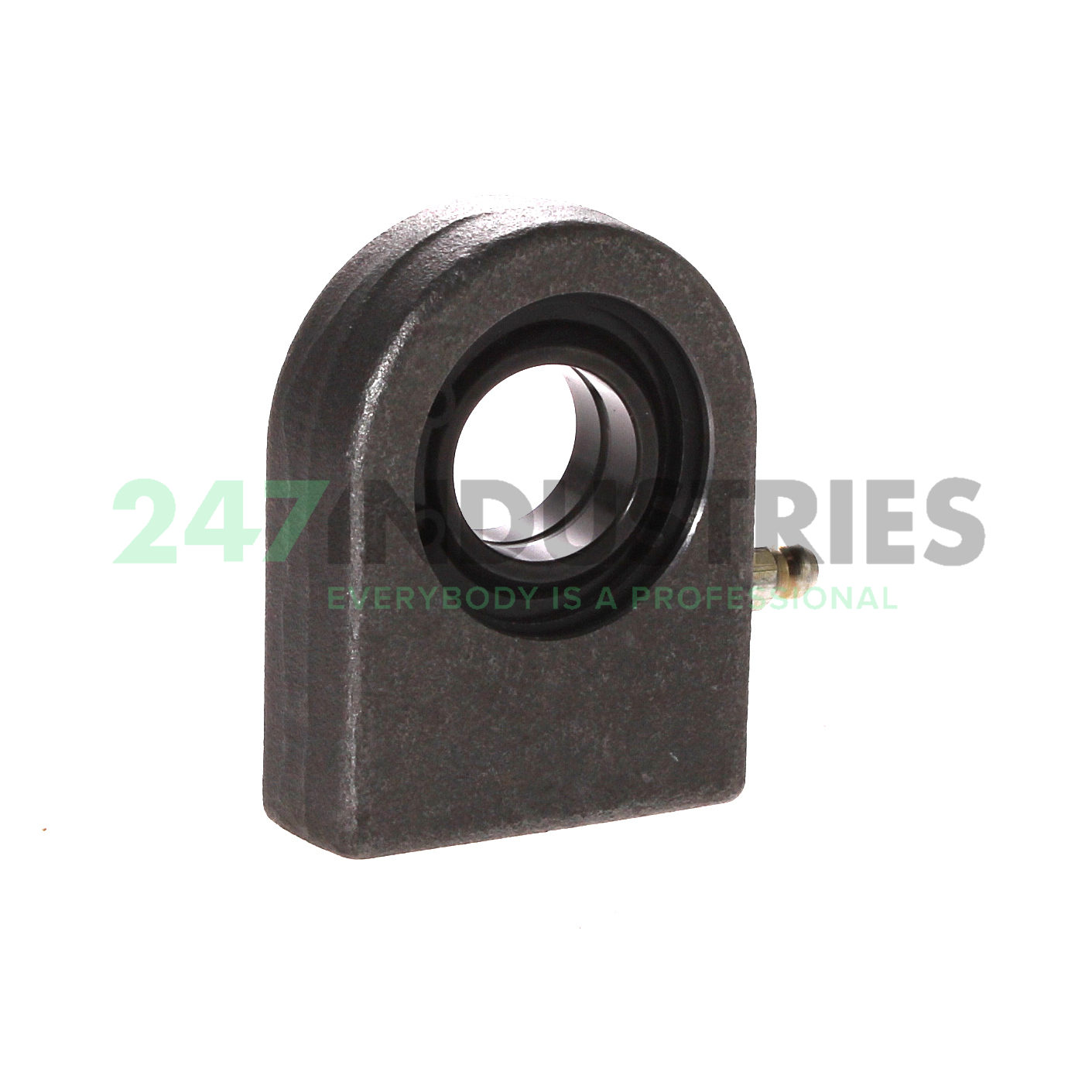

GF20-DO-A INA

Rod end

Stock
20 pcs in stock and ready for shipment
Brand INA
Article number GF20-DO-A INA
Inside diameter 20mm
Outside diameter 50mm
Width 19mm
Product description

The GF20-DO-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GF20-DO-A INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GF20-DO-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 50
  3. Width (B) MM 19
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.9685
  6. Width (B) Inch 0.748
  7. Outside diameter bearing (D) mm 35
  8. Width inner ring (B) mm 16

Suffix description

  1. DO Sliding Contact Surface Steel/Steel
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 20 pcs
  2. Brand INA
  3. Item number GF20-DO-A INA
  4. Also known as 0066329120000
    GF20ES
    SCF20ES
    TS20N
  5. EAN 4012802523669
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.3351

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 65600
  2. Radial Dynamic Load Rating Cr (N) 29600
  3. Basic static load rating, radial (C 0r) "65600.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Hydraulic rod end, with rectangular welding face requiring maintenance, sliding contact surface: steel/steel open design
