GIHNRK63-LO-B INA

Rod end

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number GIHNRK63-LO-B INA
Inside diameter 63mm
Outside diameter 135mm
Width 63mm
Product description

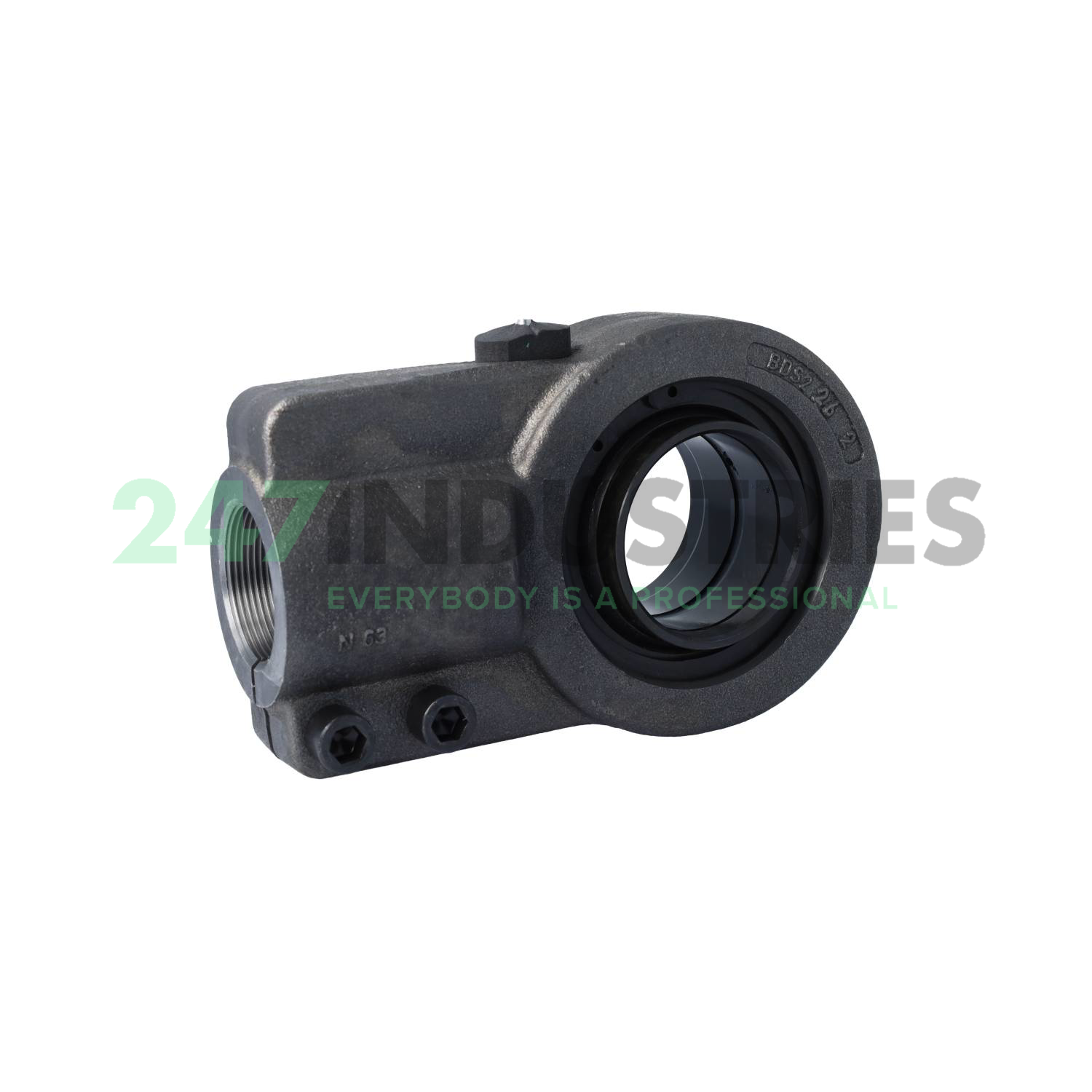

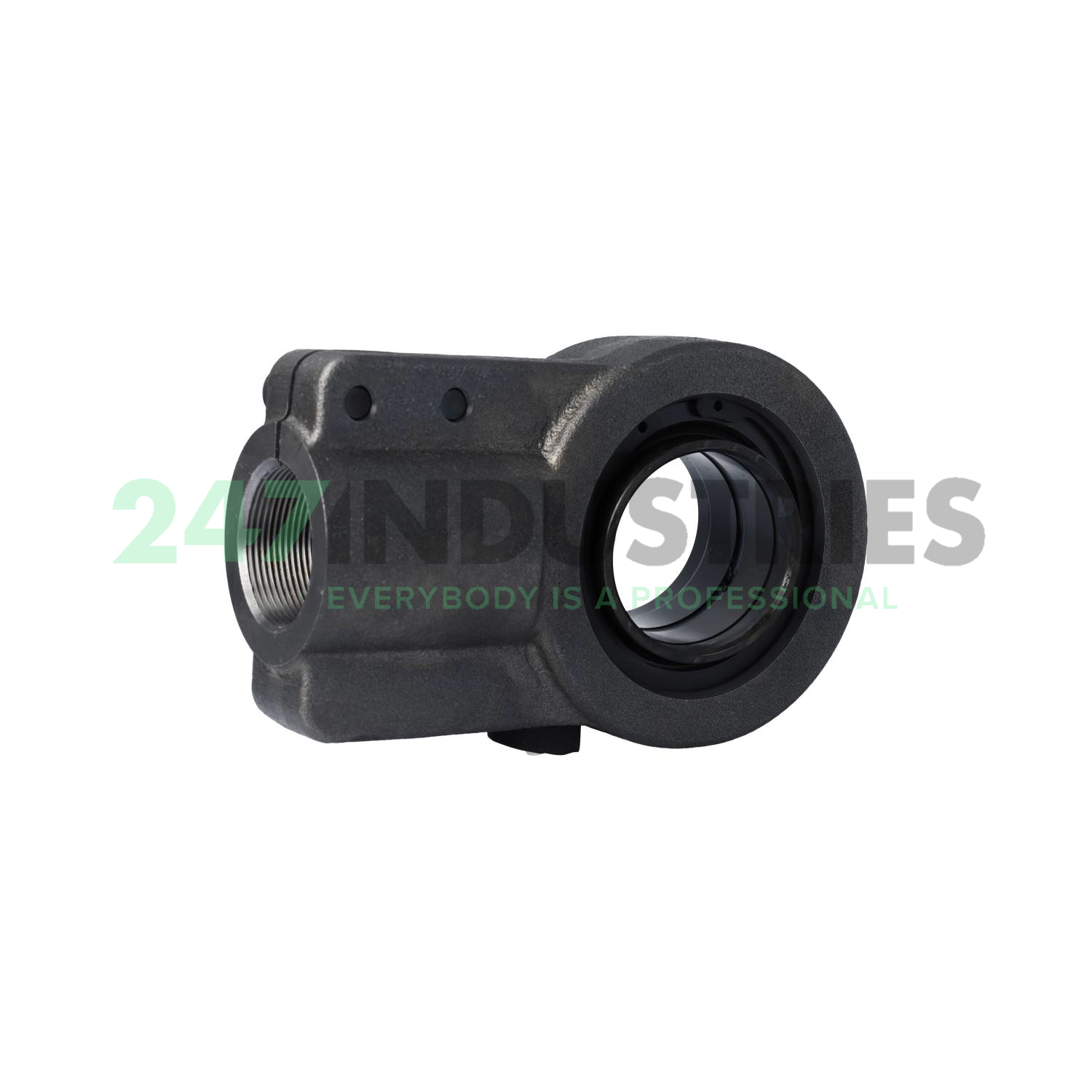

The GIHNRK63-LO-B INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIHNRK63-LO-B INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GIHNRK63-LO-B INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 63
  2. Outer (D) MM 135
  3. Width (B) MM 63
  4. Inner (d) Inch 2.4803
  5. Outer (D) Inch 5.315
  6. Width (B) Inch 2.4803
  7. Outside diameter bearing (D) mm 95

Suffix description

  1. LO Sliding Contact Surface Is Steel/Steel, Inner Ring Extended On Both Sides, Single Axial Split In Outer Ring
  2. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number GIHNRK63-LO-B INA
  4. Also known as 0066345400000
    SIQG63ES
    TAPR63CE
  5. EAN 4012802525649
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 6.3436

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Clearance (G r) 0,055 - 0,142
  2. Radial Static Load Rating C0r (N) 321000
  3. Radial Dynamic Load Rating Cr (N) 254000
  4. Basic static load rating, radial (C 0r) "321000.0000"
  5. ECLASS number 23-05-01-05
  6. ECLASS2 number 23-05-01-05
  7. Medias description Hydraulic rod end, with thread clamping device, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN 24338 ISO 6982, open design

Downloads and links

  1. Link to manufacturer Link to manufacturer
