GIHRK20-DO-B INA

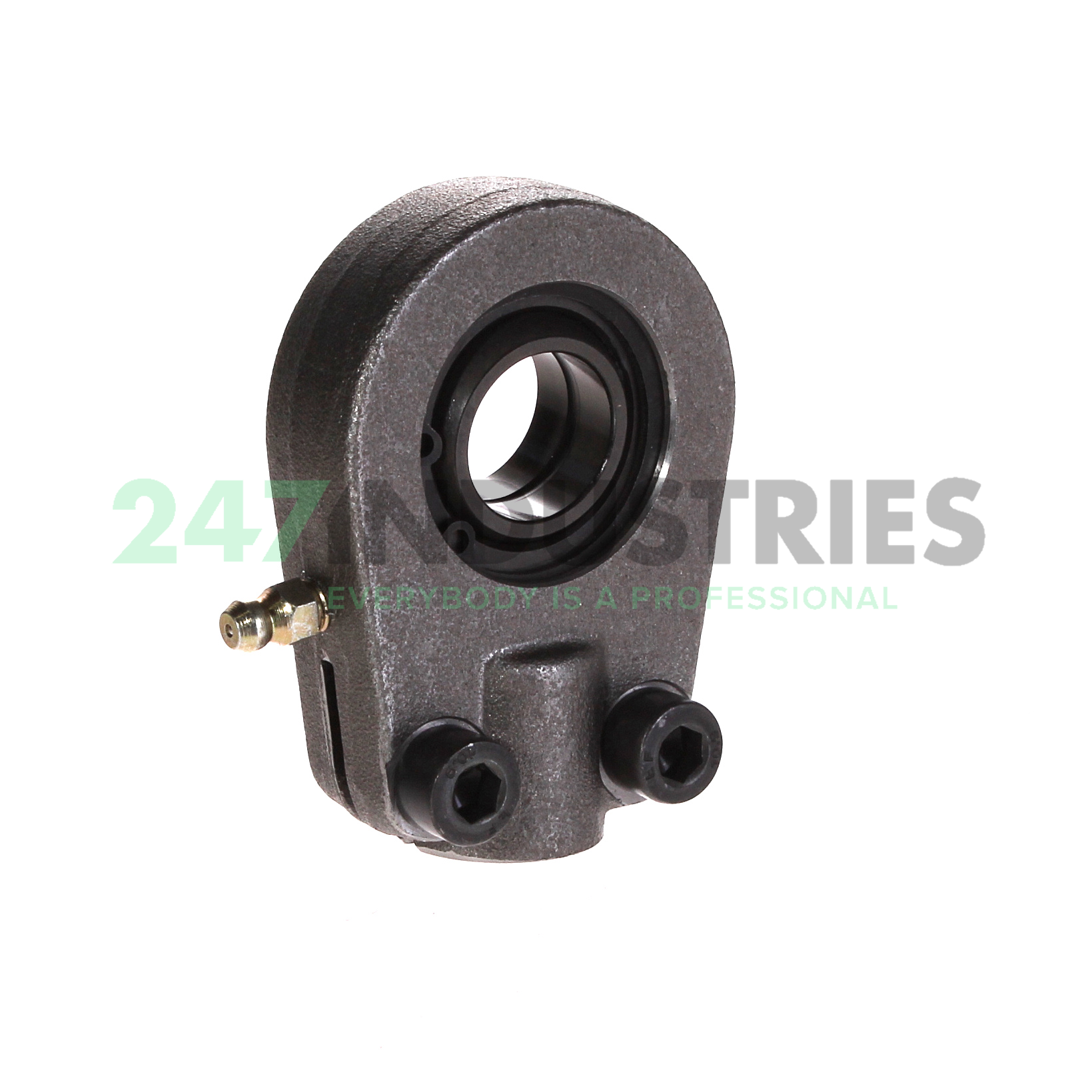

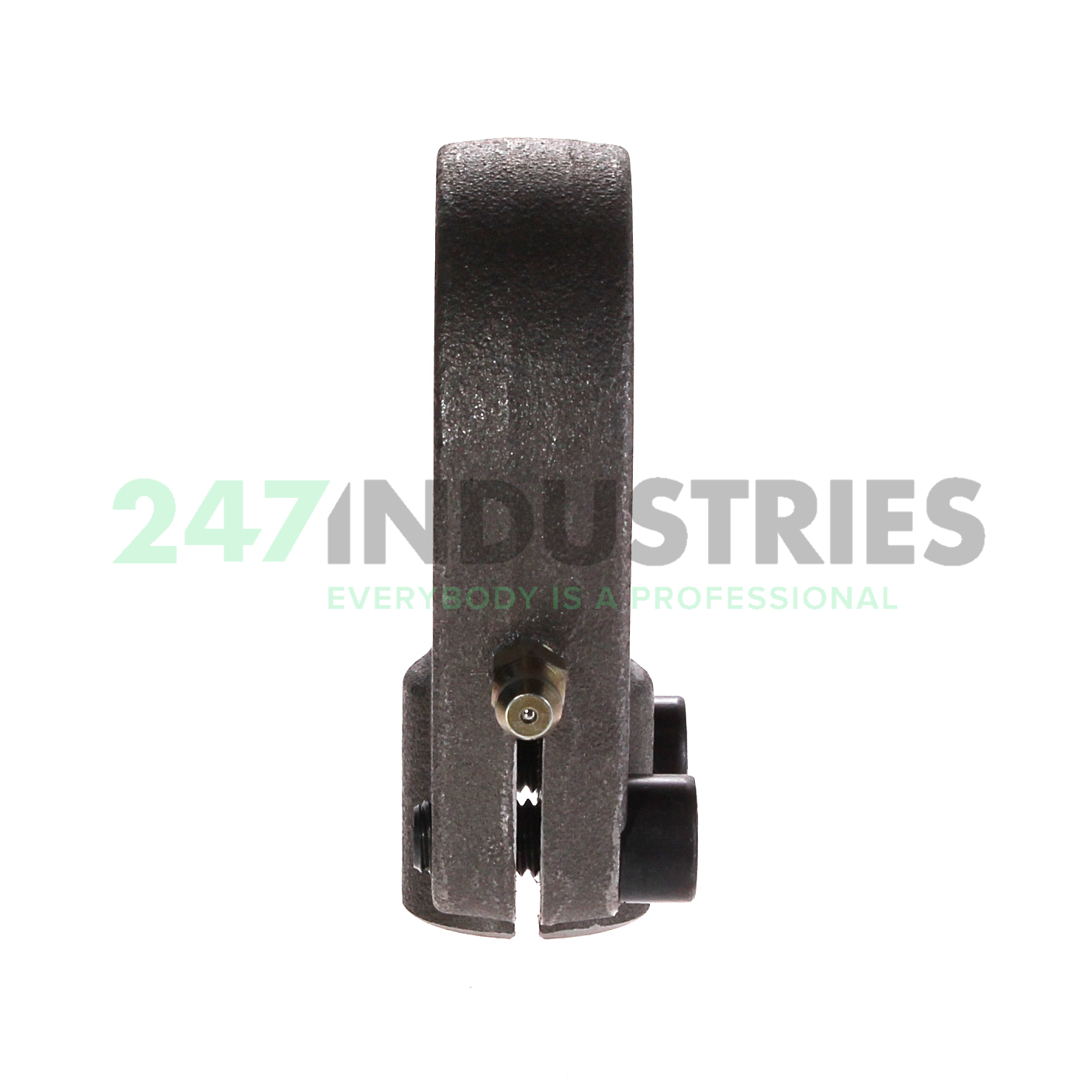

Rod end

Stock
1 pc in stock and ready for shipment
Brand INA
Article number GIHRK20-DO-B INA
Inside diameter 20mm
Outside diameter 56mm
Width 16mm
Product description

The GIHRK20-DO-B INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIHRK20-DO-B INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GIHRK20-DO-B INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 56
  3. Width (B) MM 16
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.2047
  6. Width (B) Inch 0.6299
  7. Outside diameter bearing (D) mm 35

Suffix description

  1. DO Sliding Contact Surface Steel/Steel
  2. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number GIHRK20-DO-B INA
  4. Also known as 0066331020000
    GIHR-K20DO
    GIHRK20ES
    GIHR-K20ES
    SIR20DO
    SIR20ES
    TAPR20U
  5. EAN 4012802523850
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.4171

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Clearance (G r) 0,03 - 0,082
  2. Radial Static Load Rating C0r (N) 81100
  3. Radial Dynamic Load Rating Cr (N) 29600
  4. Basic static load rating, radial (C 0r) "81100.0000"
  5. ECLASS number 23-05-01-05
  6. ECLASS2 number 23-05-01-05
  7. Medias description Hydraulic rod end, with thread clamping device, right hand thread, requiring maintenance, sliding contact surface: steel/steel, open design
