GIKL6-PB-A Elges

Rod end

Stock
20 pcs in stock and ready for shipment
Brand Elges
Article number GIKL6-PB-A Elges
Inside diameter 6mm
Outside diameter 20mm
Width 9mm
Product description

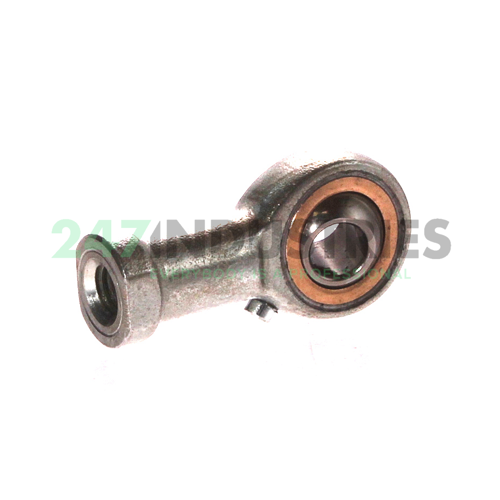

The GIKL6-PB-A Elges is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKL6-PB-A Elges has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: GIKL6-PB-A Elges

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6
  2. Outer (D) MM 20
  3. Width (B) MM 9
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.7874
  6. Width (B) Inch 0.3543

Suffix description

  1. PB Sliding Contact Surface Steel/Bronze, To ISO 12 240-1, Dimension Series K, For Shafts From 5mm To 30mm
  2. A Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Technical details

  1. Availability 20 pcs
  2. Brand Elges
  3. Item number GIKL6-PB-A Elges
  4. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.025

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
