GIKPR12-PW-A Elges

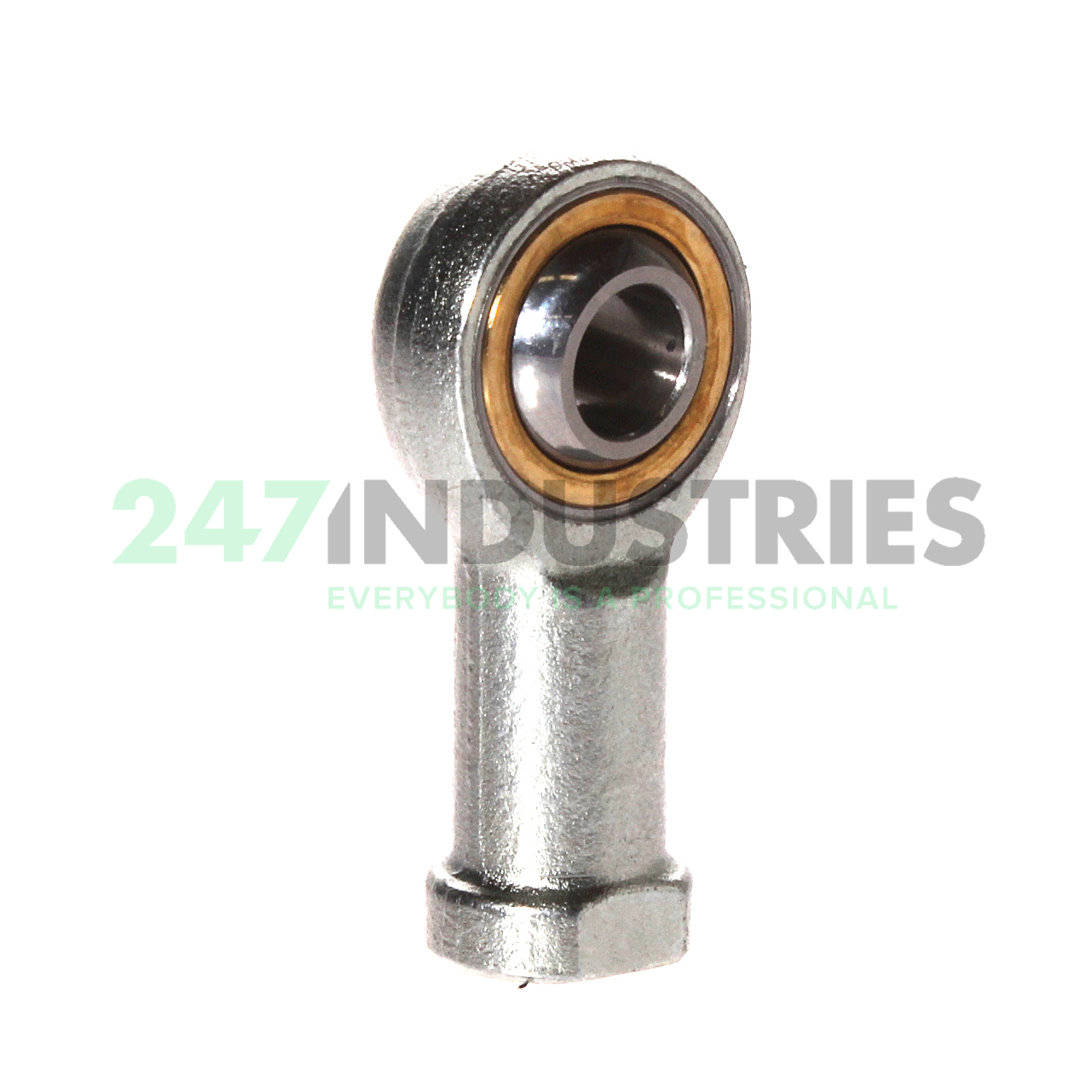

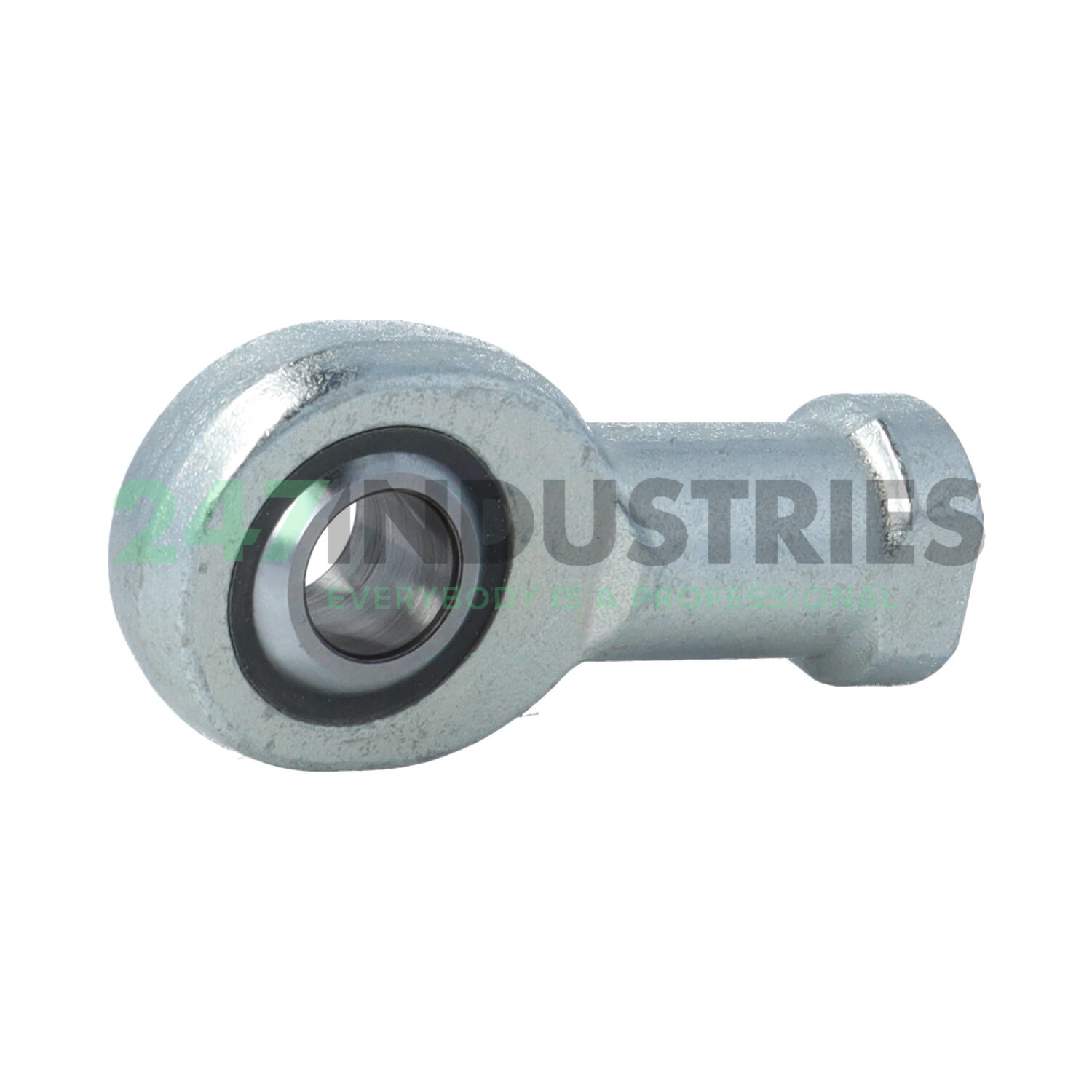

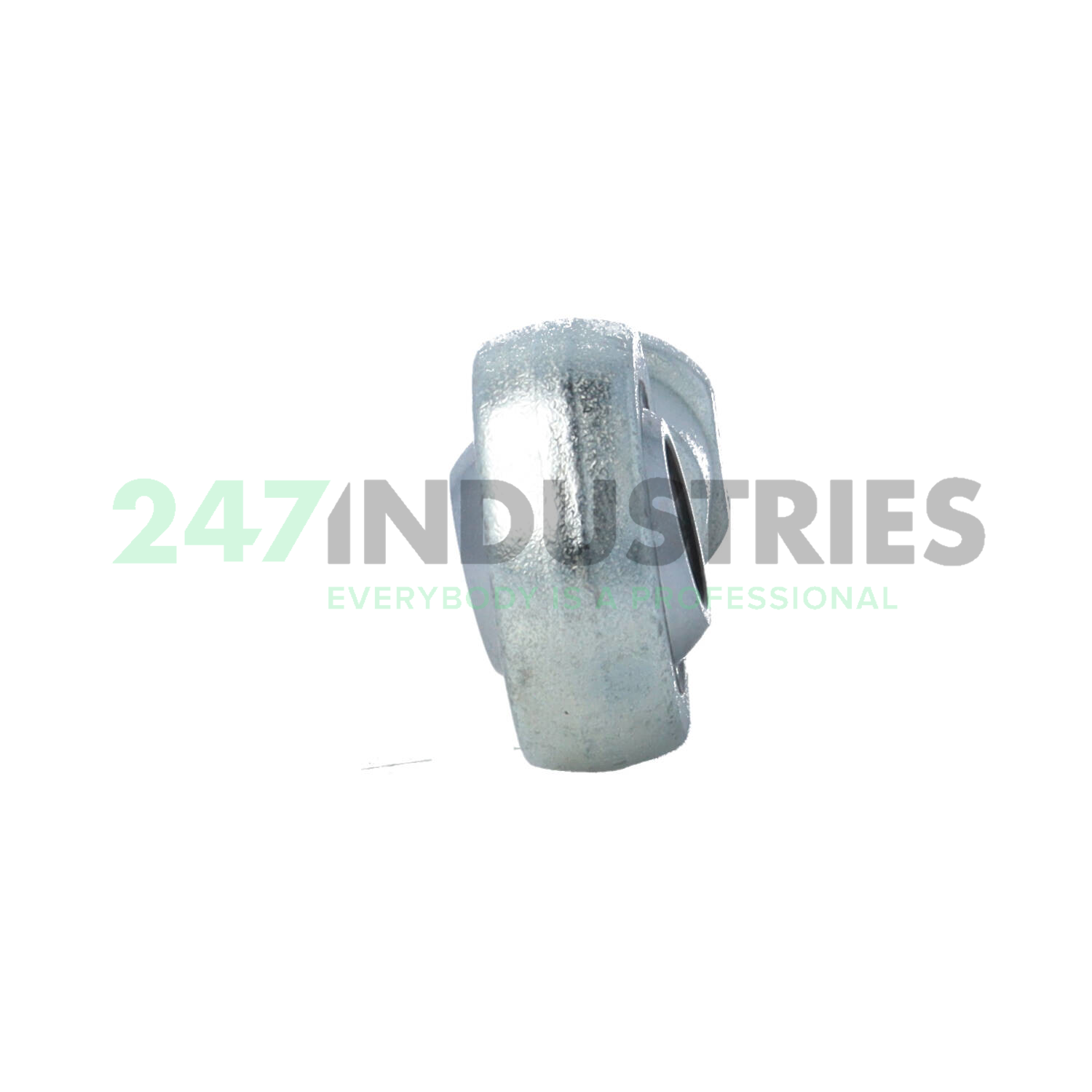

Rod end

Stock
not in stock
Brand Elges
Article number GIKPR12-PW-A Elges
Inside diameter 12mm
Outside diameter 33mm
Width 16mm
Product description

The GIKPR12-PW-A Elges is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKPR12-PW-A Elges has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Similar to: GIKPR12-PW-A Elges

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 33
  3. Width (B) MM 16
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2992
  6. Width (B) Inch 0.6299

Suffix description

  1. PW Sliding Contact Surface Steel/PTFE (Polyetrafluoroethylene) Bronze Film
  2. A Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Technical details

  1. Availability 0 pcs
  2. Brand Elges
  3. Item number GIKPR12-PW-A Elges

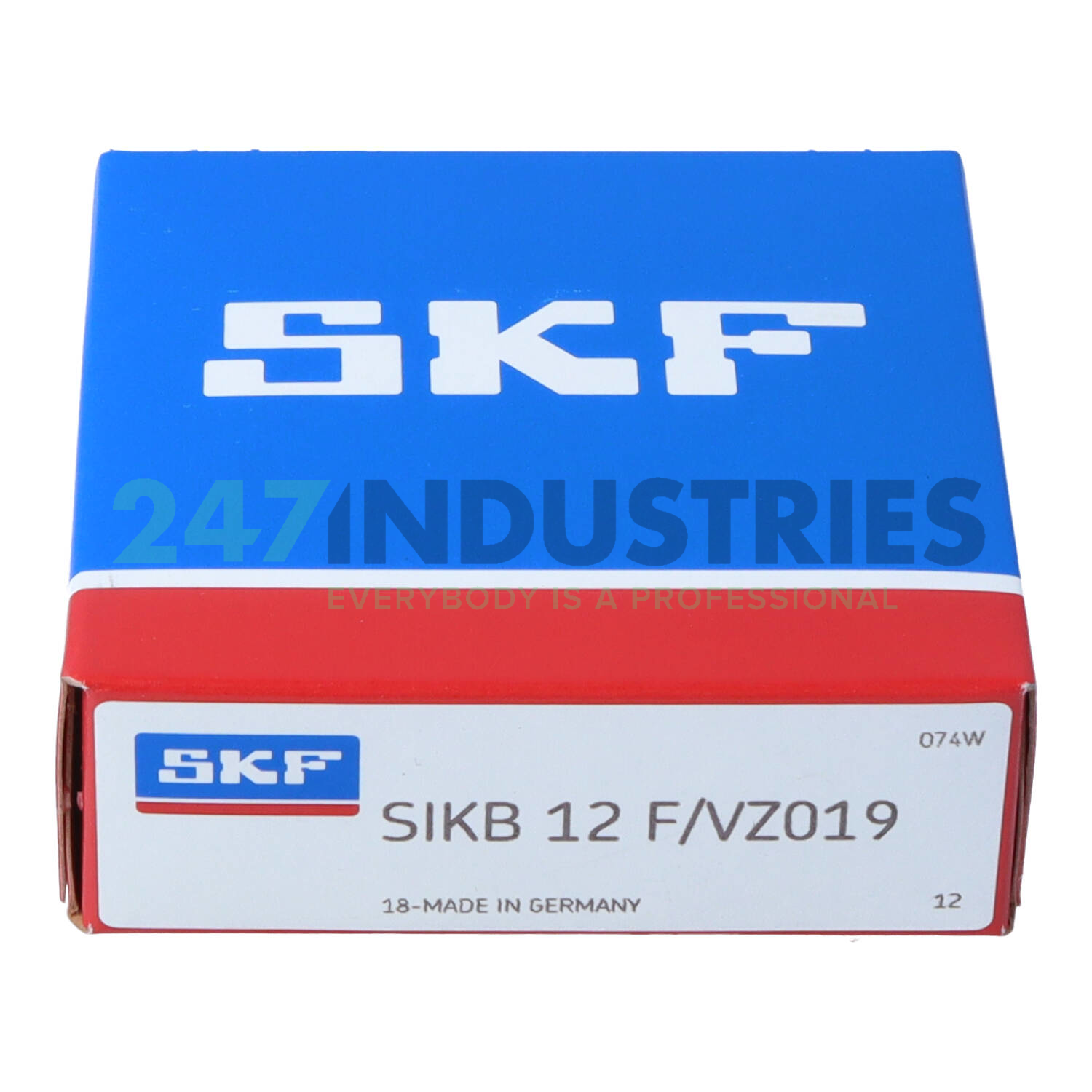

  4. Also known as SIKB12F/VZ019
    SIKB12VZ019
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.1185

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE
Show all details Show less
