GIKR25-PB Elges

Rod end

Stock
1 pc in stock and ready for shipment
Brand Elges
Article number GIKR25-PB Elges
Inside diameter 25mm
Outside diameter 60mm
Width 31mm
Product description

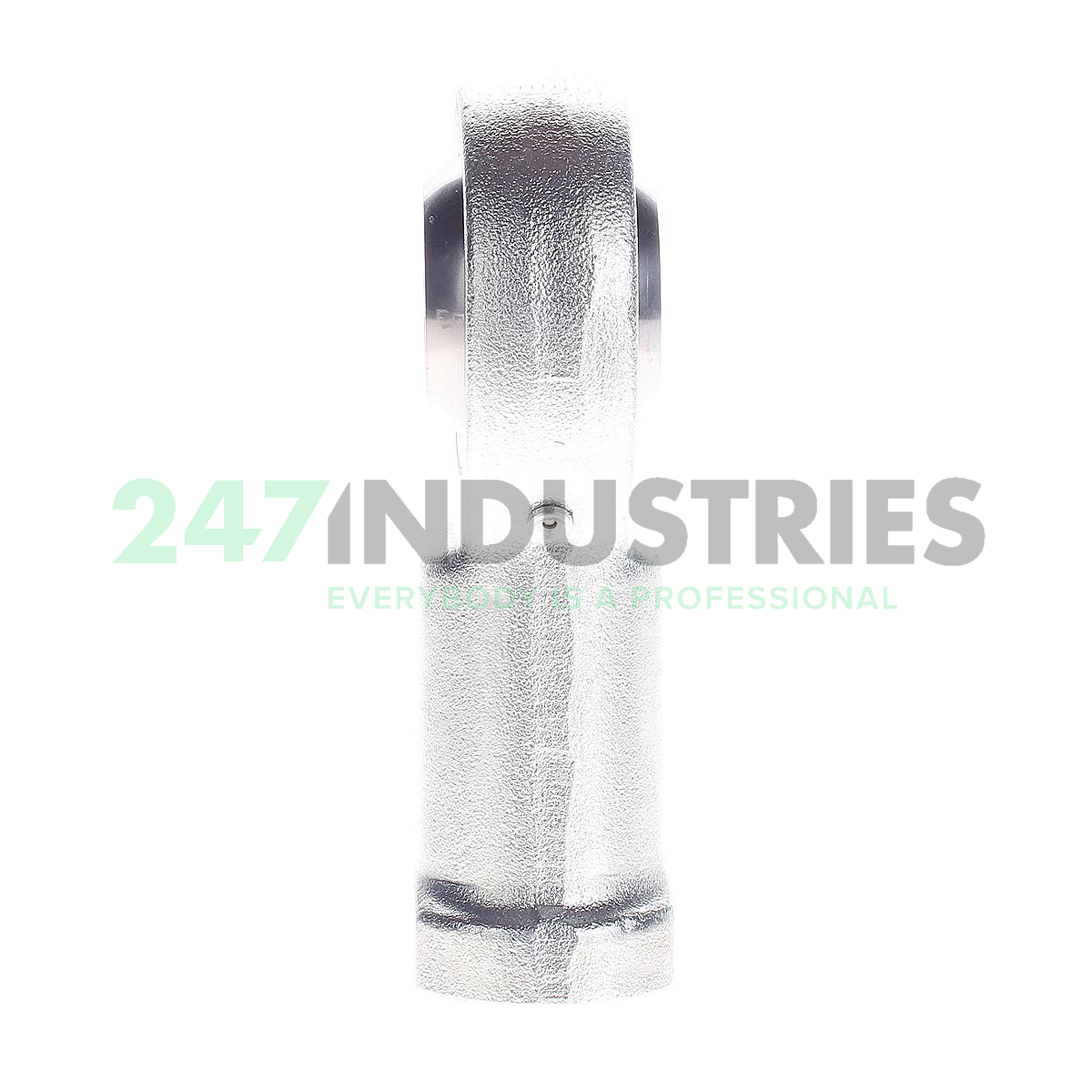

The GIKR25-PB Elges is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKR25-PB Elges has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: GIKR25-PB Elges

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 60
  3. Width (B) MM 31
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 2.3622
  6. Width (B) Inch 1.2205

Suffix description

  1. PB Sliding Contact Surface Steel/Bronze, To ISO 12 240-1, Dimension Series K, For Shafts From 5mm To 30mm

Technical details

  1. Availability 1 pc
  2. Brand Elges
  3. Item number GIKR25-PB Elges
  4. Also known as SIKAC25M
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.7345

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
Show all details Show less
