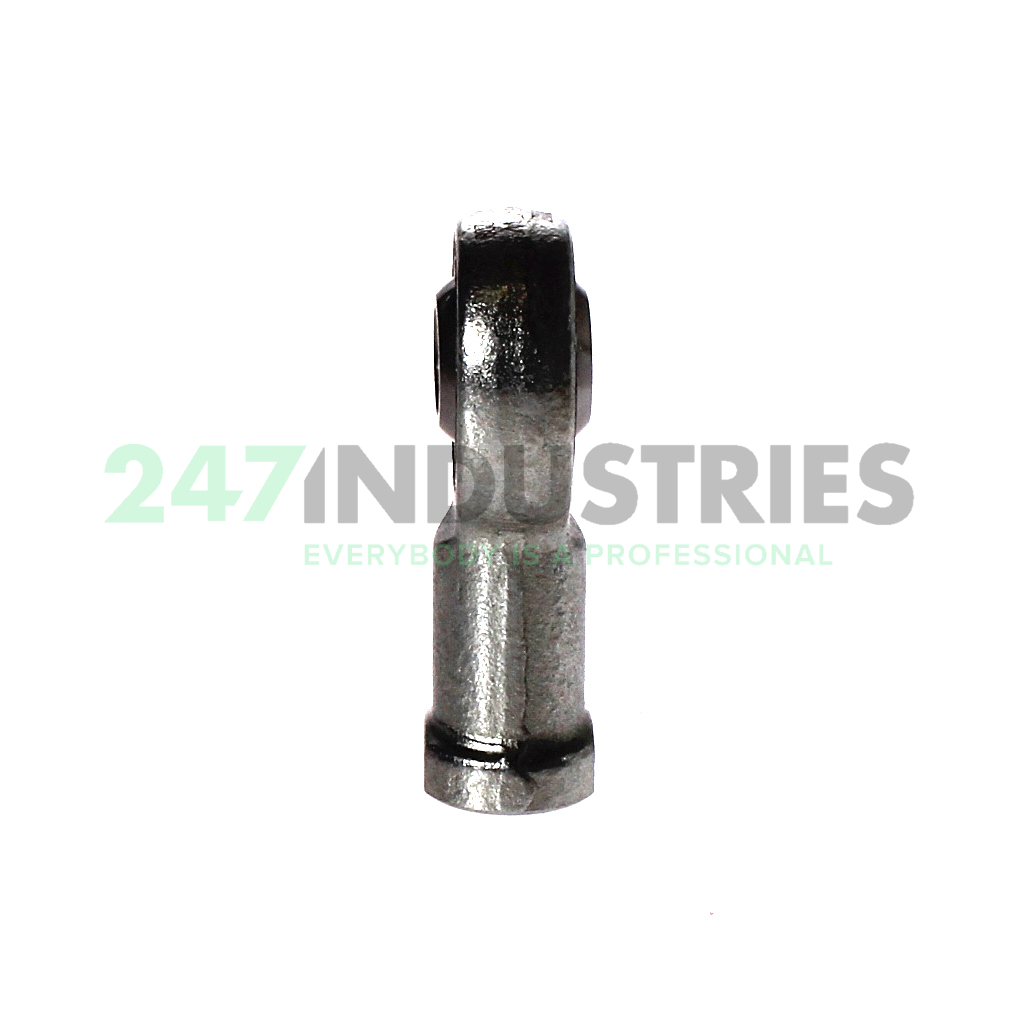

GIKR8-PW-A INA

Rod end

Stock
48 pcs in stock and ready for shipment
Brand INA
Article number GIKR8-PW-A INA
Inside diameter 8mm
Outside diameter 25mm
Width 12mm
Product description

The GIKR8-PW-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKR8-PW-A INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GIKR8-PW-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 8
  2. Outer (D) MM 25
  3. Width (B) MM 12
  4. Inner (d) Inch 0.315
  5. Outer (D) Inch 0.9843
  6. Width (B) Inch 0.4724
  7. Outside diameter bearing (D) mm 19
  8. Width inner ring (B) mm 12

Suffix description

  1. PW Sliding Contact Surface Steel/PTFE (Polyetrafluoroethylene) Bronze Film
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 48 pcs
  2. Brand INA
  3. Item number GIKR8-PW-A INA
  4. Also known as 0066351130000
  5. EAN 4012802526219
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.0461

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 13100
  2. Radial Dynamic Load Rating Cr (N) 12900
  3. Basic static load rating, radial (C 0r) "13100.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with internal thread, right hand thread, maintenance-free, sliding layer: PTFE film brass outer ring, DIN ISO 12240-4, dimension series K, type F, open design
