GIKRB22-PC INA

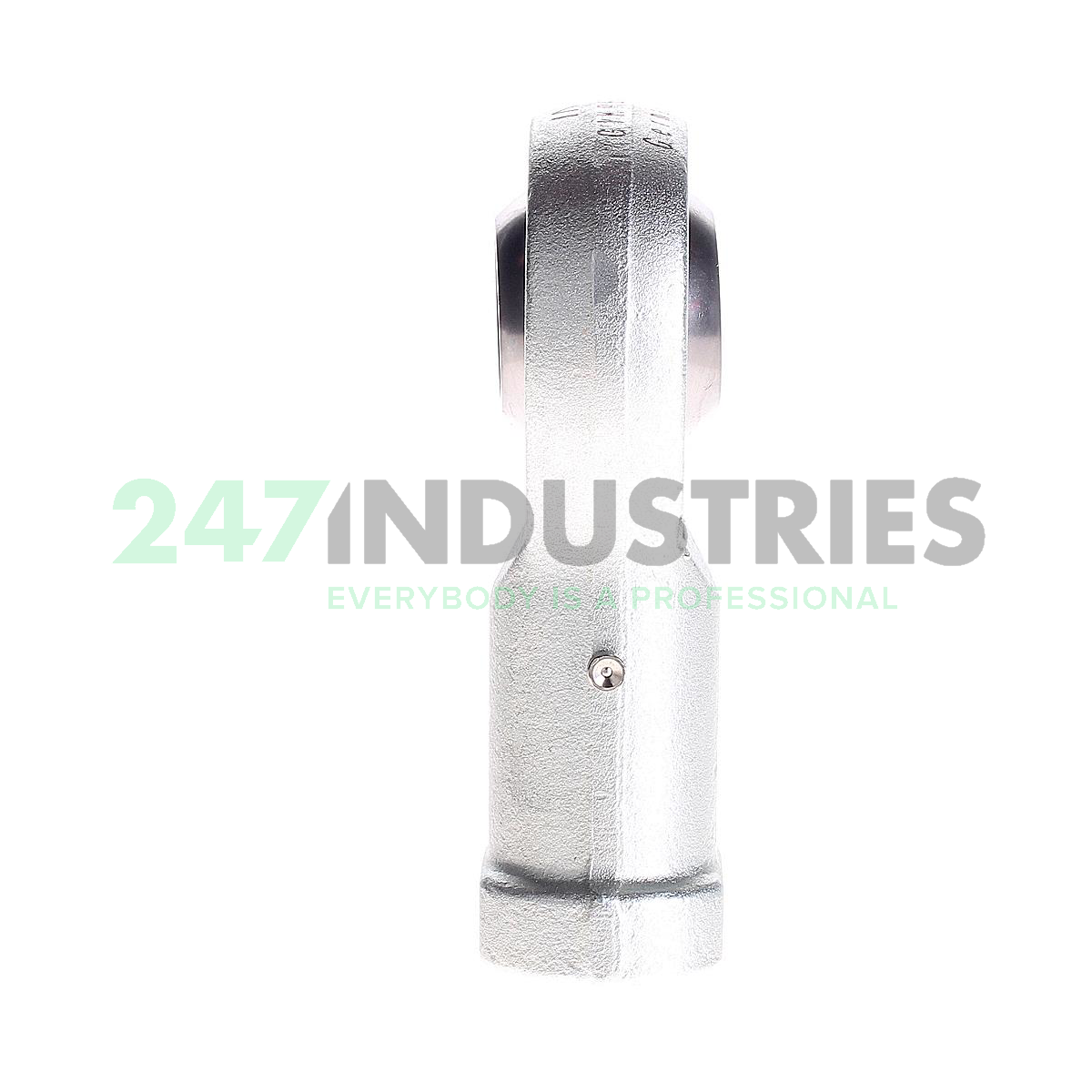

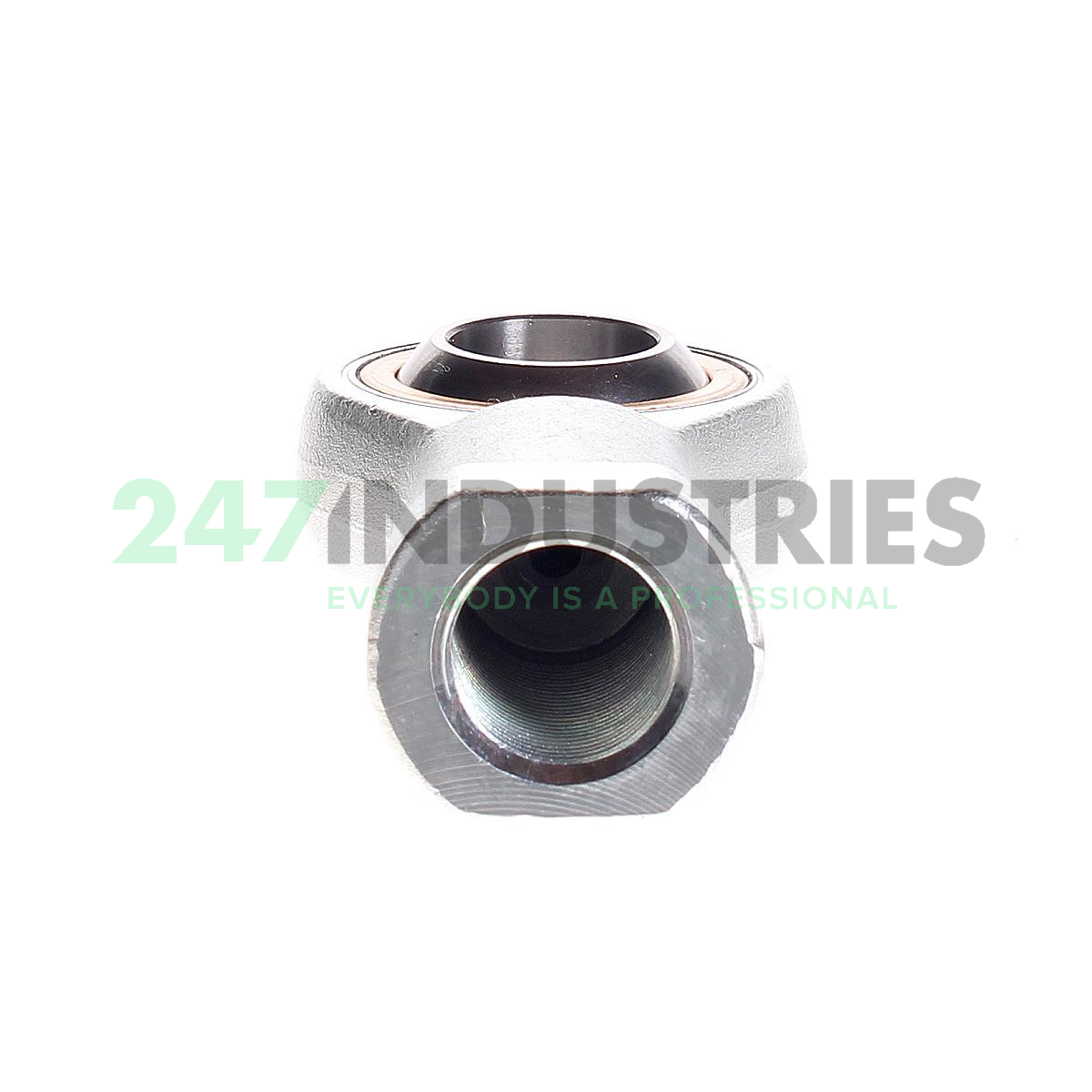

Rod end

Stock
22 pcs in stock and ready for shipment
Brand INA
Article number GIKRB22-PC INA
Inside diameter 22mm
Outside diameter 56mm
Width 28mm
Product description

The GIKRB22-PC INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKRB22-PC INA has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GIKRB22-PC INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 22
  2. Outer (D) MM 56
  3. Width (B) MM 28
  4. Inner (d) Inch 0.8661
  5. Outer (D) Inch 2.2047
  6. Width (B) Inch 1.1024

Suffix description

  1. PC Sliding Contact Surface Steel/Bronze, To ISO 12 240-1, Dimension Series K, For Shafts From 5mm To 30mm

Technical details

  1. Availability 22 pcs
  2. Brand INA
  3. Item number GIKRB22-PC INA
  4. Also known as 0849780310000
    GIKR22PB
    GIKR22-PB
    SIKAC22M
  5. EAN 4054364680022
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.5278

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze

Data from Schaeffler (medias)

  1. ECLASS number 23-05-01-05
  2. ECLASS2 number 23-05-01-05
