GIKSR5-PS INA

Rod end

Stock
16 pcs in stock and ready for shipment
Brand INA
Article number GIKSR5-PS INA
Inside diameter 5mm
Outside diameter 19mm
Width 8mm
Product description

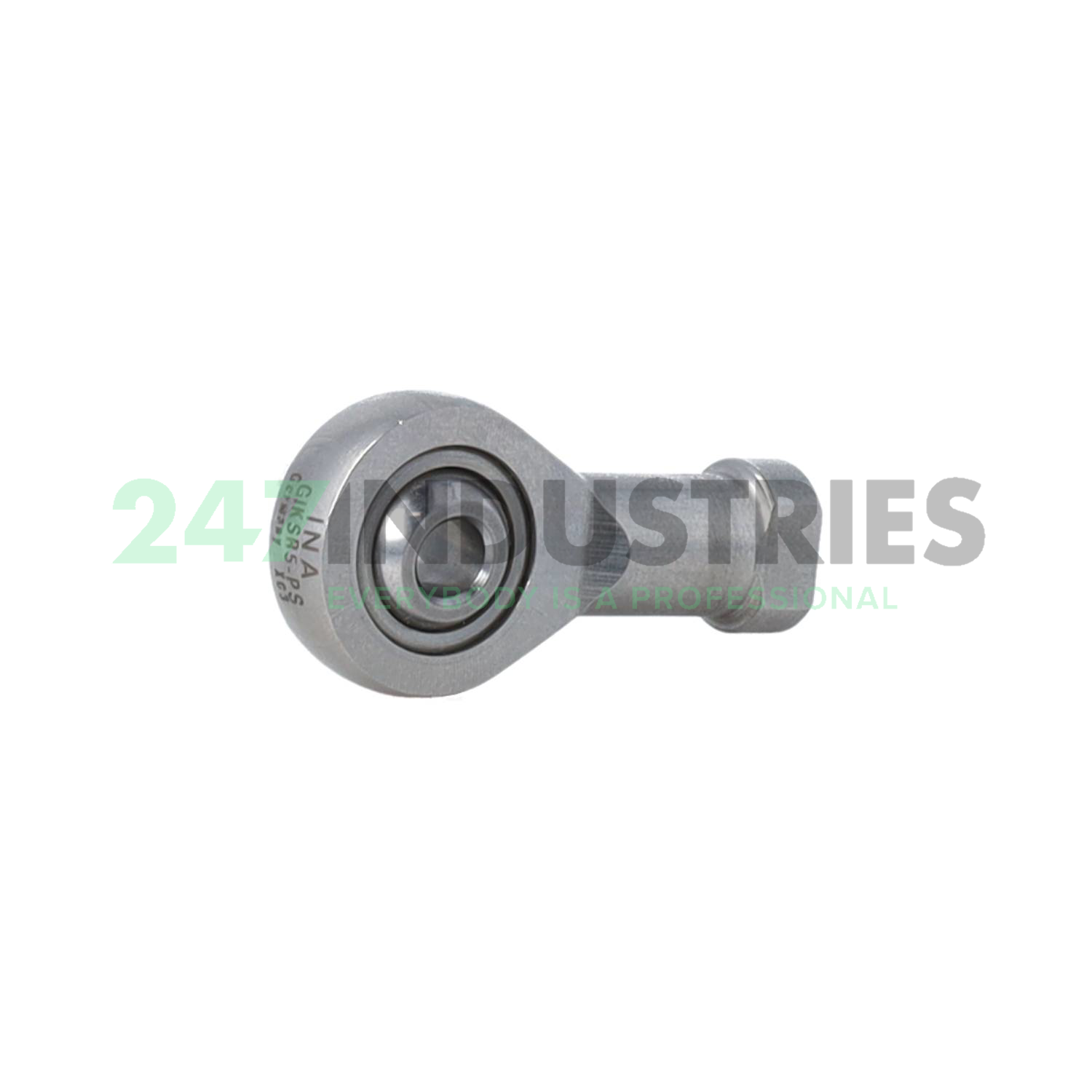

The GIKSR5-PS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKSR5-PS INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GIKSR5-PS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 5
  2. Outer (D) MM 19
  3. Width (B) MM 8
  4. Inner (d) Inch 0.1969
  5. Outer (D) Inch 0.748
  6. Width (B) Inch 0.315
  7. Outside diameter bearing (D) mm 13
  8. Width inner ring (B) mm 8

Suffix description

  1. PS Special Steel, Maintenance Free

Technical details

  1. Availability 16 pcs
  2. Brand INA
  3. Item number GIKSR5-PS INA
  4. Also known as 0594406600000
  5. EAN 4012802544893
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.017

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 3800
  2. Radial Dynamic Load Rating Cr (N) 6000
  3. Basic static load rating, radial (C 0r) "3800.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Corrosion-resistant rod end, with internal thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
