GIKSR6-PS INA

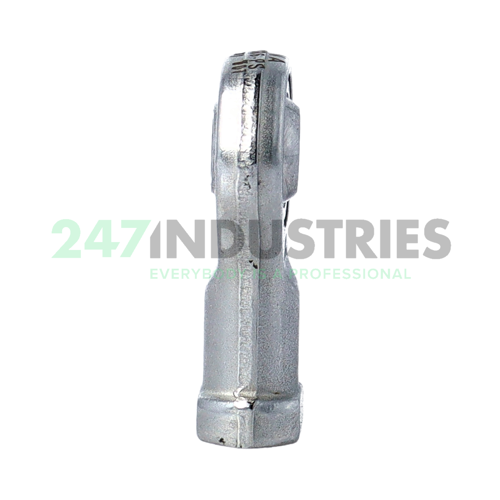

Rod end

Stock
79 pcs in stock and ready for shipment
Brand INA
Article number GIKSR6-PS INA
Inside diameter 6mm
Outside diameter 21mm
Width 9mm
Product description

The GIKSR6-PS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIKSR6-PS INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GIKSR6-PS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6
  2. Outer (D) MM 21
  3. Width (B) MM 9
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.8268
  6. Width (B) Inch 0.3543
  7. Outside diameter bearing (D) mm 16
  8. Width inner ring (B) mm 9

Suffix description

  1. PS Special Steel, Maintenance Free

Technical details

  1. Availability 79 pcs
  2. Brand INA
  3. Item number GIKSR6-PS INA
  4. Also known as 0594415930000
  5. EAN 4012802544954
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.025

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 3400
  2. Radial Dynamic Load Rating Cr (N) 7650
  3. Basic static load rating, radial (C 0r) "3400.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Corrosion-resistant rod end, with internal thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
