GIL35UK-2RS Elges

Rod end

Stock
1 pc available for shipment on Fri 29 Nov
Brand Elges
Article number GIL35UK-2RS Elges
Inside diameter 35mm
Outside diameter 82mm
Width 25mm
Product description

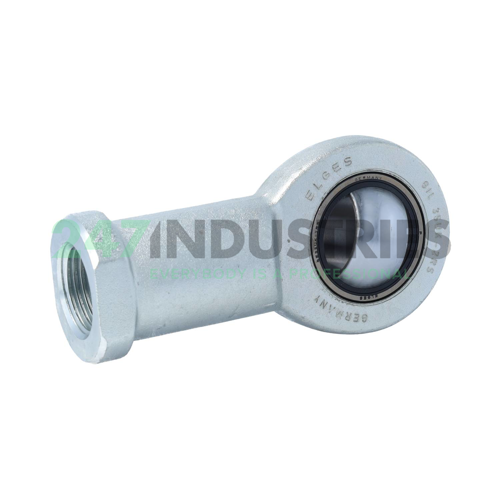

The GIL35UK-2RS Elges is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIL35UK-2RS Elges has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Similar to: GIL35UK-2RS Elges

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 82
  3. Width (B) MM 25
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.2283
  6. Width (B) Inch 0.9843

Suffix description

  1. UK Steel/PTFE Fabric
  2. 2RS Rubber Seals At Each Side Of The Bearing

Technical details

  1. Availability 1 pc on Fri 29 Nov
  2. Brand Elges
  3. Item number GIL35UK-2RS Elges
  4. Also known as SIL35TE-2RS
    SILA35TE-2RS
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 1.4

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on PTFE
