GIR40-DO-2RS INA

Rod end

Stock
11 pcs in stock and ready for shipment
Brand INA
Article number GIR40-DO-2RS INA
Outside diameter 94mm
Width 28mm
Product description

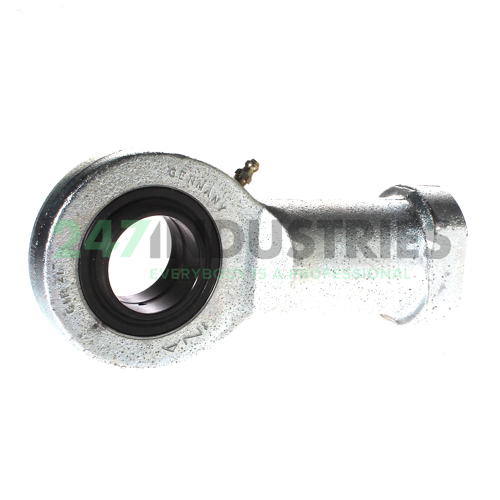

The GIR40-DO-2RS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIR40-DO-2RS INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GIR40-DO-2RS INA

Loading similair products

Product specifications

All dimensions

  1. Outer (D) MM 94
  2. Width (B) MM 28
  3. Outer (D) Inch 3.7008
  4. Width (B) Inch 1.1024
  5. Outside diameter bearing (D) mm 62
  6. Width inner ring (B) mm 28

Suffix description

  1. DO Sliding Contact Surface Steel/Steel & Inner And Outer Ring Hardened
  2. 2RS Lip Seals On Both Sides

Technical details

  1. Availability 11 pcs
  2. Brand INA
  3. Item number GIR40-DO-2RS INA
  4. Also known as 0066355980000
    GIR40ES-2RS
  5. EAN 4012802526967
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 2.2

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 194000
  2. Radial Dynamic Load Rating Cr (N) 99100
  3. Basic static load rating, radial (C 0r) "194000.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, sealed
