GLCTE30-TV-VA-FD INA

Housing unit

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number GLCTE30-TV-VA-FD INA
Inside diameter 30mm
Outside diameter 84mm
Width 38,1mm
Product description

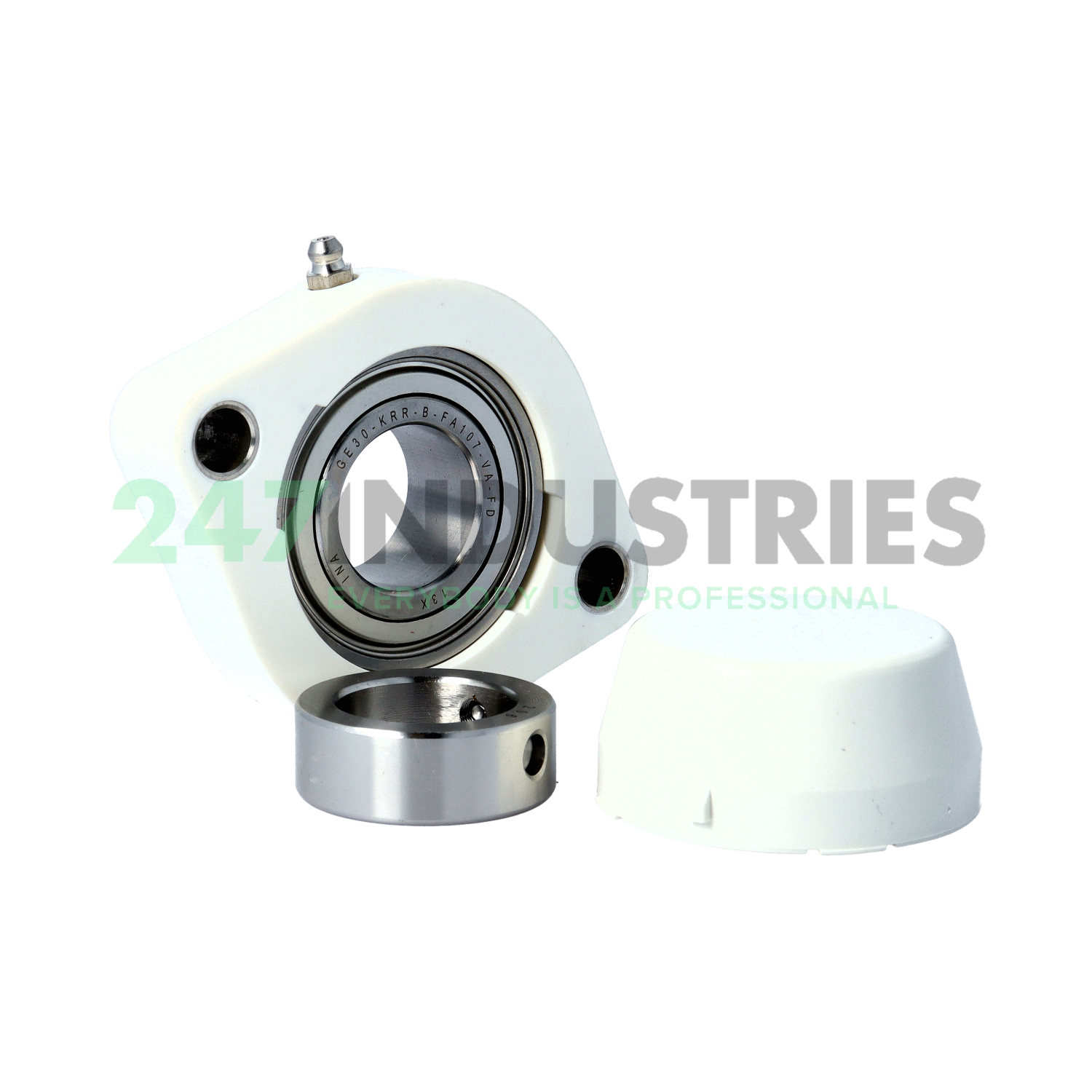

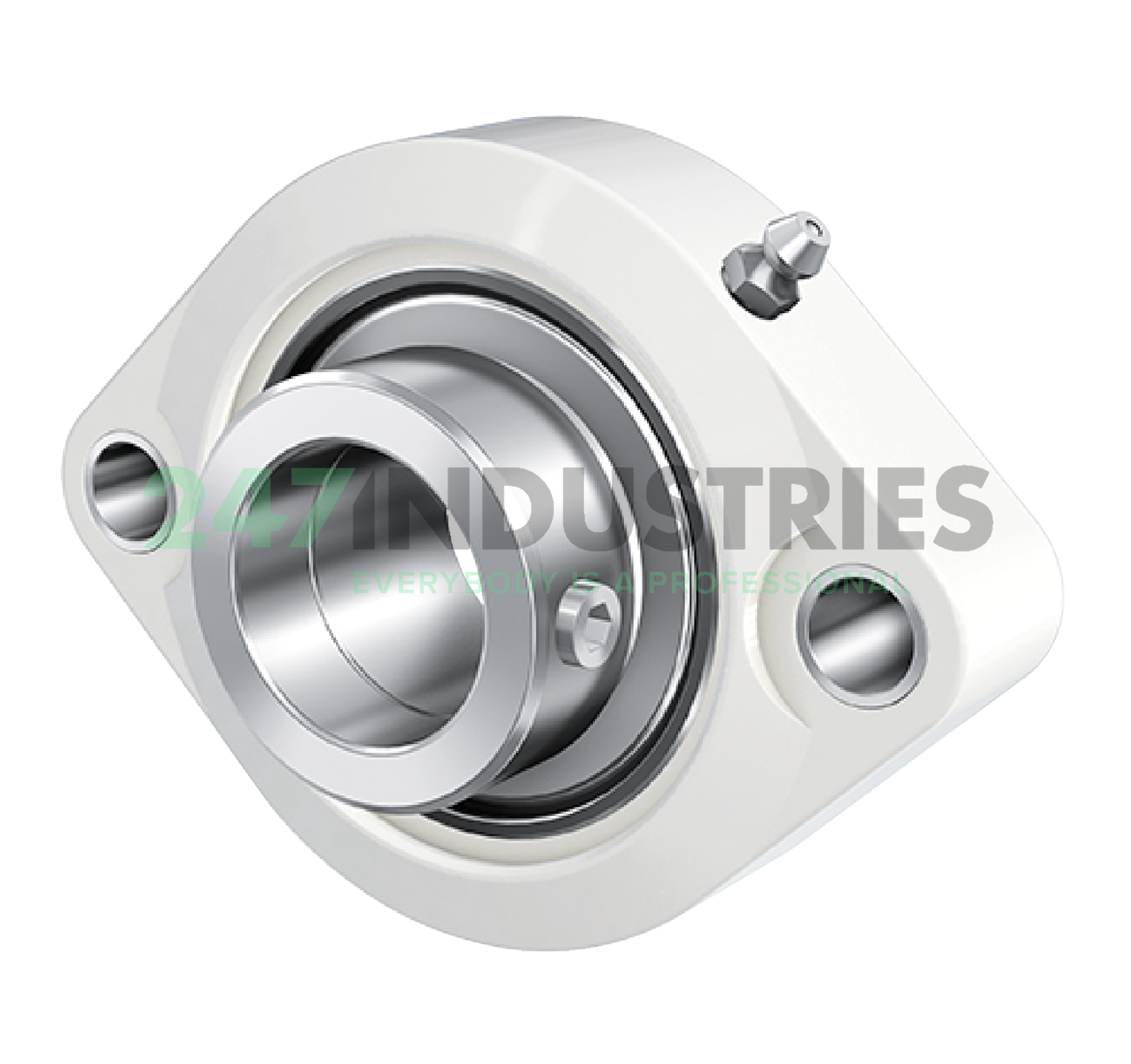

The GLCTE30-TV-VA-FD INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GLCTE30-TV-VA-FD INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 84
  3. Width (B) MM 38,1
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 3.3071
  6. Width (B) Inch 1.5
  7. Flange width (L) mm 84
  8. Height flange (H) mm 112
  9. Total height unit (U) mm 39,1

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. FD Food Compatible Grease-Fill

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number GLCTE30-TV-VA-FD INA
  4. Also known as 0964201110000
  5. EAN 4064327628060
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.4

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Food Grease
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 11310
  2. Load carrying capacity (housing) (C 0r G) 12000
