GLCTE40-TV-FA125.5 INA

€ 94,82 ex VAT
€ 114,73 incl. VAT
€ 114,73 incl. VAT
€ 94,82 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

GLCTE40-TV-FA125.5 INA

Housing unit

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number GLCTE40-TV-FA125.5 INA
Inside diameter 40mm
Product description

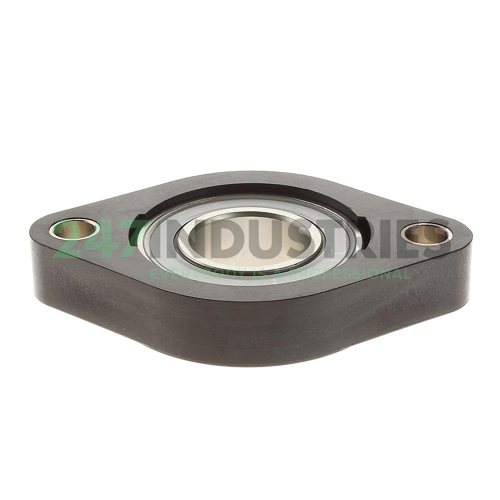

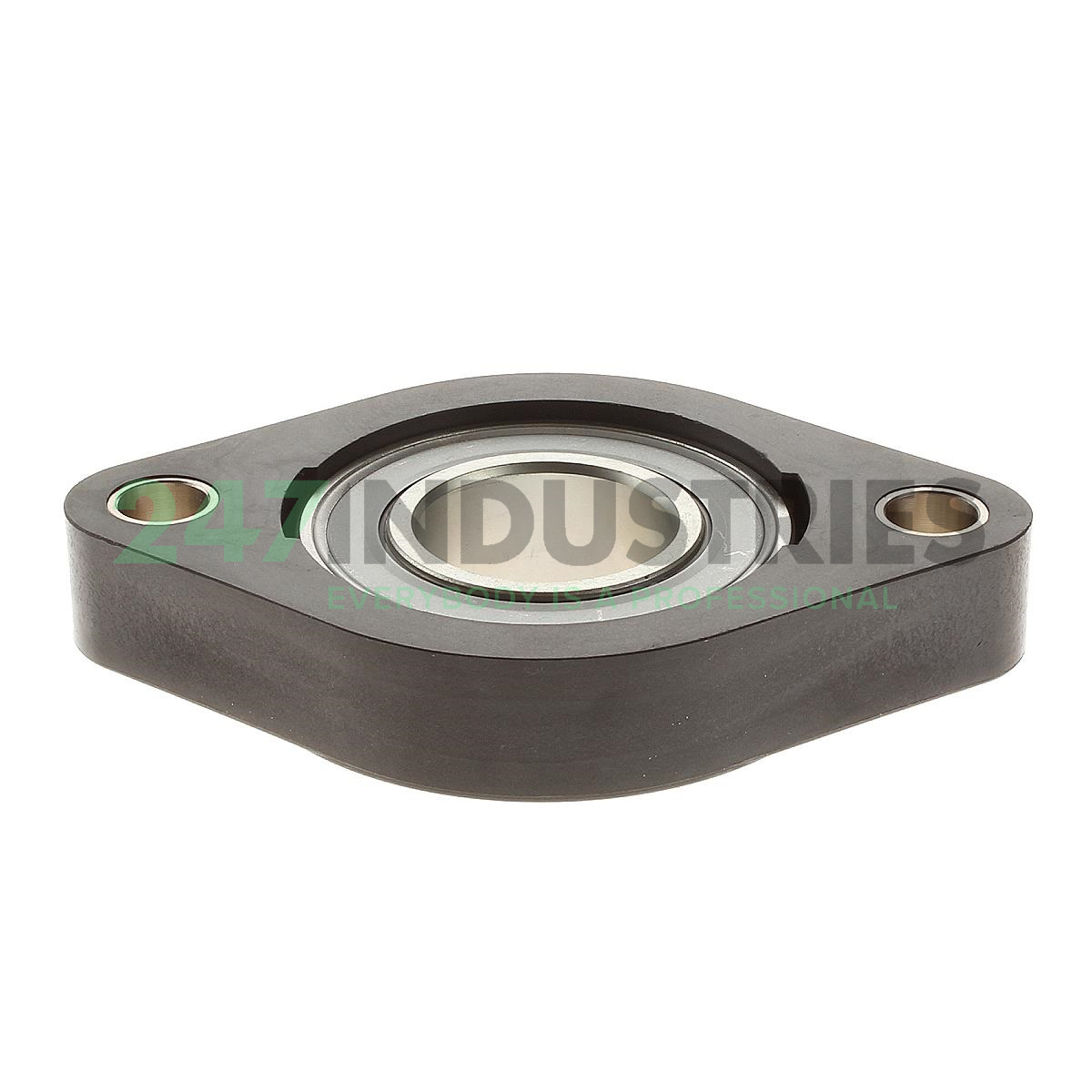

The GLCTE40-TV-FA125.5 INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GLCTE40-TV-FA125.5 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Inner (d) Inch 1.5748
  3. Flange width (L) mm 100
  4. Height flange (H) mm 150
  5. Total height unit (U) mm 46,3

Suffix description

  1. TV Plastic Housing
  2. FA125,5 With Corrotect® Coating, Protected Against Corrosion

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number GLCTE40-TV-FA125.5 INA
  4. Also known as 0574655250000
  5. EAN 4012802830422
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.86

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment With Corrotect® Coating

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "19800.0000"
  4. Load carrying capacity (housing) (C 0r G) 12800
  5. ECLASS number 23-05-16-02
  6. ECLASS2 number 23-05-16-02
  7. Medias description Flanged housing unit GLCTE..-TV

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
