GRA30-XL INA

€ 35,28 ex VAT
€ 42,69 incl. VAT
€ 42,69 incl. VAT
€ 35,28 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

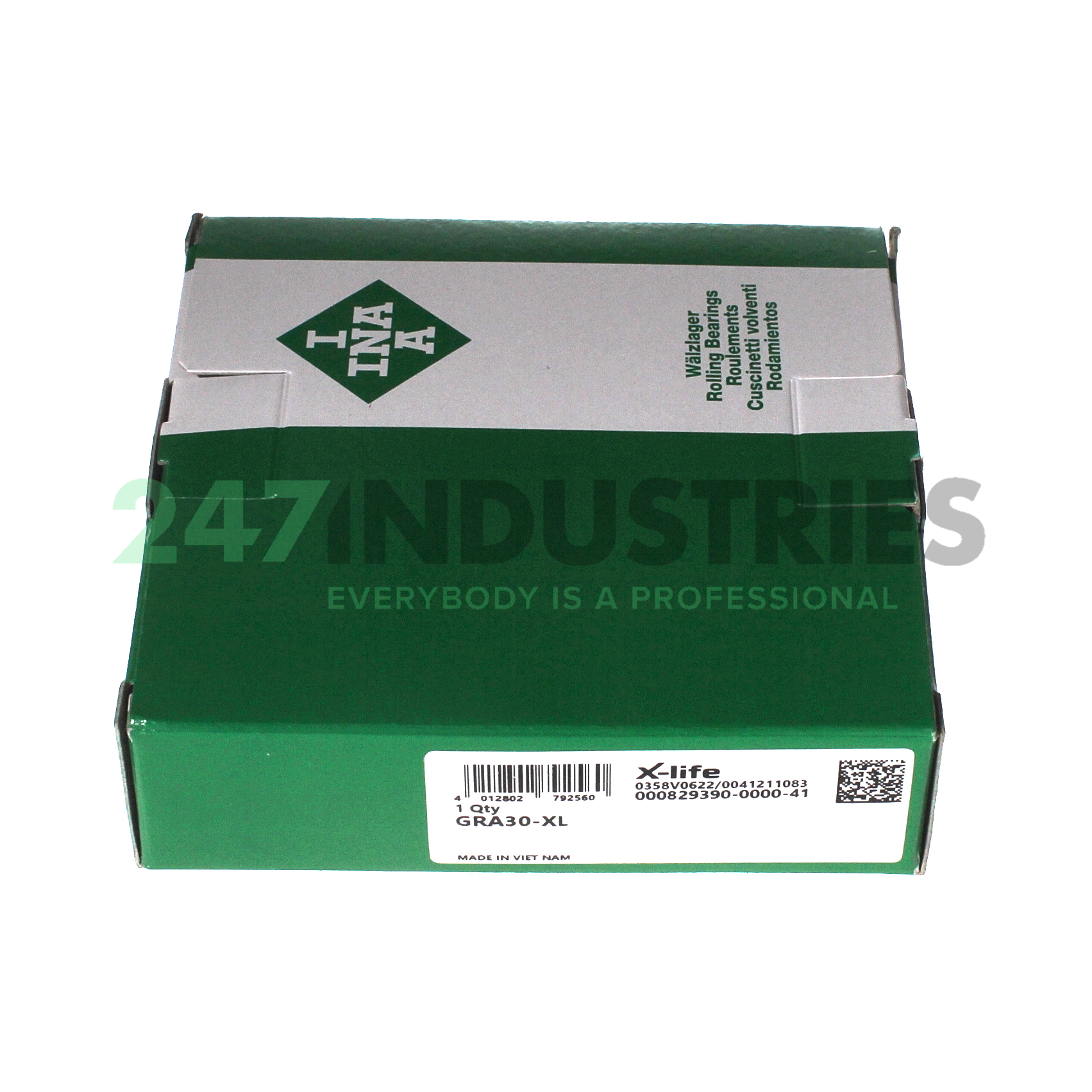

GRA30-XL INA

Housing unit

Stock
7 pcs in stock and ready for shipment
Brand INA
Article number GRA30-XL INA
Inside diameter 30mm
Outside diameter 112,7mm
Width 35,7mm
Product description

The GRA30-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GRA30-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 112,7
  3. Width (B) MM 35,7
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 4.437
  6. Width (B) Inch 1.4055
  7. Height flange (H) mm 112,7
  8. Locking collar total width (B 1) mm 35,8
  9. Total height unit (U) mm 29,2

Suffix description

  1. XL X-Life

Technical details

  1. Availability 7 pcs
  2. Brand INA
  3. Item number GRA30-XL INA
  4. Also known as 0008293900000
    GRA30
  5. EAN 4012802792560
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.61

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Basic static load rating, radial (C 0r) "11300.0000"
  4. Load carrying capacity (housing) (C 0r G) 5000
  5. ECLASS number 23-05-16-02
  6. ECLASS2 number 23-05-16-02
  7. Medias description Housing units GRA, three/four-bolt flanged housing units, sheet steel, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
