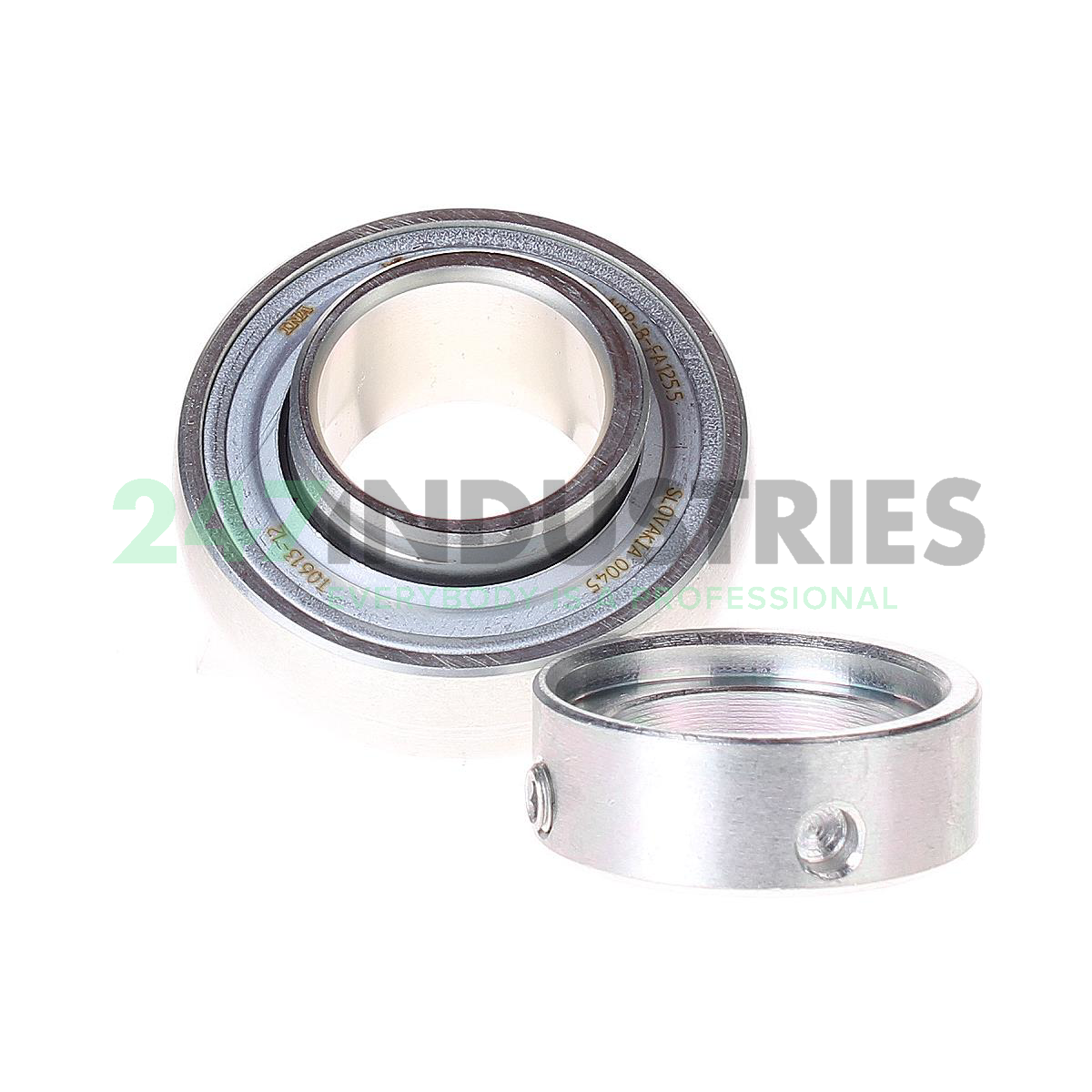

GRAE25-XL-NPP-B-FA125.5 INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 31
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 1.2205
7. Outside diameter (D SP) mm 52
8. Width (b) mm 21,4
9. Locking collar total width (B 1) mm 31

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA125,5 With Corrotect® Coating, Protected Against Corrosion

Technical details

1. Availability 253 pcs
2. Brand INA
3. Item number GRAE25-XL-NPP-B-FA125.5 INA
4. Also known as 0028280220000
   GRAE25-NPP-B-FA125.5
   YET205

5. EAN 4012802813128
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment With Corrotect® Coating

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 7800
