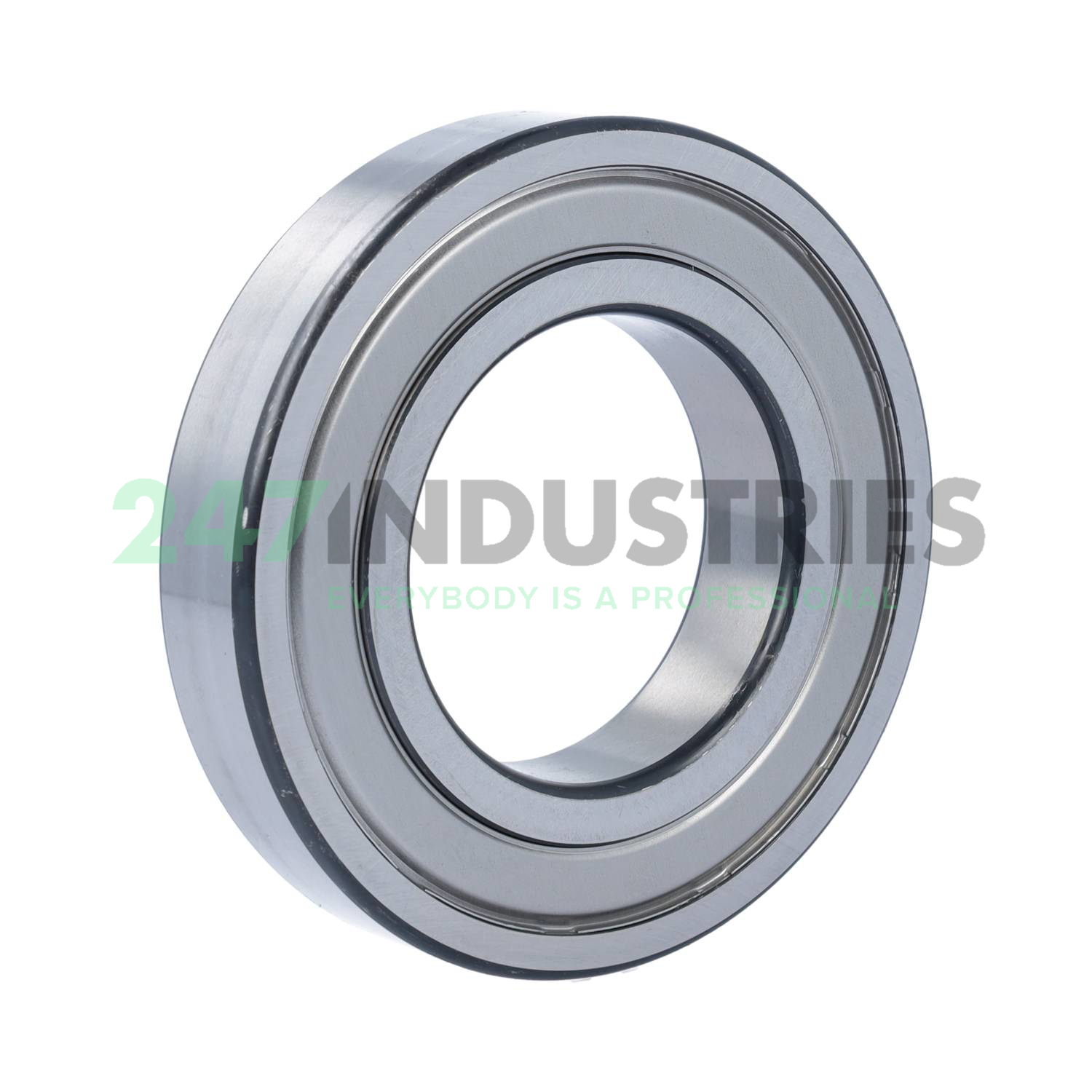

HC6213-2Z-L038-C3 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 23
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L038 Arcanol Grease Medium Temperature -25ºC/+130ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number HC6213-2Z-L038-C3 FAG
4. Also known as 0899846500030

5. EAN 4054369712117
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.886

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
