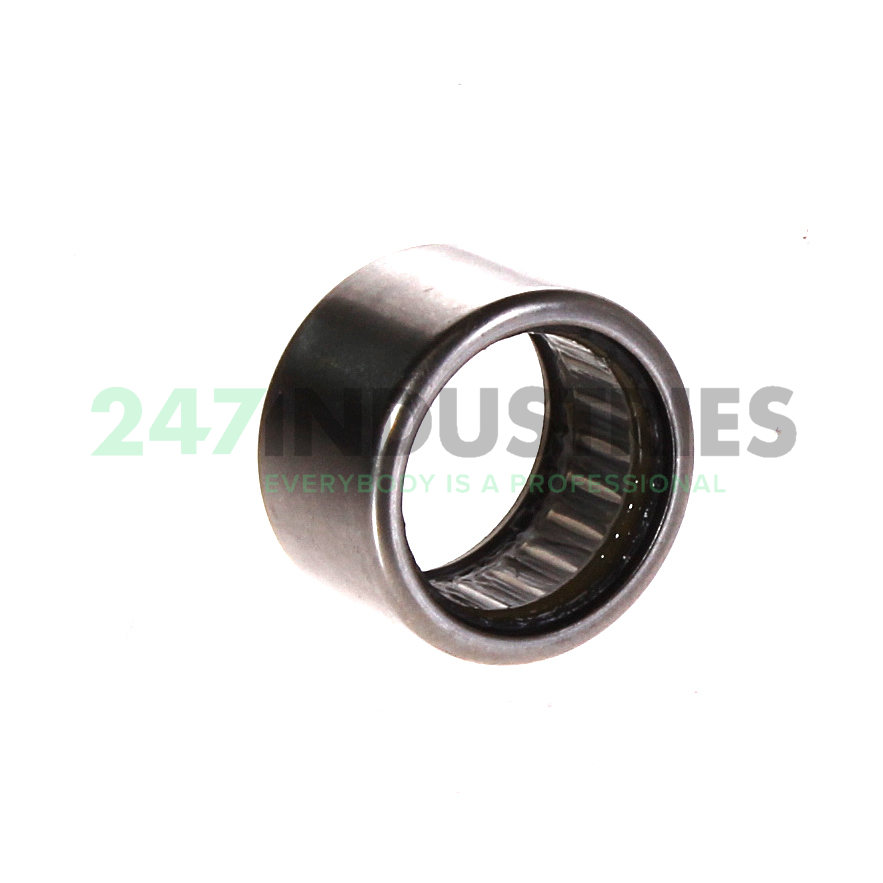

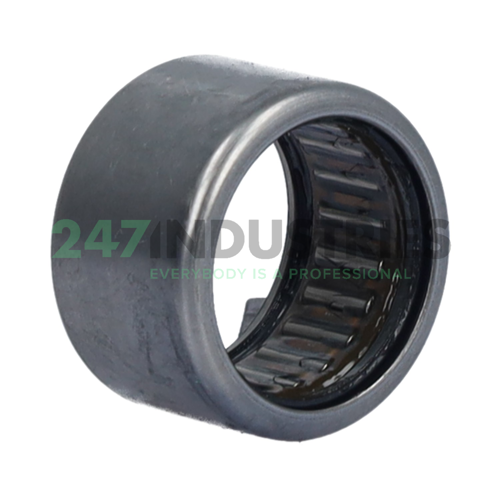

HK2016-2RS-L271 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 26
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 20

Suffix description

1. 2RS Lip Seals On Both Sides
2. L271 Anti Wear Protection Grease

Technical details

1. Availability 142 pcs
2. Brand INA
3. Item number HK2016-2RS-L271 INA
4. Also known as 0007009830968
   HK2016-2RS

5. EAN 4047643187039
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.019

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 12100
2. Radial Dynamic Load Rating Cr (N) 8600
3. Basic static load rating, radial (C 0r) "12100.0000"
4. Limiting speed (n G) 7600
5. Limiting speed for grease lubrication (n G Grease) 7600
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias description Drawn cup needle roller bearings with open ends HK..-2RS, lip seals on both sides, to DIN 618

Downloads and links

1. Link to manufacturer Link to manufacturer
