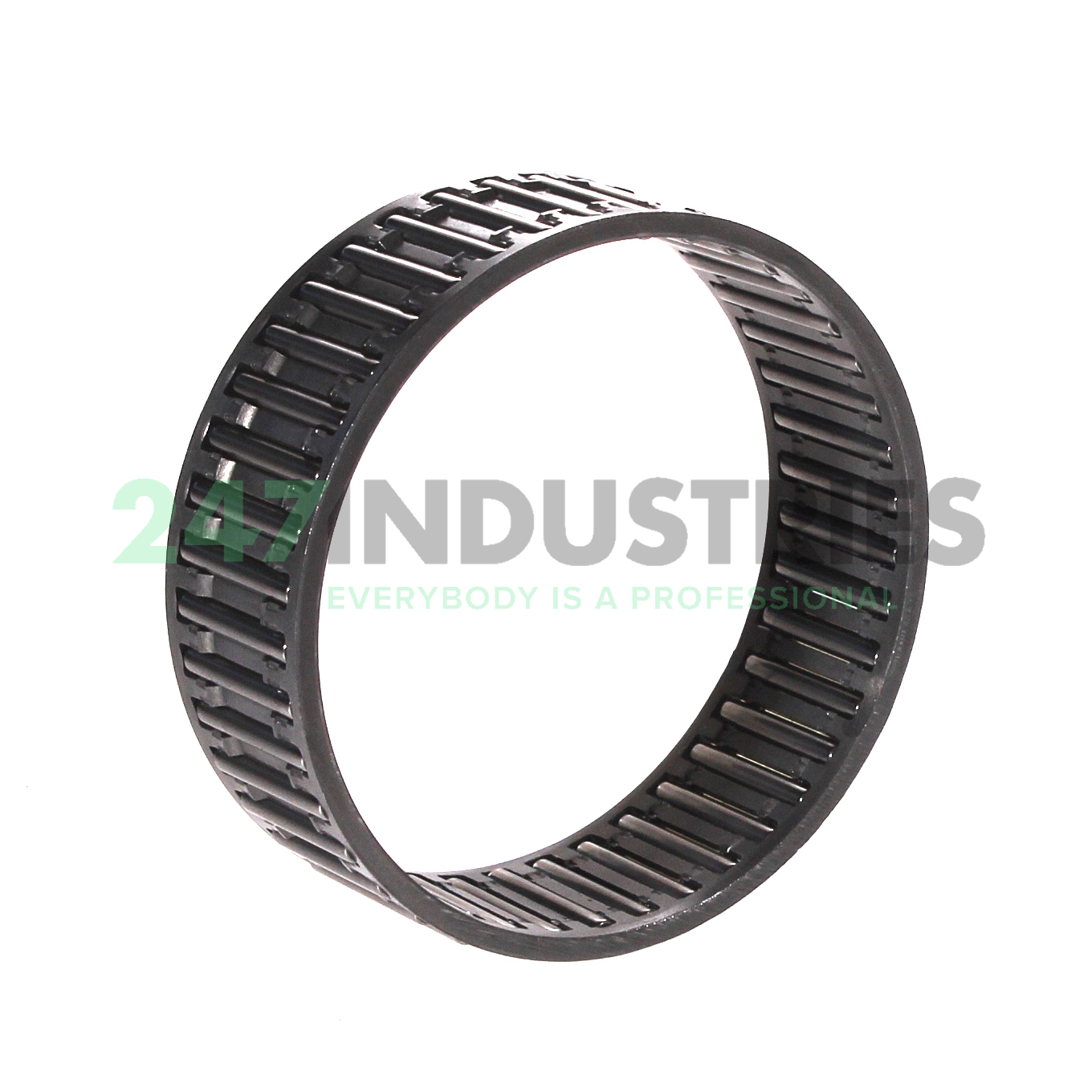

K55X60X20-B/0-7 INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 60
3. Width (B) MM 20
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 2.3622
6. Width (B) Inch 0.7874
7. Outside diameter of needle roller complement (E w) mm 60
8. Width (B c) mm 20

Suffix description

1. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-7 Micron - Needle Sort

Technical details

1. Availability 104 pcs
2. Brand INA
3. Item number K55X60X20-B/0-7 INA
4. Also known as 0006214636063

5. EAN 4012802046106
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.043

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 66000
2. Radial Dynamic Load Rating Cr (N) 28500
3. Basic static load rating, radial (C 0r) "66000.0000"
4. Limiting speed (n G) 8500
5. Reference speed (n ϑr) 5100
6. ECLASS number 23-05-09-04
7. ECLASS2 number 23-05-09-04
8. Medias description Needle roller cage assembly K, single row
