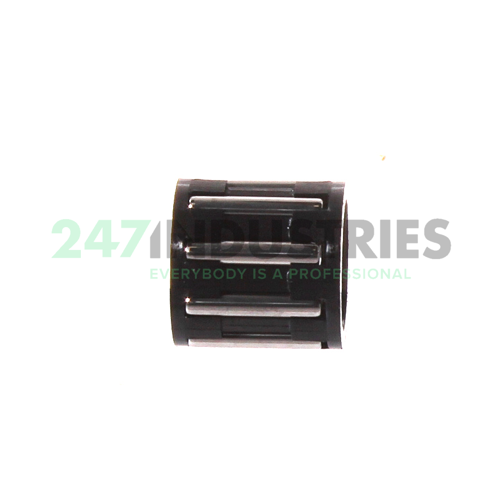

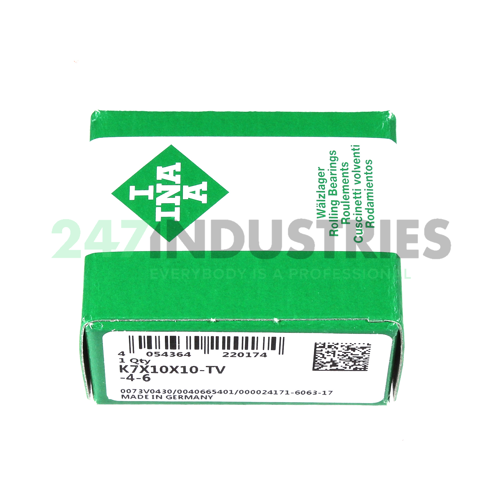

K7X10X10-TV/-4-6 INA

All dimensions

1. Inner (d) MM 7
2. Outer (D) MM 10
3. Width (B) MM 10
4. Inner (d) Inch 0.2756
5. Outer (D) Inch 0.3937
6. Width (B) Inch 0.3937
7. Outside diameter of needle roller complement (E w) mm 10
8. Width (B c) mm 10

Suffix description

1. TV Polyamide Cage
2. /-4-6 Micron - Needle Sort

Technical details

1. Availability 1,581 pcs
2. Brand INA
3. Item number K7X10X10-TV/-4-6 INA
4. Also known as 0000241710065

5. EAN 4054369215878
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.001

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3600
2. Radial Dynamic Load Rating Cr (N) 3650
3. Basic static load rating, radial (C 0r) "3600.0000"
4. Limiting speed (n G) 34500
5. Reference speed (n ϑr) 35000
6. ECLASS number 23-05-09-04
7. ECLASS2 number 23-05-09-04
8. Medias description Needle roller cage assembly K..-TV, single row

Downloads and links

1. Link to manufacturer Link to manufacturer
